AS-MSK-T-13: Benchtop Cutter for Lithium Battery Reference Electrodes

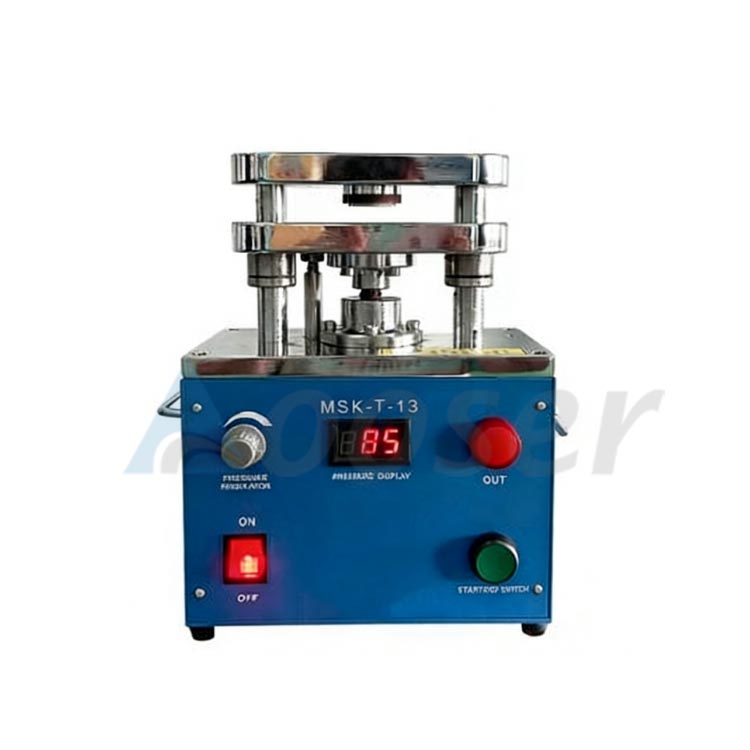

MSK-T-13 is a benchtop motorized ring cutter to punch Ø26×Ø19 mm lithium rings. The as-cut lithium rings is compatible with a three-electrode split test cell as a reference electrode. Thanks to its modular design, it can also punch a Ø15×Ø8 mm ring of cathode materials for a 3-electrode split coin cell via an optional die.

Core functions and design advantages

MSK-T-13 is a pressure controlled punching machine driven by a motor, mainly used for cutting materials such as lithium, aluminum, copper foil, etc. in glove boxes to make discs or rectangular pieces. Its biggest design highlight is:

Addressing the pain point of hydraulic oil leakage: By adopting electric pressure control, it fundamentally avoids the oil leakage problem that may occur when traditional hydraulic equipment is used in glove boxes, ensuring a clean and safe environment inside the box.

Suitable for glove box operation: The device is compact in size (270 * 130 * 300mm) and weighs 12KG, making it easy to pass through the transition compartment of the glove box. It can be operated directly in an inert gas protected environment.

Flexible and customizable molds: Supports various cutting molds such as circular, square, and circular, and the mold size can be customized. A single template can also arrange multiple sets of small-sized molds to achieve simultaneous cutting of multiple samples; The standard size of the template is 83 * 60mm, and all molds are designed within this size range to meet the cutting requirements of different experimental samples.

Safe and convenient operation: Equipped with a 24V DC deceleration motor (with a power of 15W) and a 110-240V AC wide voltage input (50/60Hz), no additional certification is required for operation, ensuring high safety; The device is designed for integration and can be used simply by connecting the power supply. It comes with built-in English operating software and a complete English user manual, making it easy to get started.

Applicable cutting materials and shapes

By selecting different cutting molds, lithium foil, aluminum foil, and copper foil can be cut into circular disks, rectangular thin sheets, and circular sheets. It is the core equipment for producing electrode samples, button battery accessories, etc. in lithium battery laboratory research and development, and is suitable for sample preparation needs in lithium battery small and pilot stages.

Summary of Main Features

Precise pressure control: Through a digital controller, the cutting pressure can be accurately set and displayed to ensure sample consistency and process repeatability.

Mold height customization: Different diameters of circular, annular, or square cutting molds can be customized within the template size range according to user needs, and even multi-mode templates can be made to improve efficiency.

Safe and convenient operation: Using a 24V low-voltage motor ensures safe operation without the need for special certification. Easy to operate, just connect to the power supply to work, and provide English manual and online technical support.

Typical application scenarios

MSK-T-13 is an ideal tool for lithium-ion battery laboratories or research and development centers, especially suitable for electrode sheet punching processes that require strict cleanliness requirements and need to be carried out in glove boxes.
