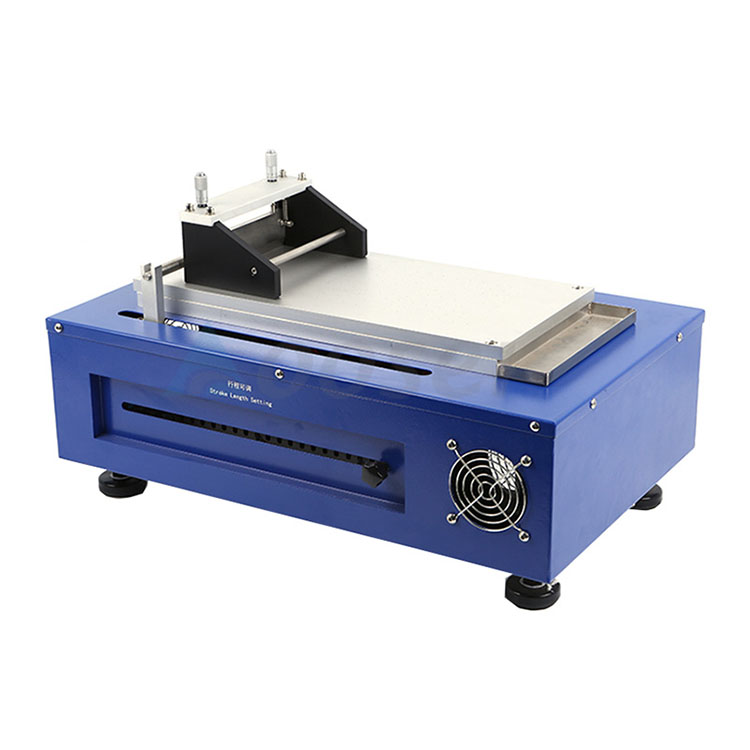

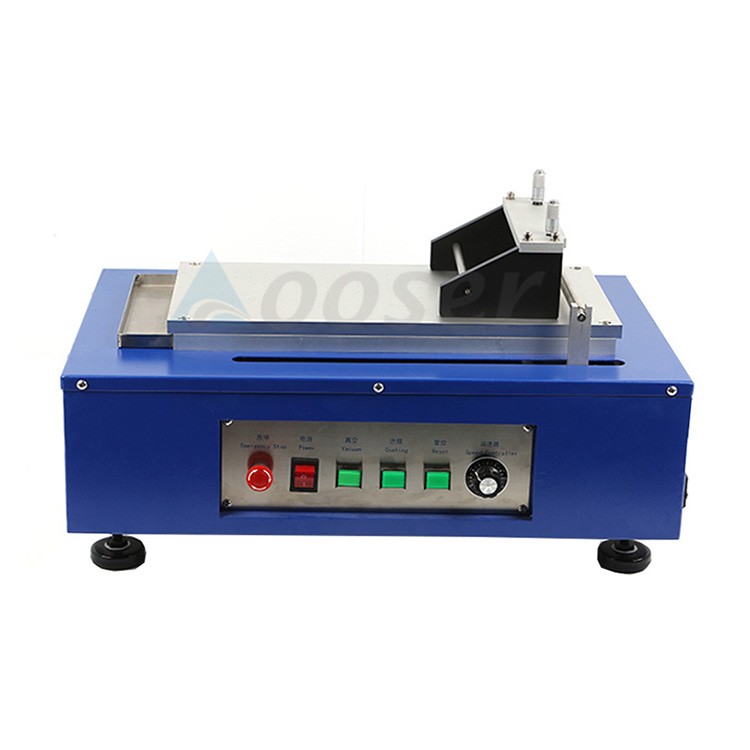

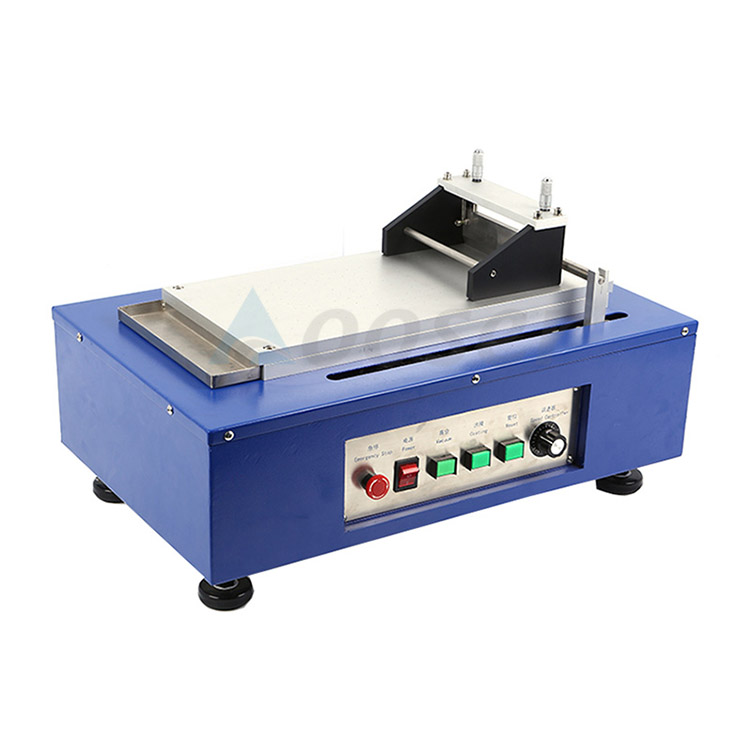

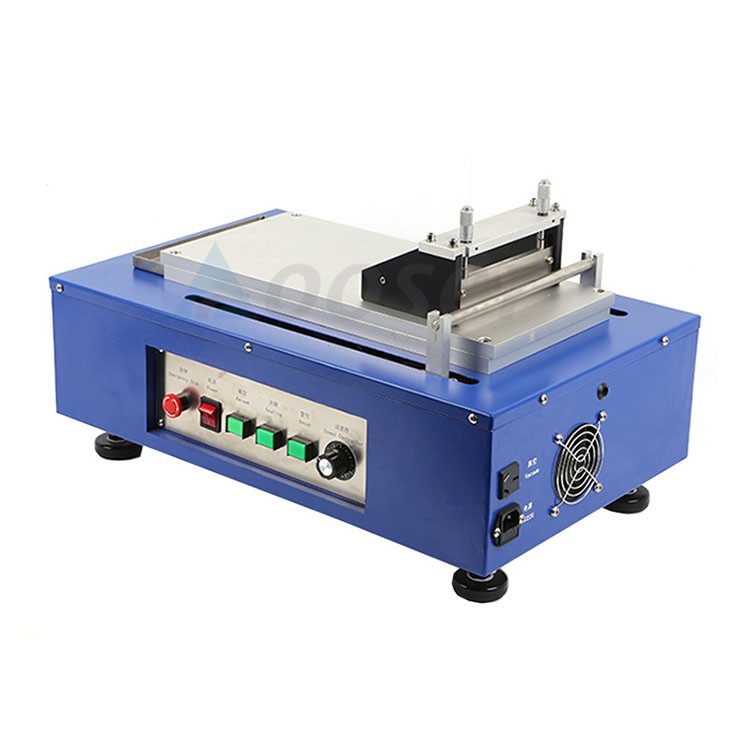

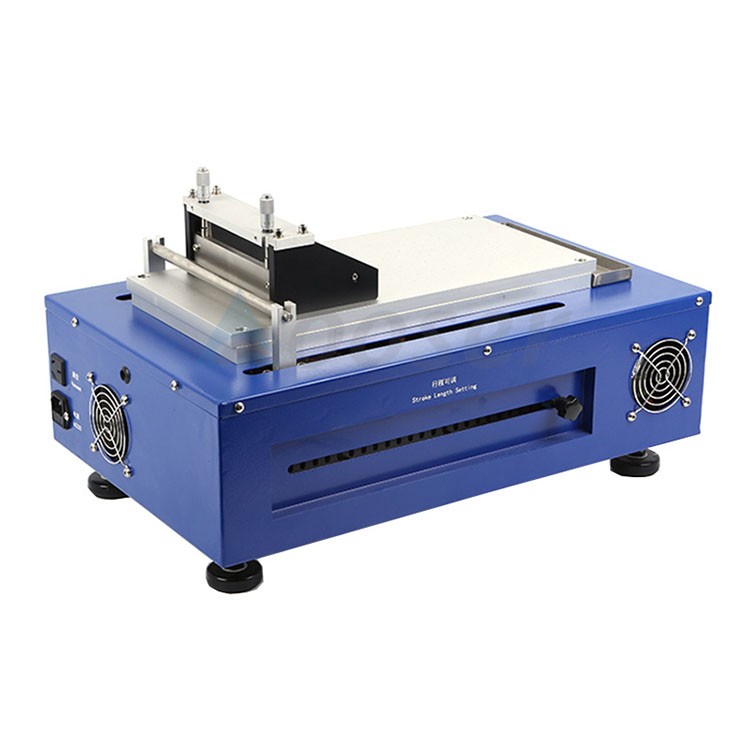

Automatic Lab Battery Coater Coating Machine with Film Applicator for Batteries Materials Coating

Automatic Lab Battery Coater Coating Machine with Film Applicator for Batteries Materials Coating

Model: AS-TM-300

Input Voltage: AC 110/220V, 50/60HZ

Power: 200 W

Coating Speed: 0~100mm/s

Film Applicator Width: 100mm/150mm

Automatic Lab Battery Coater Coating Machine with Film Applicator for Batteries Materials Coating

Battery cell lab equipment ( VACUUM COATER MACHINE ) :

This battery film coater machine is widely used for research of all kinds of film coating, like ceramic films, crystal films, battery material films, and special nano-films.

Features :
1. Coating speed is at the range of 0~100mm, adjustable.
2. Vacuum aluminum plate, used to place and take off the substrate in quick.
3. Stroke can be regulated by travel switch at the range of 0~300mm.
4. Accuracy of adjustable coating machine is 0.01mm.
5. Small dimension saves space.

Parameters:

Item Name	Battery Coating Machine for Lab
Model	AS-TM-300
Input Voltage	AC 110/220V, 50/60HZ
Power	200 W
Coating Speed	0~100mm/s
Vacuum Plate	The machine is equipped with vacuum aluminum plate
Max Stroke	300mm(customized size is available)
Film Applicator Width	100mm/150mm
Dimension of vacuum plate	L410mm×W200mm×H30mm
Regulating range of applicator	0.01~3.5mm
Weight	40KG
Dimension	L550mm×W310mm×H320mm
