Model:AS-MSK-SFM-192LN
Product Origin:China

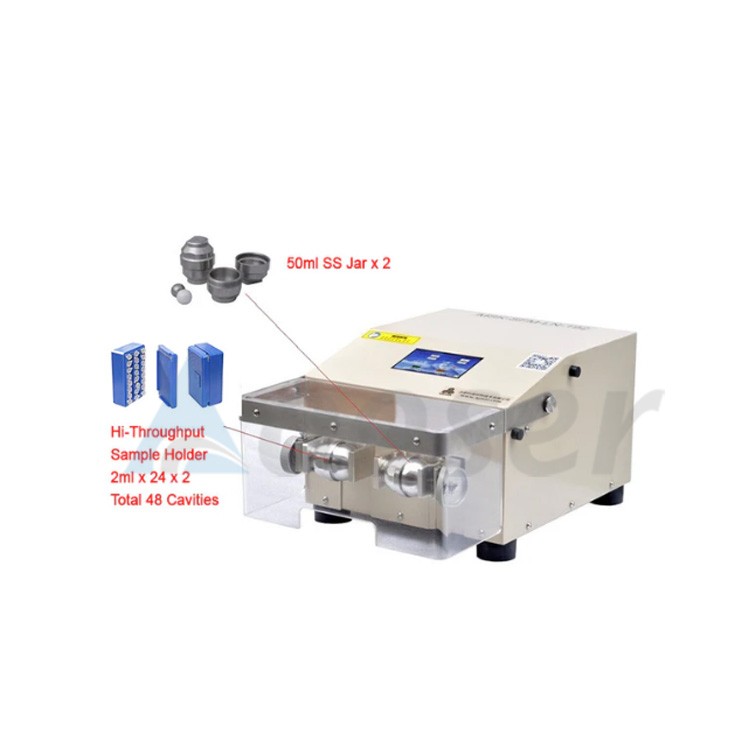

Product Description:AS-MSK-SFM-192LN is a versatile high energy, high-throughput ball mill & mixer designed for efficient milling and mixing. Two milling stations can hold two 50ml SS jars in position.

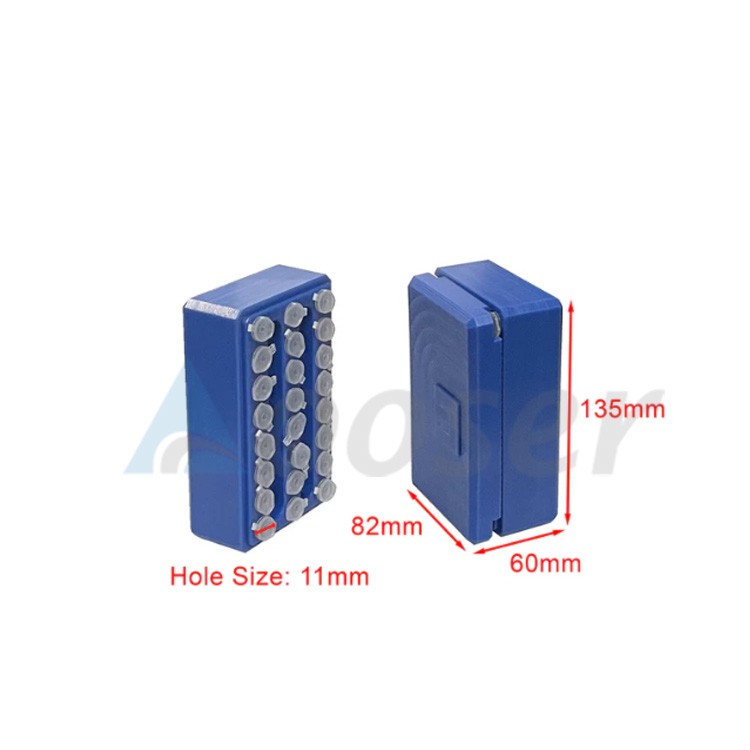

AS-MSK-SFM-192LN is a versatile high energy, high-throughput ball mill & mixer designed for efficient milling and mixing. Two milling stations can hold two 50ml SS jars in position. Radial oscillating movements provide sufficient kinetic energy to the milling balls which impact the wall surface of the jar and pulverize the materials. The included multi-channel 24x2 ml tube adapters enable the simultaneous milling/mixing of up to 48 different samples.
|
Features |
High energy vibration ball mill/mixer with versatility - wet & dry grinding/mixing; multi-sample high throughput processing; cryogenic & room temperature High throughput processing is feasible with the aid of the 2ml tube holder and 24 slots adaptor. Up to 24*2 different materials can be processed at the same time with 2 sample holders placed in position. 1&2 to see details. Bench-top compact design with 2 Grinding Stations. Two standard 50ml SS jars are included.Each Station can hold milling jars with a volume range from 1.5ml to 50ml. Radial oscillation pattern vibration ensures high energy effective and efficient milling and mixing. Minimum output granularity can be as small as 3 μm This device is able to perform cryo-milling: Before grinding temperature sensitive or elastic materials, user can pre-cool samples by submerging the grinding jar to liquid nitrogen. Note: This device does not equip with an integrated cooling system. |
|
Working Voltage |
110 - 240V AC, 50/60 Hz 24VDC motor. 400W Max. |
|
Vibration |
Frequency: 10-70Hz (300-2100rpm adjustable) |
|
Material Feed Size |
≤ 8mm |
|
Material Output Size |
~3μm (may differ depends on the sample material) |
|
Milling Jars/Balls |
Standard Package includes. Two 2ml*24 Tube Holder Two 50ml SS Milling Jar 3mm Dia. SS Milling balls (100mL) 3mm Dia. Zirconia Miling Balls (100mL) Four 20mm SS Milling balls 48 pcs of 2ml sample tubes. We provide a wide range of jar/ball materials for contamination-free processes, such as Nylon, Alumina, Zirconia, agate...Please contact us for more details. |
|
Control Panel |
Touch screen digital control panel Parameters: Milling time, Pause time, Cycle number, Vibrating Frequency, are programmable. 10 programs can be pre-stored in the panel Note: The single grinding time is recommended not to exceed 300s, and the total time is not more than 6553s. |
|
Warranty |
One-year limited warranty with lifetime support Consumable parts, such as milling jar and balls are not covered by the warranty |
|
Compliance |
CE Certified NRTL certification is available at extra cost |
|

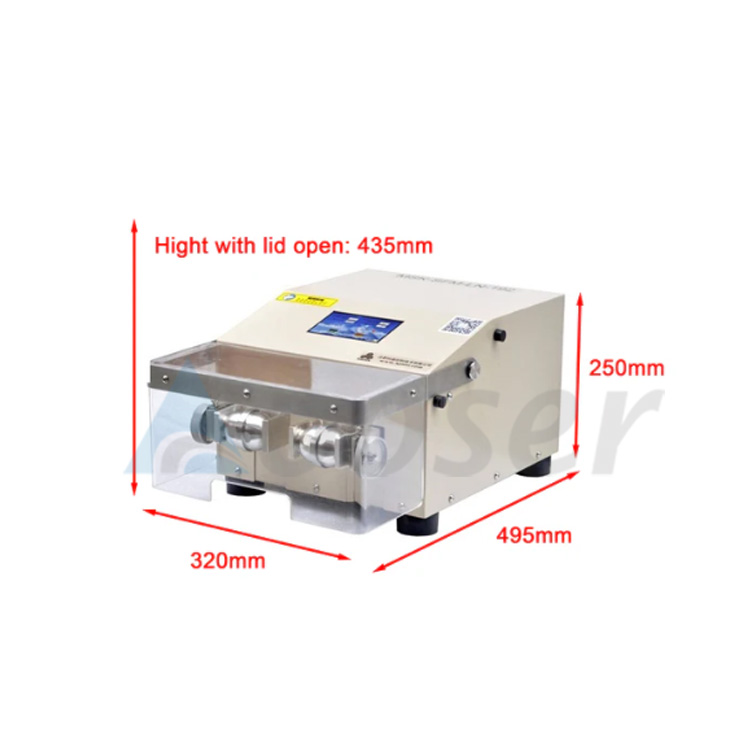

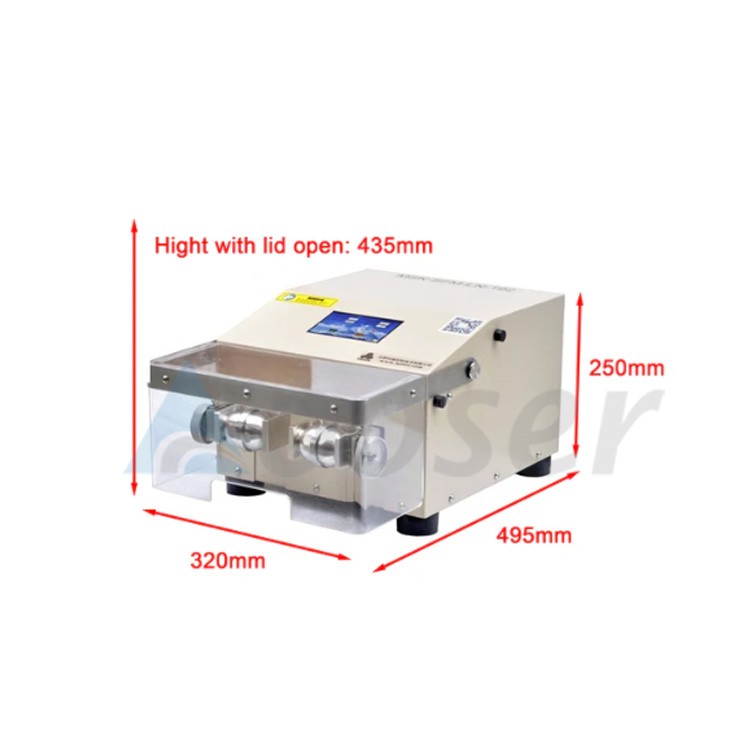

Production Dimensions |
420mm(L) x 300mm(W) x 180mm(H) |
|
Weight |
20KG |
|
Application Notes |
SS304 mixing jar is suitable for grinding various metal materials For milling the oxide material, please choose alumina/Nylon jars and zirconia media. DO NOT USE stainless steel balls in Alumina jars. |
|
Shipping Dimensions |
21"(L) x 17"(W) x 11"(H) |
|
Shipping Weight |
40 lbs |
