P2-Type Nickel Manganese Sodium Cathode Material

Model:MS-PMT-1

Product Origin:China

Product description:MS-PMT-1, a P2-type sodium manganese nickel oxide cathode material for sodium-ion batteries, offers 4.2V high-voltage charging support, a capacity of 117mAh/g, and an initial efficiency of 95%. With low moisture and high tap density, it meets the development requirements of power and energy storage batteries and is available in standard packaging of 50g and 200g.

Product Description

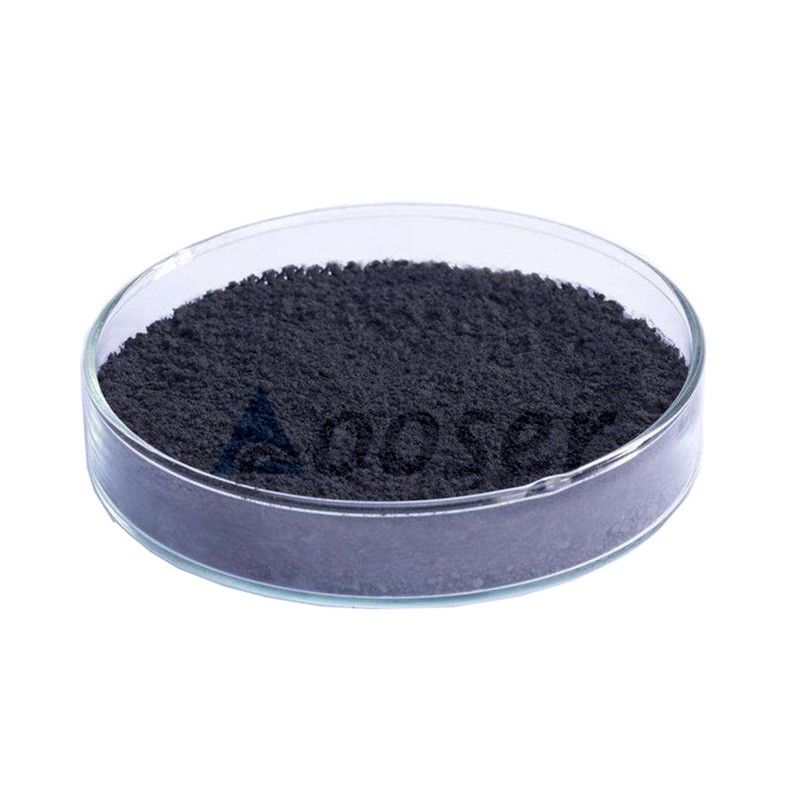

Sodium manganese nickel oxide P2-type (MS-PMT-1) is a high - performance cathode material for sodium - ion batteries. It's a black powder with a tap density of 1.586g/cm³, boosting the battery's volumetric energy density. It has a mass capacity of 117.31mAh/g, a first - week charge - discharge efficiency of 95%, and supports 4.2V high - voltage charging. The material's particle size is strictly controlled (D50 = 10.473μm), with low moisture content (H2O ≤ 463ppm), ensuring cycling stability. The total content of nickel, iron, and manganese is accurately controlled at 50.08wt%, and its weak alkalinity (pH 12) suits mainstream electrolyte systems. The product comes in 50g and 200g bottles, meeting the high - safety and low - cost new energy demands in power batteries and energy - storage systems.

Item	Unit	Specification	Typical Value	Test Method or Instrument
Appearance	/	Black powder	/	Visual inspection
Tapped Density	g/cm³	≥1.20	1.586	Ref GB/T5162-2006
Surface Area	m²/g	0.3-1.0	0.843	Surface area analyzer
H₂O	ppm	≤500	463	Moisture analyzer
D₁₀	μm	≥2.00	3.157	Laser particle size analyzer
D₅₀	μm	8.00±2.00	10.473	Laser particle size analyzer
D₉₀	μm	≤24.00	25.969	Laser particle size analyzer
Na	wt%	20.50~21.00	20.25	AAS
Ni+Fe+Mn	wt%	50.50±1.00	50.08	GB/T223.25-1994, Gravimetric method
pH	/	≤13.00	12	pH meter

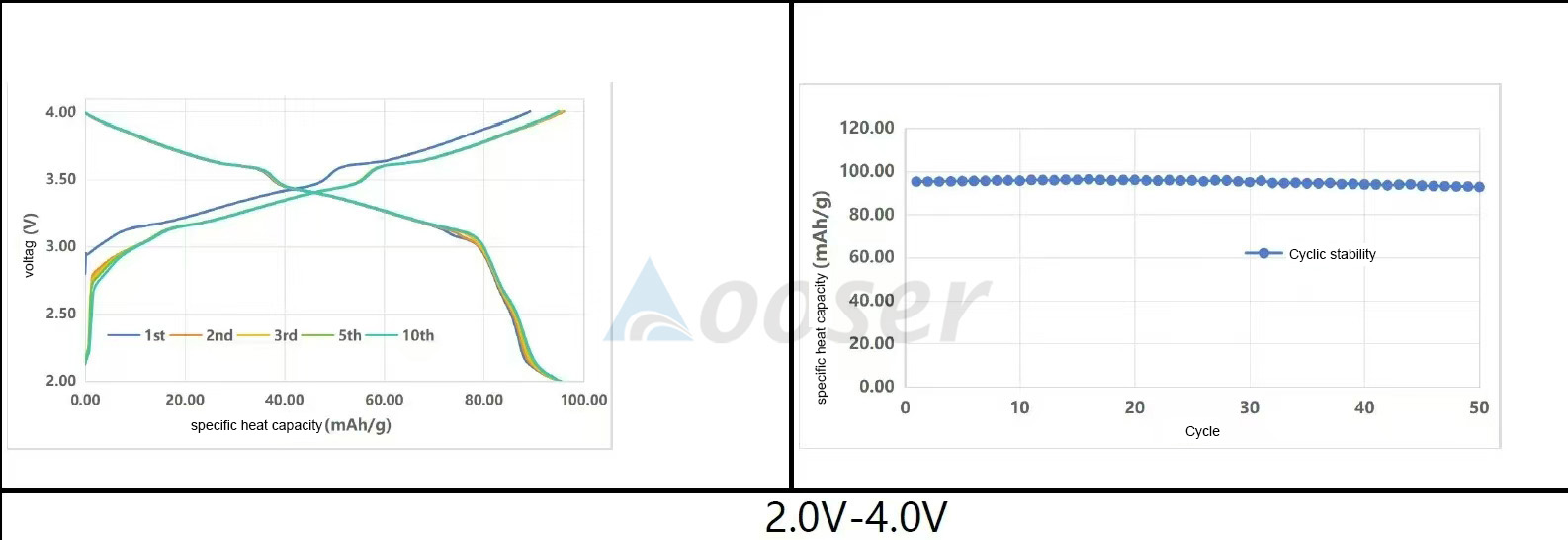

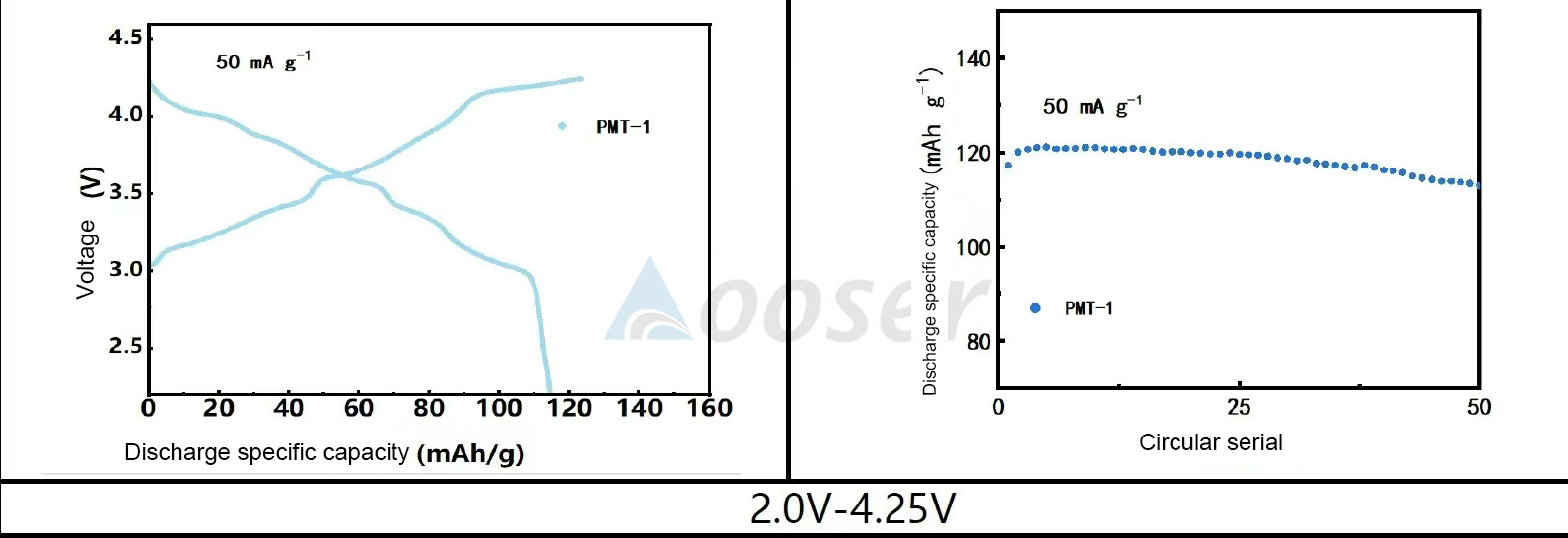

Capacity	mAh/g	≥100.0	117.31	coin cell, 4.25~2.0V, 0.1C charge/discharge
Initial Efficiency	%	≥92	95	/

Sodium Nickel-Manganate parameters
