The Art of the Coin Cell: A Guide to Selecting Your Lithium Anode

Introduction

So, you're designing a coin cell experiment to test a brilliant new cathode material. You've meticulously synthesized your powder, optimized your slurry, and punched a perfect electrode. Now, you reach for the lithium foil. But which one? Thick or thin? Large or small? This seemingly simple choice is a fundamental pillar of reliable electrochemistry. Choosing the wrong lithium anode can lead to premature cell failure, misleading data, and wasted time. Let's break down the key factors to consider when selecting a lithium chip for your coin cell.

1. The Golden Rule: The N/P Ratio

The single most important concept is the N/P capacity ratio. This is the ratio of the capacity of your Negative electrode (the lithium anode) to the capacity of your Positive electrode (the cathode).

N/P = (Capacity of Li Chip) / (Capacity of Cathode)

Why does this matter? Lithium metal is highly reactive and consumed during cycling to form the Solid Electrolyte Interphase (SEI) and, unfortunately, through irreversible side reactions. If you use just enough lithium, your cell will fail quickly once that lithium is depleted, masking the true performance of your cathode.

The Solution: Use a large excess. In research, we typically use an N/P ratio >> 1 (often between 3 and 10). This ensures the lithium anode is never the capacity-limiting factor. You want your cell to fail due to the degradation of your cathode material, not because it ran out of lithium.

Pro Tip: Always calculate your cathode's theoretical capacity first, then choose a lithium chip that provides at least 3x that capacity.

2. Thickness: The Reservoir vs. Practicality Trade-Off

Lithium foil comes in standard thicknesses: 50µm, 100µm, 150µm, 200µm, and up to 500µm.

The Reservoir (Thick Foil - 200µm to 500µm): A thick lithium chip acts as a massive reservoir. It's perfect for long-term cycling tests, experiments with high-areal-loading cathodes, or when you need to ensure absolutely that lithium is not your limiting factor. A major practical advantage: thicker foil is easier to handle and punch without damaging it.

The Realistic Scenario (Thin Foil - 50µm to 150µm): Thin lithium foil is used when trying to mimic commercial conditions where lithium is a limited resource (e.g., in future lithium-metal batteries).  It's also essential for studying the effects of stack pressure. The downside? It's flimsy, curls easily, and can be tricky to work with without introducing wrinkles or tears.

3. Diameter: The Coverage Principle

Alignment is everything. The goal is to have uniform current distribution across the entire surface of the cathode.

To achieve this, your lithium chip diameter should always be slightly larger than your cathode's diameter.

A common pairing is a 15.8 mm cathode with a 16.5 mm lithium chip.  This guarantees that the entire cathode surface is perfectly opposed by the lithium anode, preventing edge effects where irregular lithium plating can initiate failure.

Never use a lithium chip that is smaller than your cathode.

4. The Practical Realities: Handling and Safety

Remember, you're not just running a simulation; you're building a physical cell.

Handling: Thicker foil is forgiving. Thin foil requires a deft touch and sharp, clean punches to avoid mishaps that can ruin your cell assembly.

Safety: All lithium metal reacts vigorously with air and moisture. All handling and cell assembly must be performed in an inert atmosphere glovebox (< 0.1 ppm H₂O and O₂).

Conclusion: A Practical Recommendation

There is no one-size-fits-all answer, as your choice depends on your specific experimental goal.  However, if you're looking for a robust, general-purpose starting point for testing new cathode materials, you can't go wrong with this:

Lithium Chip Thickness: 150 µm or 200 µm

Lithium Chip Diameter: 0.5 - 1.0 mm larger than your cathode

This combination provides a high N/P ratio for meaningful, long-lasting tests and offers a great balance between electrochemical performance and practical handling.  By making an informed choice about your lithium anode, you ensure that the data you collect truly reflects the performance of your material, not an artifact of a poorly designed cell.

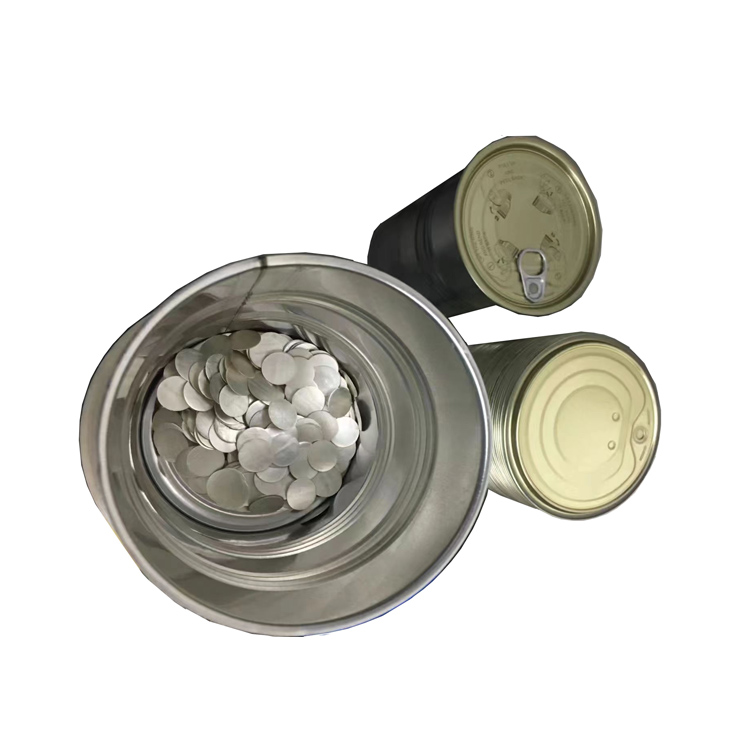

Our lithium metal chips support customized service. If you want them, please feel free to contact us.
