6μm NVP Powder Technology Accelerates Commercialization of Na-Ion Batteries

Shanghai, China — Researchers and battery manufacturers have achieved a critical milestone in optimizing Na₃V₂(PO₄)₃ (NVP), a leading cathode material for sodium-ion batteries (SIBs), by engineering it into uniform 6μm-sized particles.  This innovation addresses long-standing conductivity and stability challenges, positioning SIBs as a cost-effective alternative to lithium-ion batteries for large-scale energy storage.

Why Particle Size Matters: The Science Behind 6μm NVP

NVP’s NASICON-type crystal structure offers exceptional structural stability (only 8.26% volume change during cycling) and high ionic conductivity1.  However, its practical application has been hindered by poor intrinsic electronic conductivity and sluggish ion diffusion kinetics.  Recent studies reveal that 6μm particles optimize the balance between:

Reaction Kinetics: Smaller particles shorten Na⁺ diffusion paths, enhancing rate capability10.

Structural Integrity: Larger particles mitigate aggregation risks and improve electrode stability during long-term cycling6.

Doping with low-cost elements like K⁺ and Co²⁺ further expands lattice channels, accelerating Na⁺ transport and boosting capacity to 107.5 mAh g⁻¹ (vs. 99.2 mAh g⁻¹ for undoped NVP)6.

Industry-Leading Performance Metrics

Recent advancements leveraging 6μm NVP powders demonstrate unprecedented electrochemical results:

Ultra-Long Cycle Life:

K/Co-doped NVP retained 70.4% capacity after 500 cycles at 1C6.

An all-solid-state battery with ferroelectric-engineered electrolytes achieved 86.4% capacity retention over 650 cycles7.

Extreme Rate Capability:

3D carbon-frameworks supported NVP delivered 75.3 mAh g⁻¹ at 6000 mA g⁻¹—critical for fast-charging applications10.

Wide-Temperature Operation:

Zr-doped NVP variants maintained 61.4 mAh g⁻¹ at -30°C and 84.1 mAh g⁻¹ at       60°C9.

Commercialization Gains Momentum

Global efforts to scale NVP-based batteries are accelerating:

KPIT Technologies & Trentar Energy: Partnered to commercialize SIBs with 80% capacity retention over 3,000–6,000 cycles and rapid charging.  Initial manufacturing targets 3GWh capacity for EVs and grid storage28.

Materials Innovation: Cost reduction strategies include replacing toxic vanadium with Fe/Mn and utilizing biomass-derived carbon coatings19.

Future Outlook: Multi-Scale Engineering

Next-generation NVP cathodes will combine particle optimization with complementary technologies:

Interface Engineering: Organic aluminum additives form stable SEI layers, enabling 81.28% capacity retention after 6000 cycles at 40C5.

Simultaneous Cation-Anion Doping: Silicate (SiO₄⁴⁻) and K⁺ co-doping boost capacity to 116.3 mAh g⁻¹ while reducing per-cycle decay to 0.0056%4.

The convergence of precision particle control, strategic doping, and interface engineering has transformed NVP from a lab curiosity into a commercially viable cathode.  Sodium-ion batteries are now poised to disrupt the $30B energy-storage market.

This integrated approach underscores the transition from incremental lab-scale improvements to industry-ready SIB solutions capable of meeting diverse demands—from sub-zero EV operation to grid-scale storage with decade-long lifespans.

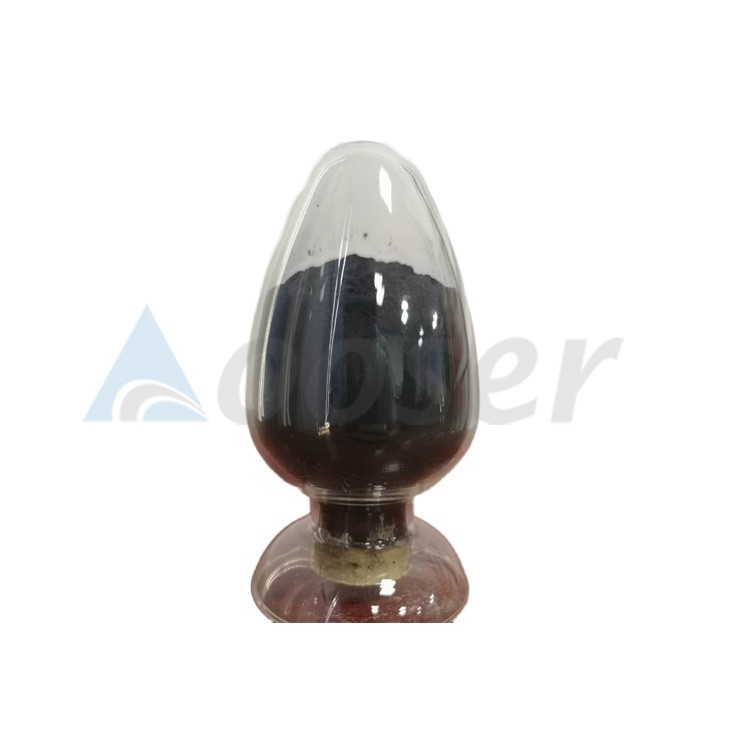

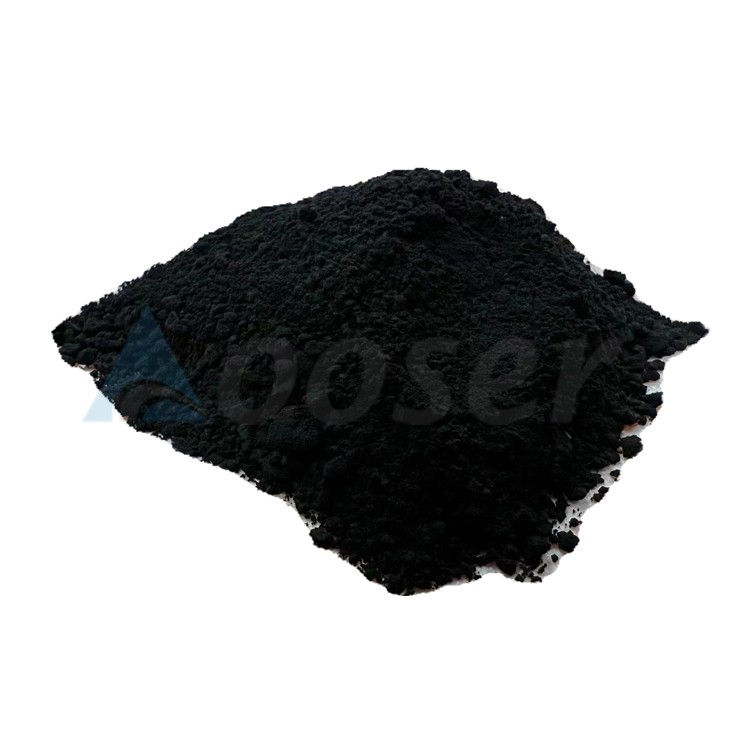

Xiamen AOT provided 6um NVP Powder. If you need it, please feel free to contact us. And the MOQ is 10g/Bottle.
