  • 200ml Planetary Ball Mill with Optional Materials of Jars
200ml Planetary Ball Mill with Optional Materials of Jars

200ml Planetary Ball Mill with Optional Materials of Jars

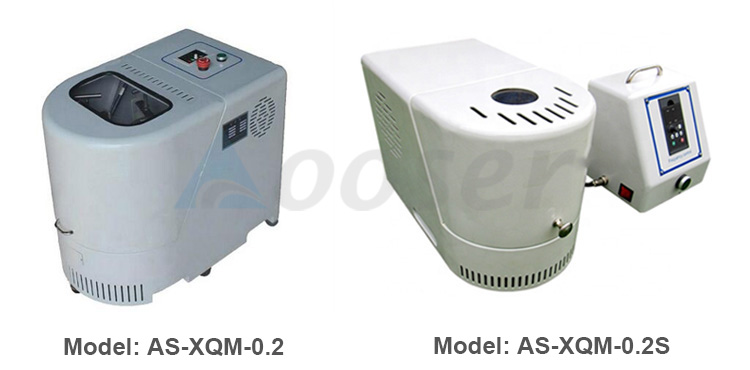

Model: AS-XQM-0.2 and AS-XQM-0.2S
Input: 220V 50Hz, 110V optional
Capacity: 50ml Jar*4 sets
Power: 250W
Rotating speed: Revolution 60-580r / min,Rotation 120-1160r / min


200ml Planetary Ball Mill for Lab Powder Materials Grinding


1. Planetary ball mill is small, high efficiency and low noise which is the ideal machine for lab R&D, institutions of higher learning, corporate laboratories to obtain micro particle research samples. (Four samples for each experiment).

2. It can be equipped with vacuum ball mill; the sample can be ground under vacuum. It is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other departments.

3. Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.

4. The small volume can be worked in glove box. (Choose model XQM-0.2S with control box separately)

Technical Spec:

Product Model 1

AS-XQM-0.2 General type

Product Model 2

AS-XQM-0.2S with separate control box and milling machine, suitable for work inside glove box

Grinding jar volume (L)

50ml*4 sets

Grinding jar material

According to requirements

Ball material

According to requirements

Maximum loading per tank

Material and grinding medium does not exceed two-thirds of the volume

Feeding material size

Soil material ≤ 10 mm, other materials ≤ 3 mm

Discharge material size

Min 0.1um

Rotating speed

Revolution 60-580r / min,

Rotation 120-1160r / min

Speed ratio

(revolution: rotation)


Speed mode

Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse

Transfer method

Gear drive

Working Voltage

220V 50Hz; 110V customized

Motor power and variable frequency power

0.25 Kw

Way of working

Two or fourmilling jars work at the same time

Maximum continuous operating time


Programmable control

(electronic monitoring)

Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run(0-999min) and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation.

Net Weight

About 28KG


1 Year limited with lifetime online technical support

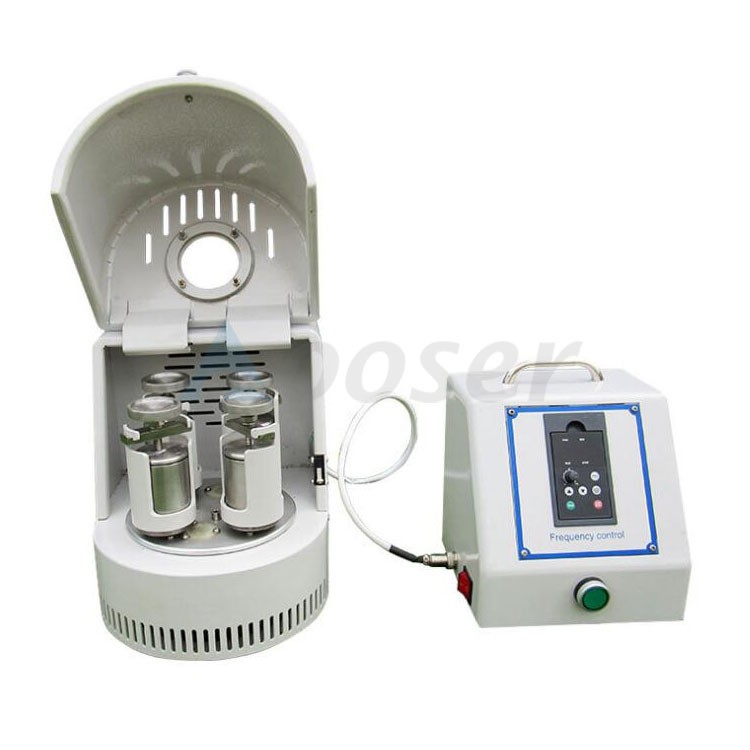

0.2L Planetary Ball Mill

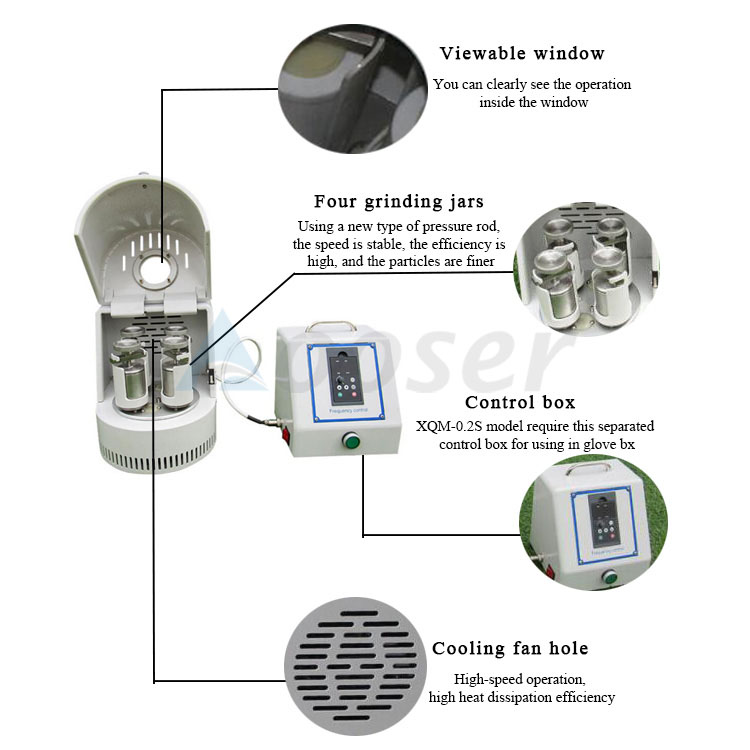

0.2L Planetary Ball Mill Introduction

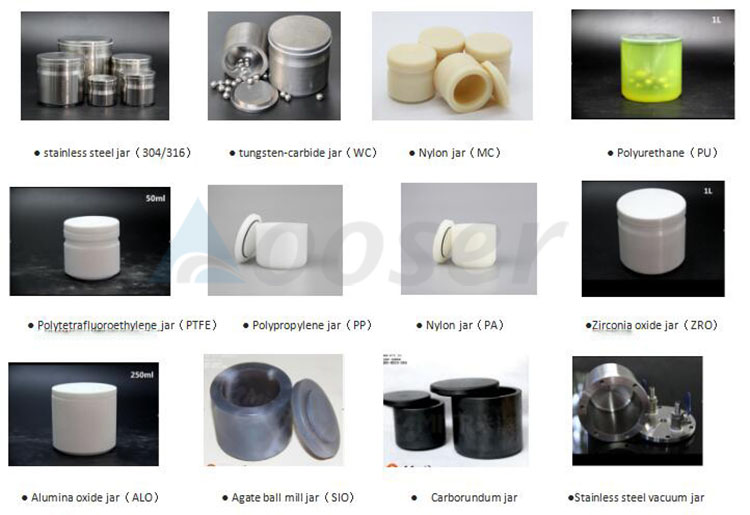

Ball Milling Jar Materials Optional:

Ball Milling Jar Materials

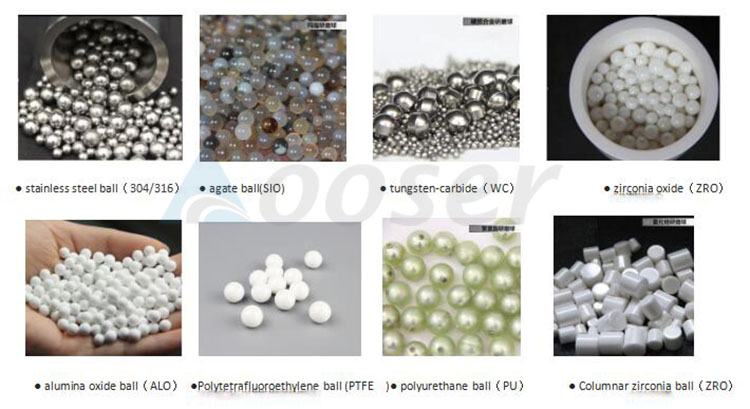

Grinding Balls for Planetary Ball Mill:

Grinding Balls for Planetary Ball Mill
