Model:AS-OS20-S
Product Origin:China
Product Description:The LED top-mounted stirrer is a laboratory stirring equipment. The top motor drives the stirring paddle to mix the liquid.
The LED top-mounted stirrer is a laboratory stirring equipment. The top motor drives the stirring paddle to mix the liquid. Equipped with an LED display screen, it can precisely control parameters such as rotational speed and time, and display the operating status in real time. It has the advantages of wide speed regulation range and stable torque, and is suitable for solutions of different viscosities.
Features:
High reliability and outstanding performance
Wide range of speed from 50 to 2200rpm
Brushless DC motor for long life, maintenance free andexplosion proof

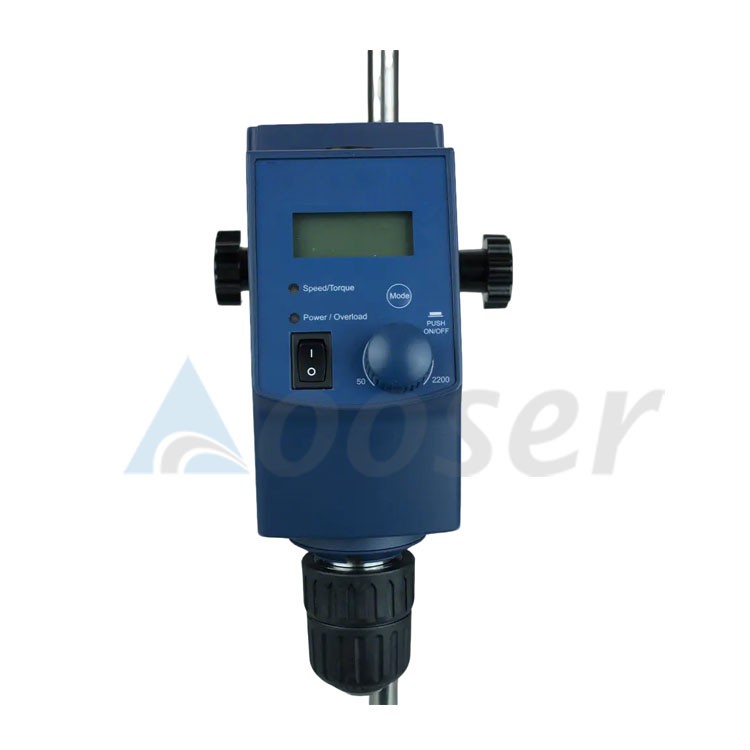

LED screen for monitoring actual speed
Safety circuits allow for safe stop function in anti-stall oroverload conditions
Large chuck diameter for many shaft types
Specifications |
OS20 - S |
OS40 - S |
Max. stirring quantity[H₂O] |
20L |
40L |
Speed range |
50 - 2200rpm |
50 - 2200rpm |
Max. torque |
40N·cm |
60N·cm |
Viscosity max. |
10000mPa·s |
50000mPa·s |
Motor type |
Brushless DC motor |
Brushless DC motor |
Chuck range diameter |
0.5 - 10mm |
0.5 - 10mm |
Motor input power |
60W |
120W |
Motor output power |
50W |
100W |
Power |
70W |
130W |
Voltage,Frequency |
100 - 240V, 50/60 Hz |
100 - 240V, 50/60 Hz |
Dimension[WxHxD] |
83 x 220 x 186mm |
83 x 220 x 186mm |
Protection class |
IP21 |
IP21 |
Weight |
2.8kg |
2.8kg |
Permissible ambient temperature and humidity |
5 - 40℃, 80%RH |
5 - 40℃, 80%RH |
