  • Hot Selling Powder Grinding Multi Station Powder Grinder, Horizontal Grinder , Grinding Powder Grinding Machine
  • Hot Selling Powder Grinding Multi Station Powder Grinder, Horizontal Grinder , Grinding Powder Grinding Machine
  • Hot Selling Powder Grinding Multi Station Powder Grinder, Horizontal Grinder , Grinding Powder Grinding Machine
Hot Selling Powder Grinding Multi Station Powder Grinder, Horizontal Grinder , Grinding Powder Grinding MachineHot Selling Powder Grinding Multi Station Powder Grinder, Horizontal Grinder , Grinding Powder Grinding MachineHot Selling Powder Grinding Multi Station Powder Grinder, Horizontal Grinder , Grinding Powder Grinding Machine

Hot Selling Powder Grinding Multi Station Powder Grinder, Horizontal Grinder , Grinding Powder Grinding Machine

Model:AS-GQM-4-5

Product Origin:China

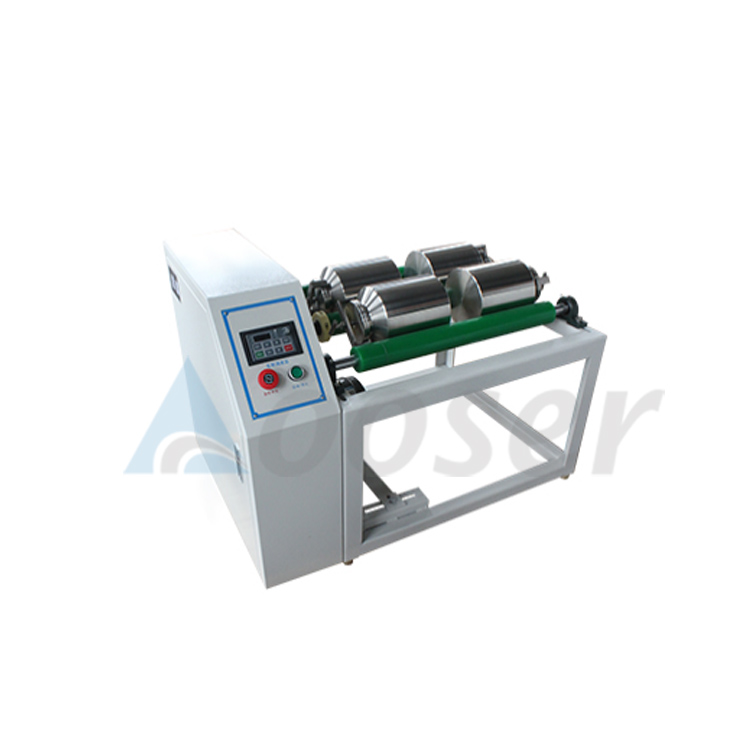

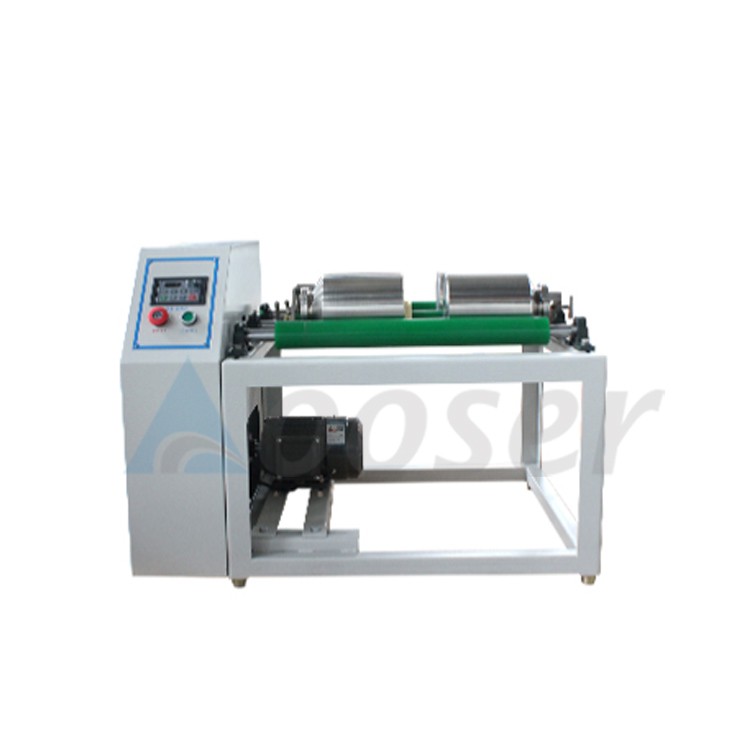

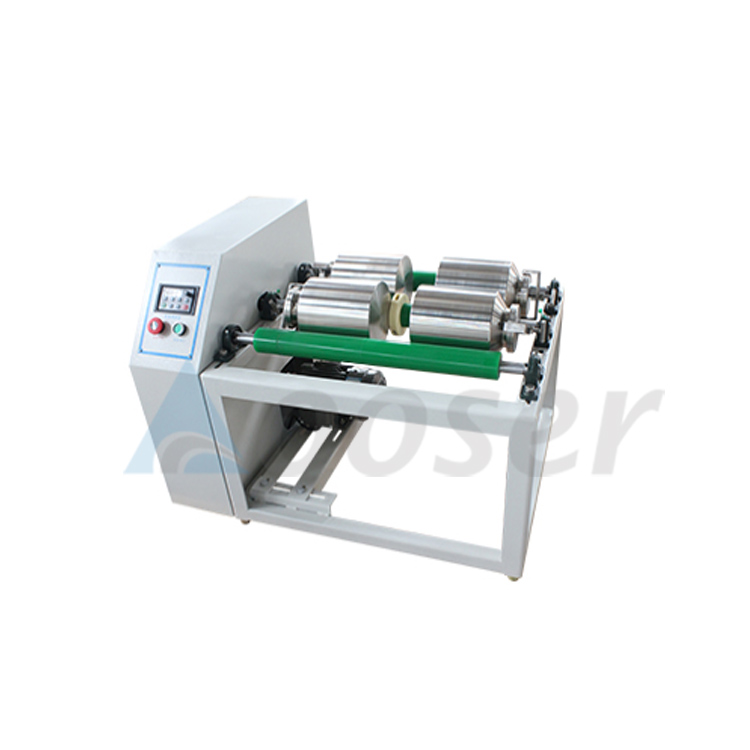

Product Description: Lab jar mill is a kind of samples ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling mill with more than two working positions.

EMAIL

Lab jar mill is a kind of samples ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling mill with more than two working positions.


Key features of Tianchuang Powder Four-Position Tank Grinding Machine

1. It can grind 4 samples simultaneously;

2. It can operate intermittently or continuously;

3. It can be set to operate at a certain time interval as per requirements;

4. It is suitable for fine grinding of materials, with high crushing efficiency;

5. The bearing rollers of the tank body are made of special materials and are durable.


Model

AOT-GQM-4-5

AOT-GQM-4-5 (Double-layer)

AOT-GQM-4-15

AOT-GQM-4-20

Overall Dimensions/Weight

950X660X690/70KG

950X480X870/(92KG)

1130X800X690/95KG

1350X820X690/122KG

Motor Model/Power

YE2-80M2-4B3 /0.75KW

YE2-80M2-4B3 /0.75KW

YE2-90L-4B3 /1.5KW

YE2-100L1-4B3 /2.2KW

Normal Power Supply

220V, 50/60HZ

220V, 50/60HZ

220V, 50/60HZ

380V, 50/60HZ

Main Roller Speed (rpm)

50 - 410±10

50 - 410±10

40 - 365±10

40 - 340±10

Hand Crank Dev

Optional

Optional

Optional

Optional

Protective Cover

Optional

Optional

Optional

Optional

ball mill

roll ball mill



Company Profile


Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.


Exhibition


AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.


Certificate


Cooperative


FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).


Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.


Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
