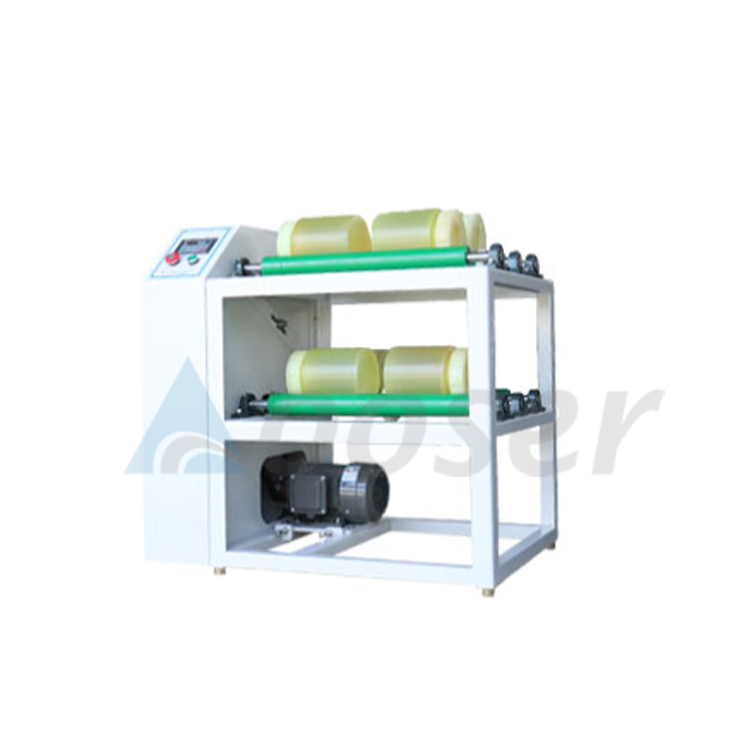

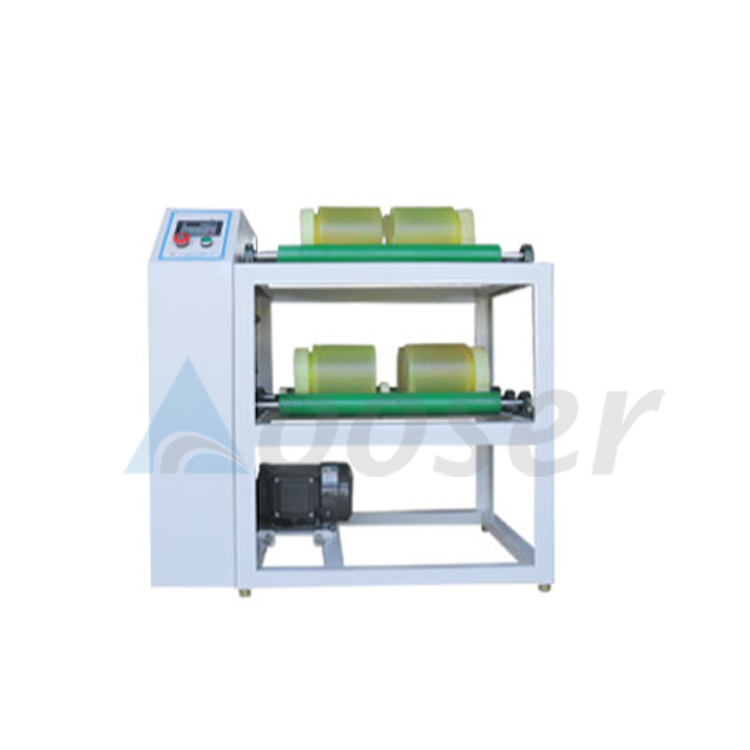

Laboratory Jar Mill Rolling Mill for Grinding and Mixing

Model:AS-GQM-8-5
Product Origin:China

Product Description: CR2450 button cell cases , made of 304 stainless steel with sealing O-ring

EMAIL

Lab jar mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling mill with more than two working positions.

Working Principle of Jar Mill

When the machine works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding. It not only saves time and labor, but is easy for operation.

Features of Jar Mill

1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set as per users’ needs.
4. Suitable for ultrafine grinding with high efficiency of pulverizing.
5. Rubber roller is made of special materials and durable in use.

1.Parameters of the two-position tank grinder

Model

AS-GQM-2-5

AS-GQM-2-15

AS-GQM-2-20

Overall Dimensions/Weight

950X480X685/59KG

1130X550X690/80KG

1350X650X690/92KG

Motor Model/Power

YE2-80M2-4B3 / 0.75KW

YE2-90S-4B3 / 1.1KW

YE2-90L-4B3 / 1.5KW

Normal Power Supply

220V, 50/60HZ

220V, 50/60HZ

220V, 50/60HZ

Main Roller Speed (rpm)

50 - 410±10

40 - 365±10

40 - 340±10

Hand Crank Device

Optional

Optional

Optional

Protective Cover

Optional

Optional

Optional


2.Parameters of the four-position drum grinder

Model

AS-GQM-4-5

AS-GQM-4-5 (Double - layer)

AS-GQM-4-15

AS-GQM-4-20

Overall Dimensions/Weight

950X660X690/70KG

950X480X870/(92KG)

1130X800X690/95KG

1350X820X690/122KG

Motor Model/Power

YE2-80M2-4B3 / 0.75KW

YE2-80M2-4B3 / 0.75KW

YE2-90L-4B3 / 1.5KW

YE2-100L1-4B3 / 2.2KW

Normal Power Supply

220V, 50/60HZ

220V, 50/60HZ

220V, 50/60HZ

380V, 50/60HZ

Main Roller Speed (rpm)

50 - 410±10

50 - 410±10

40 - 365±10

40 - 340±10

Hand - operated Device

Optional

Optional

Optional

Optional

Protective Cover

Optional

Optional

Optional

Optional


3.Parameters of the eight-position drum grinder

Model

AS-GQM-8-5

AS-GQM-8-15

Overall Dimensions/Weight

950X660X960/106KG

1130X800X960/152KG

Motor Model/Power

YE2-90L-4B3 / 1.5KW

YE2-100L1-4B3 / 2.2KW

Normal Power Supply

220V, 50/60HZ

380V, 50/60HZ

Main Roller Speed (rpm)

50 - 410±10

40 - 365±10

Hand - operated Device

Optional

/

Protective Cover

Optional

/

ball Mill Jar



ball Mill

Company Profile


Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.


Exhibition


AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.


Certificate


Cooperative


FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).


Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.


Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
