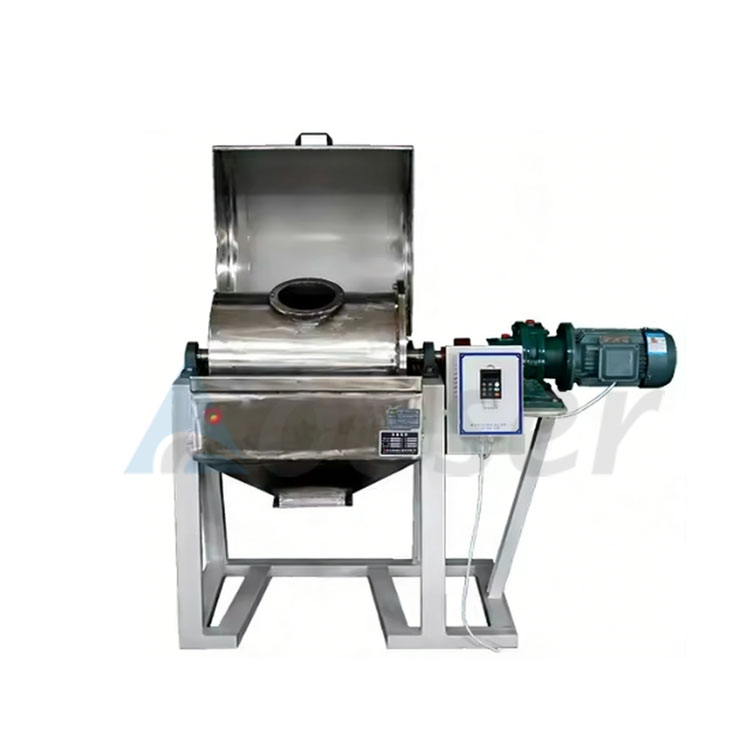

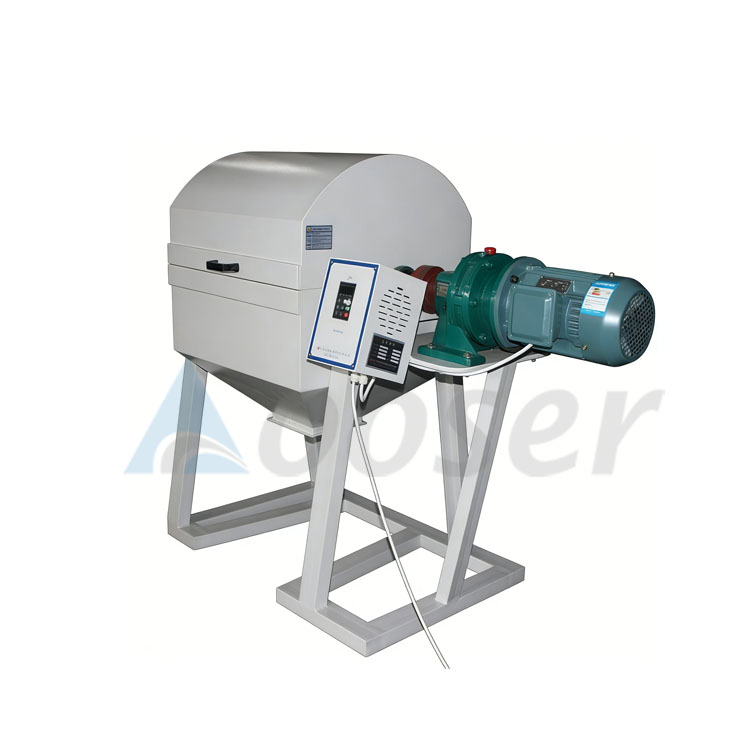

Laboratory Roller Ball Mill Light Rolling Ball Mill Powder Grinding Machine

Product Introduction and Principle:

Optional lining options include nylon, stainless steel, polyurethane, alumina ceramic, zirconia ceramic, etc. And it can be equipped with a variable frequency speed regulation mechanism, which can be equipped with automatic unloading and protective cover. It is easy to operate, the discharge is clean, and there is no dust pollution. Widely used in industries such as ceramic powder, ferrite, glass raw materials, metal powder, ore machinery, alloys, coal, coke, etc.

When the ball mill is working, the grinding medium and material inside the cylinder are lifted to a certain height together with the rotation of the cylinder. Due to gravity, they detach from the cylinder wall and fall along a parabolic path. The material is crushed under the impact of the grinding medium and the friction and shear caused by the rolling and sliding of the grinding medium.

1.Product features:

1.11. The machine runs smoothly, efficiently and energy-saving, with low noise and no pollution;

1.2. It can be used for dry and wet grinding, and can handle materials of various hardness. It can be used for coarse and fine grinding or for mixing materials;

1.3. Equipped with an automatic unloading machine, the material and ball can be automatically separated, making discharge extremely convenient;

1.4. Use protective jackets with high material purity and low pollution;

1.5. Wear resistance and high grinding efficiency;

1.6. Alloy steel, stainless steel, high wear-resistant polyurethane, corundum ceramics, zirconia and other lining materials can be selected, and the model can be selected from 20-2500L according to the user's production volume;

2. Selection assistance:

2.1. Model Description: QM - (Volume) - (Adjustable Speed Type)

For example, QM-50-A is a 50L variable speed roller ball mill;

2.2. Determine the machine model based on the grinding amount;

2.3. Select ball milling jars (or liners) and grinding balls of different materials based on their properties;

2.4. Equipment with automatic feeding device and dust cover can be selected;

Company Profile

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.

Exhibition

AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Certificate

Cooperative

FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
