The Core Engine of Energy Output in Lithium-ion Batteries: The Strategic Position and Technological Evolution of Cathode Materials

The Strategic Position of Cathode Materials As the "heart" of lithium-ion batteries, cathode materials are critical in determining the energy density ceiling and cost structure of the battery. According to Benchmark Mineral Intelligence, the global cathode materials market exceeded $48 billion in 2024, accounting for 35%-40% of lithium battery material costs. Their core role is reflected in three aspects:

（1） Lithium source provision: Reversible lithium intercalation/deintercalation enables charge transfer.

（2） Voltage platform construction: The redox potential difference of different material systems forms the working voltage.

（3） Energy density anchor: Theoretical capacity and packing density jointly determine the battery's energy ceiling.

Mainstream Technology Routes Deep Dive

1. Layered Metal Oxides: The Art of Balancing Performance and Cost

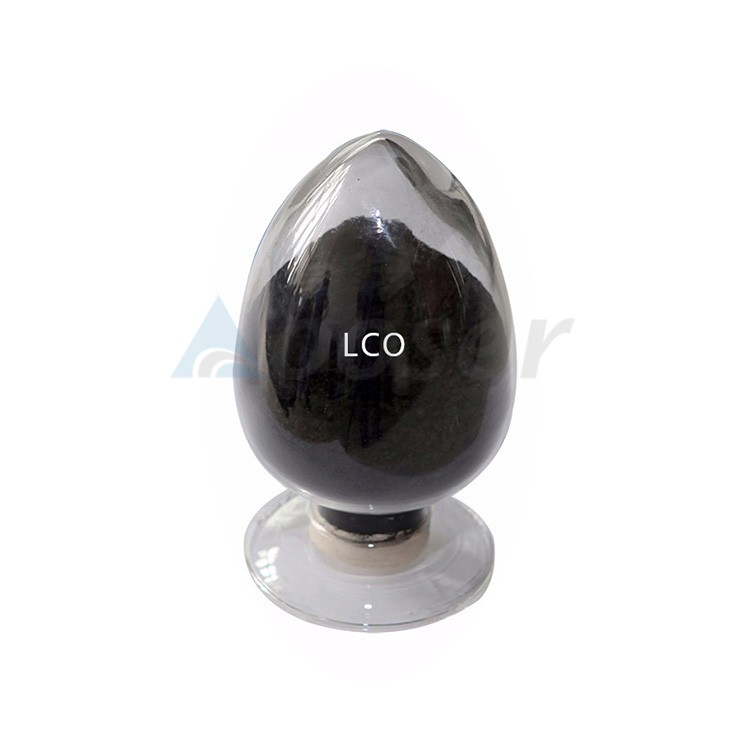

（1） Lithium Cobalt Oxide (LCO): With a high voltage platform of 3.7V and a packing density of 2.7g/cm³, LCO remains dominant in consumer electronics. However, its cost sensitivity is significant due to cobalt price fluctuations (2023 LME cobalt spot average price $33,500/ton). Recent advances involve coating particles with AlPO₄ (1-2nm thickness), extending cycle life to over 1,200 cycles.

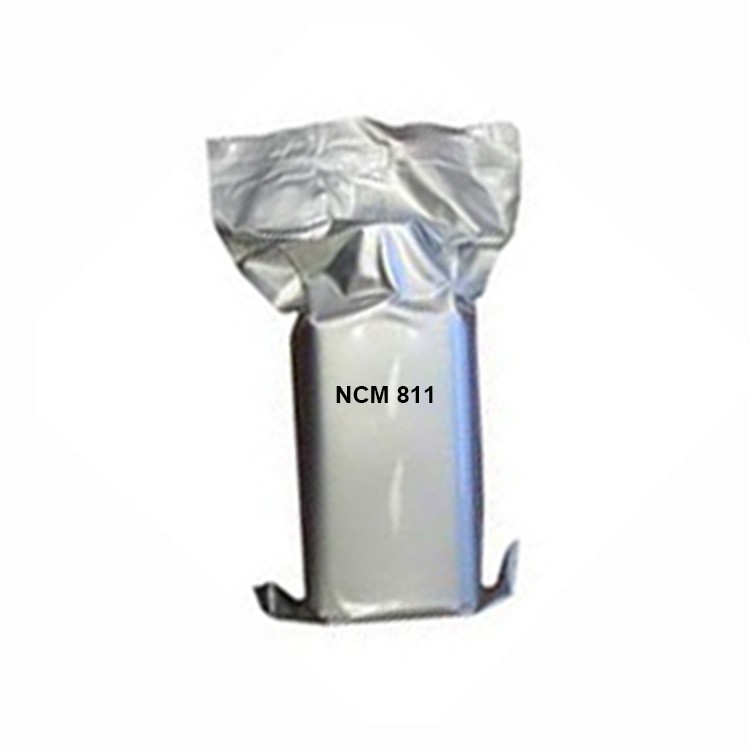

（2） Nickel-rich materials (NCM/NCA): Increasing nickel content boosts energy density. NCM811 has achieved a production energy density of 280Wh/kg, while CATL's newly developed NCM92 (LiNi0.92Co0.04Mn0.04O₂) laboratory samples show a specific capacity of 320mAh/g. To address lattice distortion issues caused by high nickel content, the industry uses graded concentration design (core Ni=0.9, surface Ni=0.6) combined with single-crystal processes (particle size 5-8μm) to effectively mitigate structural collapse.

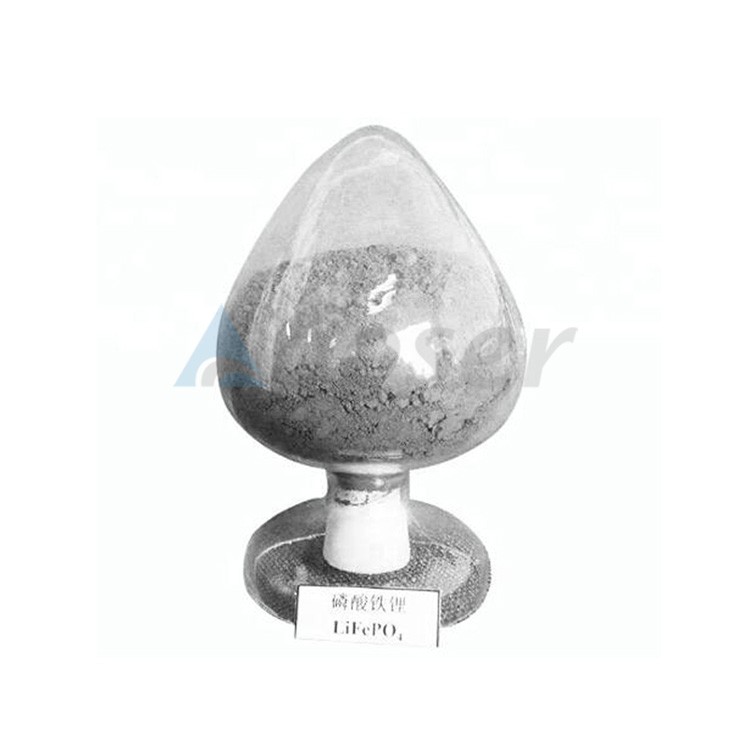

2. The Resurgence of Lithium Iron Phosphate (LFP)

BYD's Blade Battery has increased LFP's volumetric utilization to 66%, with the LFP battery system for the Model 3 achieving an energy density of 150Wh/kg.

Key technological breakthroughs include:

（1） Liquid-phase nanoscale process: Producing 30-50nm particles enhances rate performance (6C charging capacity retention >90%).

（2） Manganese doping modification: Developing LiFe0.6Mn0.4PO₄ material raises the voltage platform to 3.8V.

（3） Dry electrode process: Tesla's patent shows it can increase electrode density by 15% and reduce costs by $5/kWh.

3. The New Force of Spinel and Lithium-rich Manganese-based Materials

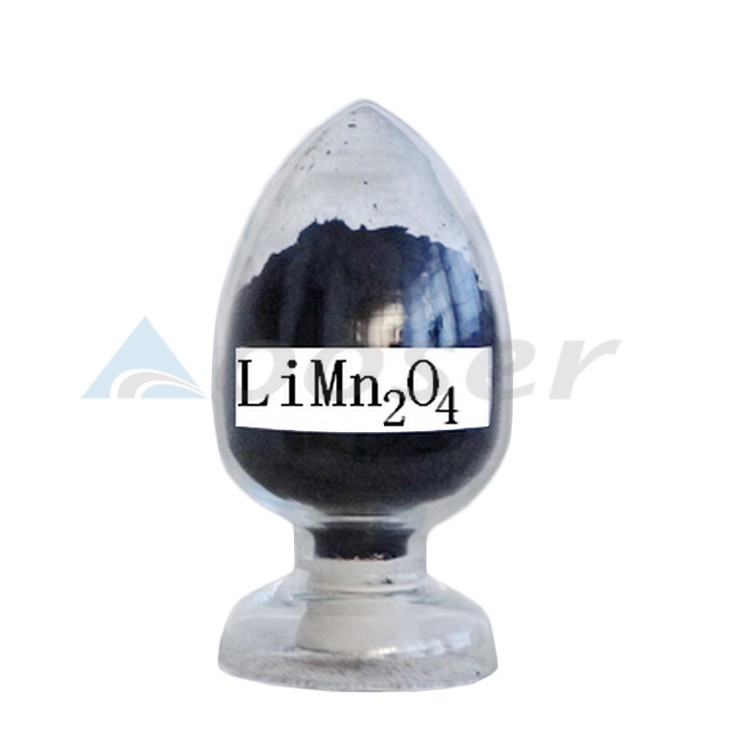

Lithium Manganese Oxide (LMO): Through Al/Mg co-doping, cycle life has exceeded 2,000 cycles, capturing 23% of the power tool market. Lithium-rich manganese-based materials xLi₂MnO₃·(1-x)LiMO₂ exhibit ultra-high capacity of 400mAh/g. The initial efficiency below 80% is being gradually improved through surface oxygen vacancy regulation technology.

Frontier Technology Landscape

（1） Solid-state compatible materials: Toyota's interface engineering of LiNi0.8Co0.1Mn0.1O₂/Li3PS4 reduces interfacial impedance to 8Ω·cm².

（2） Anion redox: CATL's Li1.2Ni0.13Co0.13Mn0.54O₂ enables anion/cation synergistic charge compensation.

（3） Material gene engineering: Tesla uses AI to screen new compositions like LiNi0.89Co0.05Al0.05Ti0.01O₂, shortening development cycles by 60%.

4.Industrial Ecosystem and Sustainable Development

The global cathode materials production capacity is dominated by East Asia, with China accounting for 67%. Environmental policies have driven the proportion of recycled materials from 12% in 2020 to 28% in 2023. GEM's hydrogen reduction method achieves 98% metal recovery with 40% lower energy consumption than traditional pyrometallurgy.
