Why a Zirconia Jar is a Power Move for Your Battery Lab

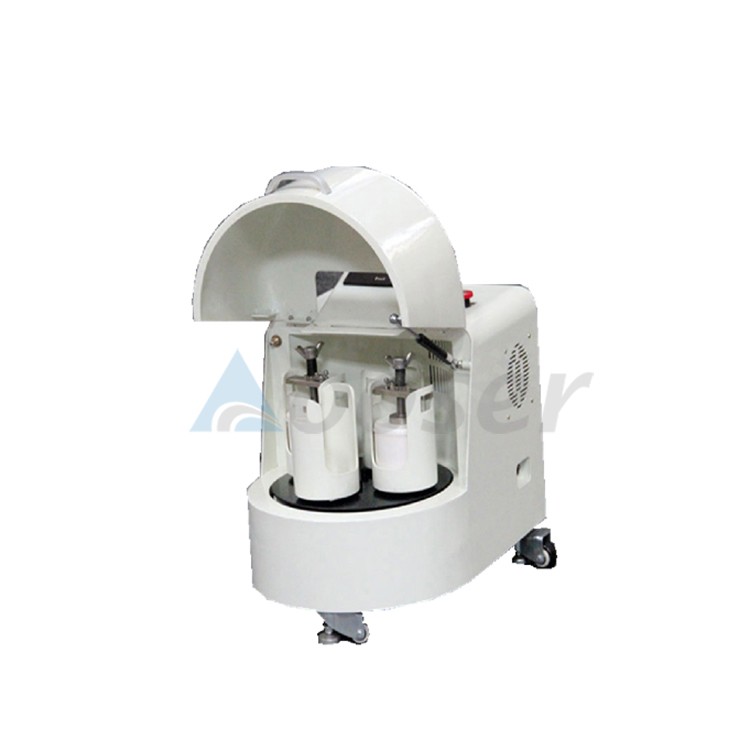

In the high-stakes race to develop better batteries, every detail in the research and development (R&D) phase matters. The quest for higher energy density, longer cycle life, and faster charging hinges on the nano-scale properties of electrode materials. And at the heart of preparing these advanced materials often lies a workhorse tool: the ball mill.

But not all mill jars are created equal.  For labs working with small, precious batches of next-generation battery materials, the choice of jar can make or break your results.  Enter the small-capacity zirconia jar—a specialized tool that is becoming indispensable in cutting-edge battery labs.

The Ball Mill's Role in Battery Innovation

Before we dive into zirconia, let's recap why ball milling is so critical:

Particle Size Reduction: Creating a fine, uniform powder is essential for dense, efficient electrodes.

Homogeneous Mixing: Ensuring active materials, conductive carbons, and binders are perfectly blended.

Mechanochemical Synthesis: Using mechanical energy to drive chemical reactions and create new compounds, like certain solid-state electrolytes.

For R&D, small jars (e.g., 50ml to 500ml) are the clear choice. They allow for economical use of expensive precursors, enable high-throughput testing of multiple formulas, and are easy to handle and clean.

The Limitation of Standard Jars

Many labs start with standard jars made of stainless steel or nylon. However, these can introduce significant problems:

Metallic Contamination: Stainless steel jars can release trace amounts of iron, chromium, and nickel into your powder blend. These metallic impurities act as poison in a battery cell, catalyzing unwanted side reactions and drastically reducing cycle life.

Wear and Tear: Aggressive milling can cause the jar itself to wear down, further increasing contamination and changing the milling mechanics over time.

Chemical Inertness: Some materials may react with the jar's surface, altering their chemistry.

Zirconia to the Rescue: The Superior Choice

Yttria-stabilized zirconium oxide (ZrO₂), commonly known as zirconia, addresses these issues head-on and offers a suite of benefits perfect for battery research.

1.  Unmatched Purity and Chemical Inertness

This is zirconia's standout feature.  It is extremely chemically inert and will not react with your sensitive battery materials. More importantly, it eliminates metallic contamination. When you're developing a new high-nickel NMC cathode or a silicon-carbon composite anode, you can be confident that the final powder is pure and uncontaminated by the milling process.

2.  Exceptional Hardness and Wear Resistance

Zirconia is one of the hardest materials used for mill jars. On the Mohs scale, it's significantly harder than stainless steel.  This means:

The jar lasts much longer, even when milling abrasive materials.

Contamination from jar wear is minimized. You get consistent results from batch to batch.

It allows for the use of high-density zirconia grinding media, creating a perfectly matched, ultra-efficient, and low-contamination milling system.

3.  High Density and Milling Efficiency

Zirconia's high density translates to greater momentum during milling. This means more impactful collisions and significantly higher milling energy. You can achieve your target particle size or complete your mechanochemical reaction faster, saving valuable time and energy in the lab.

4.  Perfect for Small Batches

The benefits of purity and efficiency are magnified when working with small volumes. In a 100ml zirconia jar, every milligram of your expensive precursor material is protected and processed effectively, maximizing your research output and ROI.

Key Applications in Battery R&D

Solid-State Electrolytes: Synthesizing and processing sensitive sulfide or oxide-based solid electrolytes where purity is paramount.

Next-Generation Cathodes: Preparing uniform, nano-sized powders of NMC, NCA, or Lithium-Rich Manganese-based materials.

Advanced Anodes: Creating silicon-based composites or fine-grinding natural graphite without metallic contamination.

Composite Electrode Mixing: Achieving a perfectly homogenous blend of all electrode components before slurry preparation.

Is a Zirconia Jar Right for Your Lab?

While the initial cost is higher than stainless steel, the investment is easily justified by:

Superior Data Quality: Trust that your electrochemical results reflect your material's true performance, not contamination.

Experimental Reproducibility: Achieve consistent batch-to-batch results.

Long-Term Value: The jar's exceptional durability means it won't need replacing anytime soon.

In the meticulous world of battery R&D, controlling variables is the key to innovation. By choosing a small-capacity zirconia jar, you eliminate a major source of contamination and variability. It's not just a container; it's a critical component that ensures the integrity of your materials and the reliability of your data.

For any lab serious about pushing the boundaries of energy storage, upgrading to a zirconia jar is a powerful—and smart—move.
