The Guardian of Safety: Understanding the Battery Nail Penetration Test System

In an era where lithium-ion batteries power everything from smartphones to electric vehicles, ensuring their safety under extreme conditions is non-negotiable. Among the most critical and dramatic safety tests is the Nail Penetration Test—a controlled simulation of an internal short circuit. Today, we dive into the system that makes this possible: the Battery Nail Penetration Test System.

Why the Nail Penetration Test?

Imagine a scenario where a sharp object pierces a battery—whether due to an accident, manufacturing defect, or external damage. This can cause an internal short circuit, leading to a rapid temperature rise, thermal runaway, and potentially fire or explosion.  The nail penetration test replicates this worst-case scenario in a controlled laboratory environment. It is mandated by global safety standards (such as UL, IEC, and GB) and is crucial for validating battery designs, especially for electric vehicles and energy storage systems.

How the Test System Works

A typical nail penetration test system is an integration of precision mechanics, real-time monitoring, and safety engineering. Here’s what it entails:

The Core Mechanism:

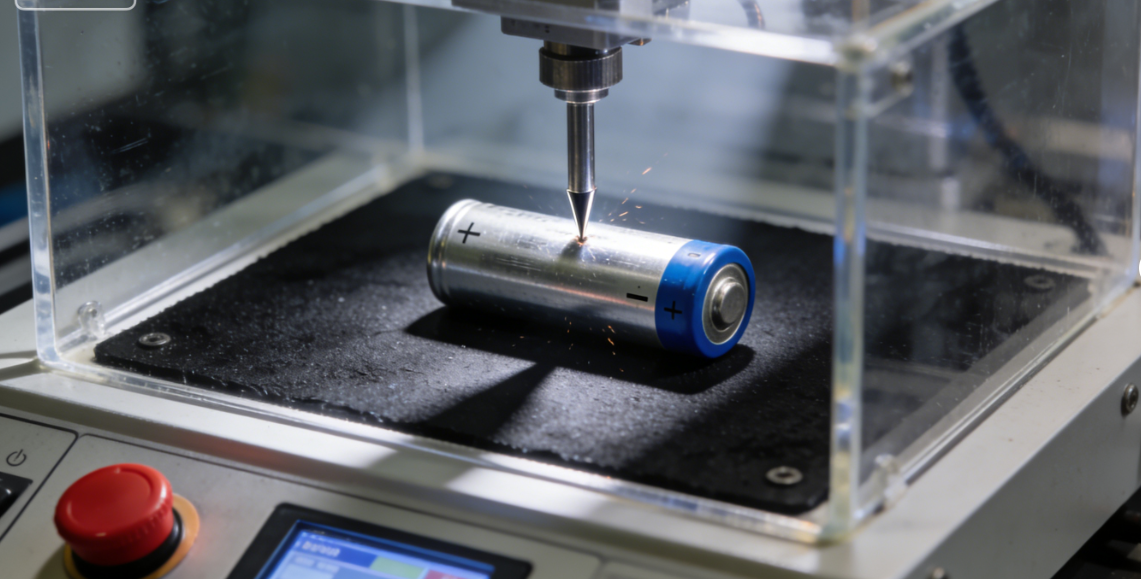

A hardened steel nail (with a defined diameter, often 3–8 mm) is driven into the battery cell at a specified speed (usually 10–100 mm/s). The penetration can be applied to a precise location, often the geometric center of the cell.

Controlled Environment:

Tests are conducted inside a fire-proof chamber equipped with ventilation and extinguishing systems. High-temperature-resistant viewports allow observation, while thermal cameras and sensors capture data.

Real-Time Data Acquisition:

Key parameters are monitored during and after penetration:

Voltage and current

Surface and internal temperature (via thermocouples)

Gas composition (if equipped with gas analyzers)

High-speed video for visual analysis of swelling, venting, or ignition

Safety Protocols:

Automated shutdown triggers, emergency cooling, and fire suppression are integrated to contain hazards.

Key Components of a Modern System

Electromechanical or Hydraulic Actuator: Ensures consistent nail speed and force.

Climate Chamber: Allows testing at various temperatures (e.g., -40°C to 80°C) to simulate real-world conditions.

Data Logging System: Captures millisecond-level data for analysis.

Software Suite: Enables test configuration, real-time visualization, and post-test analytics (like temperature-rate curves, voltage drop timing).

The Test in Action

During a test, a fully charged battery cell is clamped in place. The nail penetrates, causing an instantaneous short circuit. Within seconds, researchers observe:

A sudden voltage drop

A rapid temperature spike (often exceeding 500°C in failing cells)

Possible venting of electrolytes, smoke, or flames

The goal isn’t to prevent a reaction altogether—that’s nearly impossible—but to ensure the cell’s response is contained and non-catastrophic. A “pass” might mean no fire, no explosion, or temperature limits staying within a defined threshold.

Why It Matters for the Future

As batteries evolve toward higher energy densities (like solid-state or silicon-anode designs), the nail test remains a vital stress test. It pushes innovation in:

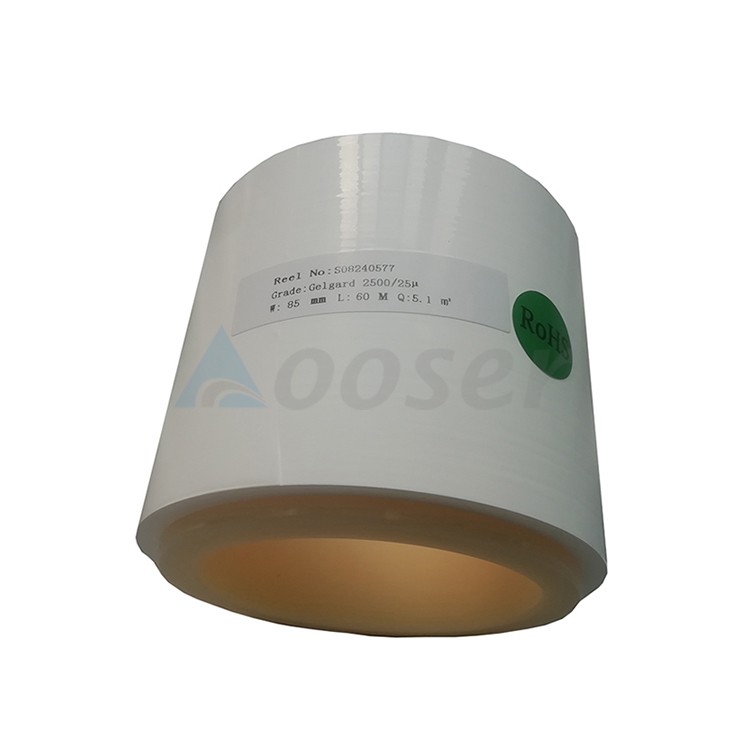

Separator technology (self-reinforcing, ceramic-coated separators)

Electrolyte additives to suppress thermal runaway

Cell architecture (module and pack-level protections)

Moreover, the data from these tests feed into digital twin models, helping simulate failure scenarios without physical testing.

Conclusion

The Battery Nail Penetration Test System is more than a destructive tool—it’s a guardian of trust. By simulating extreme abuse, it ensures that the batteries powering our lives are as safe as science and engineering can make them. For manufacturers, it’s a critical step in R&D; for consumers, it’s an invisible shield that allows us to embrace battery technology with confidence.

Next time you plug in your EV or use a portable device, remember: behind its power lies a world of rigorous testing, where a single nail helps build a safer future.
