CT-4000 three-range mA device meets 0.05% FS accuracy, DCIR test, dQ/dV differential capacity curve, μA level current unit, three-electrode test. Mainly for research institutions and universities. Application areas: true wireless bluetooth headset, button battery testing, material research.
5V20mA Button battery testerfor Analyzing Small coin cells
Introduction:
CT-4000 three-range mA device meets 0.05% FS accuracy, DCIR test, dQ/dV differential capacity curve, μA level current unit, three-electrode test. Mainly for research institutions and universities. Application areas: true wireless bluetooth headset, button battery testing, material research.
4000 series tester applications
Test objects: button batteries, power batteries, energy storage batteries, super capacitors
Battery performance test: power, energy, capacity, overcharge, overdischarge
Sorting: battery conformance testing and evaluation
Cycle life test:Battery cell,small battery module/battery pack
Rate test: rate charge test, rate discharge test
Pulse test: pulse (Pulse), mixed power pulse characteristics (HPPC)
Specifications:
|
BTS4000-5V20mA Battery Testing System |
|||||
|
Model： |
BTS4000-5V20mA |
Battery Testing System |
SN: |
CT-4008T-5V20mA-164 |
|
|
Items |
Values |
||||
|
Input AC |
AC 220V/110V ±10% / 50Hz |
||||
|
Input power |
25 W |
||||
|
Resolution |
AD:16bit;DA:16bit |
||||
|
Input impedance |
≥1G Ω |
||||
|
Voltage |
CV output range |
25mV~5V |
|||
|
Min discharge voltage |
-5V |
||||
|
Accuracy |
± 0.05% FS |
||||
|
Stability |
± 0.05% FS |
||||
|
Current |
Output range/channel |
Range1: 5μA-1mA; Range2: 1mA-10mA; Range3:10mA-20mA |
|||
|
Accuracy |
± 0.05% FS |
||||
|
CV cut-off current |
Range1: 2μA; Range2: 20μA; Range3:40μA |
||||
|
Stability |
± 0.05% FS |
||||
|
Power |
Output power/channel |
0.1 |
W |
||
|
Stability |
± 0.1% of FS |
||||
|
Time |
Current response time |
<500μs (10%FS~90%FS) |
|||
|
Working step time |
≤(365*24)h/step Time format-00:00:00.000(h,m,s,ms) |
||||
|
Data record |
Data record conditions |
Min data record interval:100ms |
|||
|
Min voltage change:10mV |
|||||
|
Min current change:2μA;20μA;40μA |
|||||
|
Frequency |
10Hz |
||||
|
Charge |
Charge modes |
CC,CV,CCCV,CP |
|||
|
Cut-off condition |
Voltage,Current,Time,Capacity,Energy,-△V |
||||
|
Discharge |
Discharge modes |
CC,CV,CCCV,CP,CR |
|||
|
Cut-off condition |
Voltage,Current,Time,Capacity, Energy |
||||
|
Pulse |
Charge |
CC, CP |
|||
|
Discharge |
CC, CP |
||||
|
Min pulse width |
500ms |
||||
|
Pulse counts |
Up to 32 |
||||
|
Chg and Dschg switch |
Supported |
||||
|
Cut-off condition |
Voltage, Time |
||||
|
DCIR |
Supported |
||||
|
Cycle |
Max cycles |
65535 |
|||
|
Max steps |
254 |
||||
|
Cycle nest |
3 |
||||
|
Protection |
Safety protection |
Power-failure data protection |
|||
|
Offline operation mode |
|||||
|
User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc. |
|||||

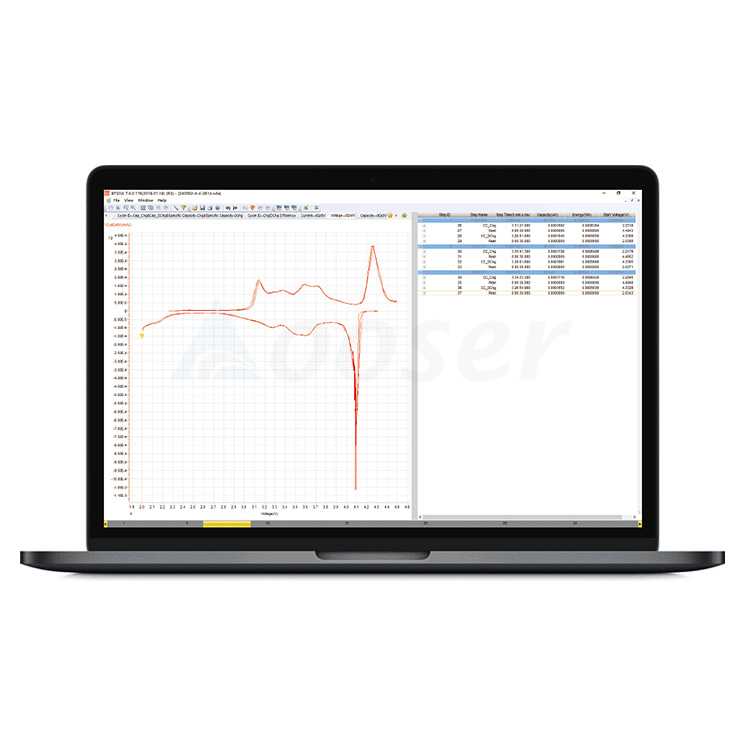

Software Interface
