Working Mode:discharge, charge, activation (discharge-charge cycle)
Communication(PC):RS485、CAN
Description:FGCD series tester adopts advanced charging and discharging technology with a variety of built-in test and maintenance modes, which are suitable for the discharge, charging and discharge-charge cycle tests of various lithium battery packs on the market.

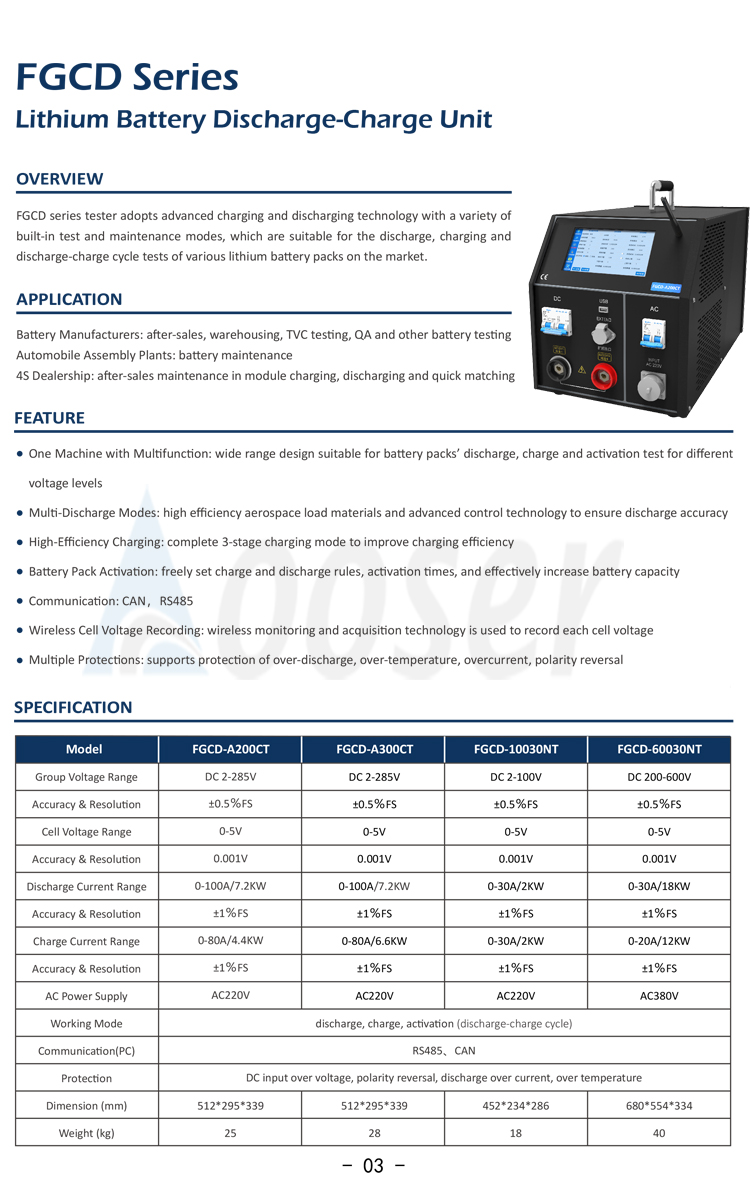

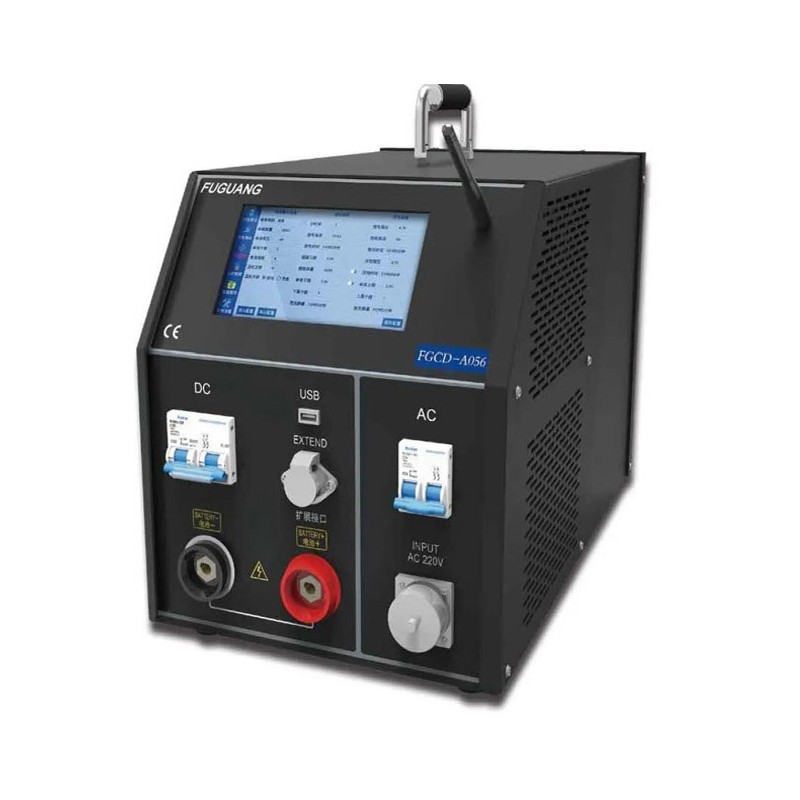

FGCD Series Tester Of Lithium Battery Discharge-Charge Unit
OVERVIEW：
FGCD series tester adopts advanced charging and discharging technology with a variety of built-in test and maintenance modes, which are suitable for the discharge, charging and discharge-charge cycle tests of various lithium battery packs on the market.
APPLICATION：
Battery Manufacturers: after-sales, warehousing, TVC testing, QA and other battery testing Automobile Assembly Plants: battery maintenance 4S Dealership: after-sales maintenance in module charging, discharging and quick matching.
FEATURE:
1.One Machine with Multifunction : wide range design suitable for battery packs’ discharge, charge and activation test for different voltage levels.
2.Multi-Discharge Modes: high efficiency aerospace load materials and advanced control technology to ensure discharge accuracy.
3.High-Efficiency Charging: complete 3-stage charging mode to improve charging efficiency.
4.Battery Pack Activation: freely set charge and discharge rules, activation times, and effectively increase battery capacity 5.Communication: CAN，RS485.
6.Wireless Cell Voltage Recording: wireless monitoring and acquisition technology is used to record each cell voltage.
7.Multiple Protections: supports protection of over-discharge, over-temperature, overcurrent, polarity reversal.
Specification:
|
Model |
FGCD-A200CT |
FGCD-A300CT |
FGCD-10030NT |
FGCD-60030NT |
|
Group Voltage Range |
DC 2-285V |
DC 2-285V |
DC 2-100V |
DC 200-600V |
|
Accuracy & Resolution |
±0.5％FS |
±0.5％FS |
±0.5％FS |
±0.5％FS |
|
Cell Voltage Range |
0-5V |
0-5V |
0-5V |
0-5V |
|
Accuracy & Resolution |
0.001V |
0.001V |
0.001V |
0.001V |
|
Discharge Current Range |
0-100A/7.2KW |
0-100A/7.2KW |
0-30A/2KW |
0-30A/18KW |
|
Accuracy & Resolution |
±1％FS |
±1％FS |
±1％FS |
±1％FS |
|
Charge Current Range |
0-80A/4.4KW |
0-80A/6.6KW |
0-30A/2KW |
0-20A/12KW |
|
Accuracy & Resolution |
±1％FS |
±1％FS |
±1％FS |
±1％FS |
|
AC Power Supply |
AC220V |
AC220V |
AC220V |
AC380V |
|
Working Mode |
discharge, charge, activation (discharge-charge cycle) |
|||
|
Communication(PC) |
RS485、CAN |
|||
|
Dimension (mm) |
512*295*339 |
512*295*339 |
452*234*286 |
680*554*334 |
|
Weight (kg) |
25 |
28 |
18 |
40 |
