Factory Price Pouch Cell Tester Battery Testing Equipment for Lab

BTS-15V6A

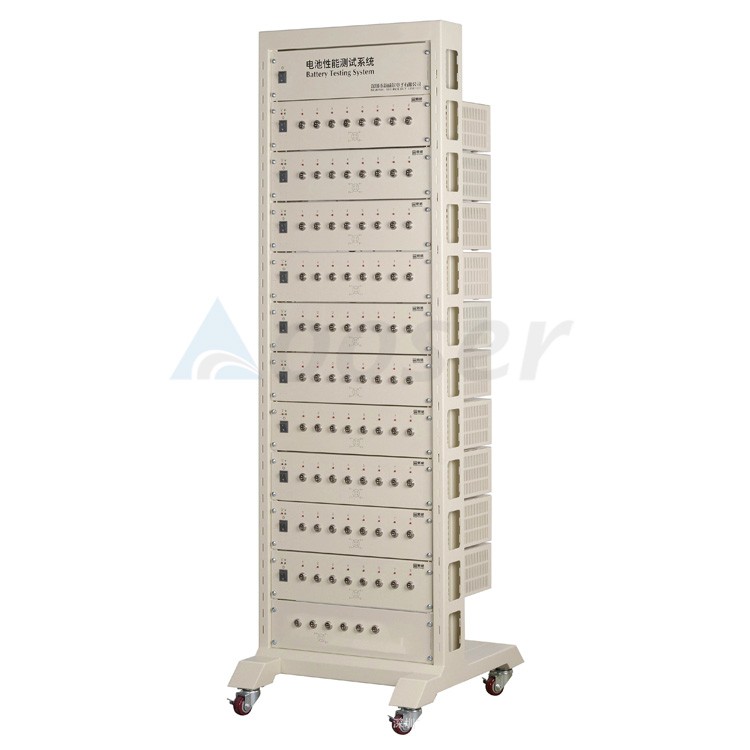

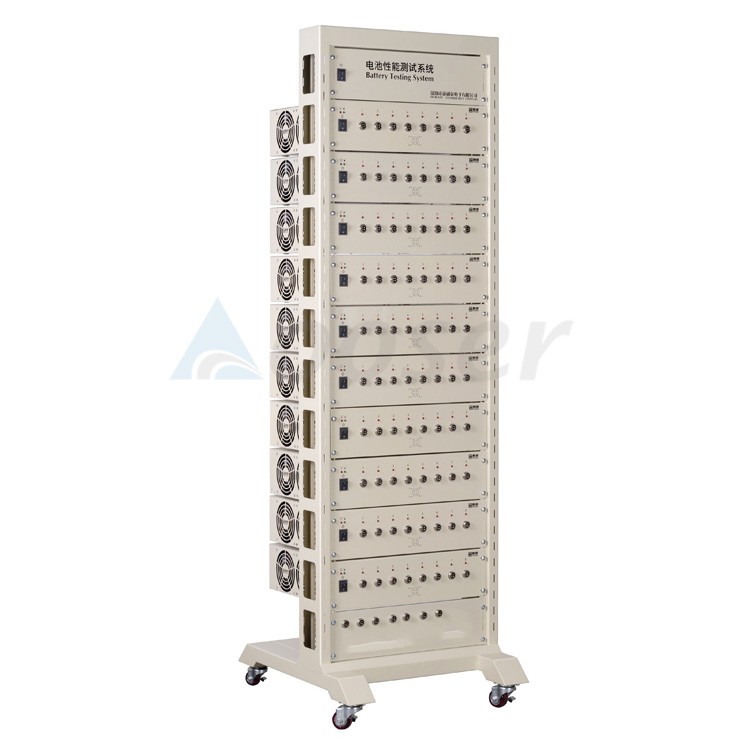

Battery Testing System

Model:

BTS-10V6A

Material Code:

CT-4008-10V6A-A

Description

Product Specification

AC Input

AC 220V±10% 50Hz

Power

729

W

Resolution

AD: 16bit; DA: 16bit

Impedance Input

≥1MΩ

Voltage

Measuring Range

0.05V~10V

Discharge Min Voltage

2.5V

Accuracy

± 0.1%  of  FS

Stability

± 0.1%  of  FS

Current

Range

Charge: 30mA~6A                  Discharge: 30mA~6A

Accuracy

± 0.1%  of  FS

Stability

± 0.1%  of  FS

Power

Output Power Per Channel

60W

Stability

± 0.2%  of  FS

Time

Rise Time

20ms (10%FS~90%FS)

StepTime

≤ (365*24) hour/step

Time Format 00：00：00：000 (h:min:s:ms)

Data Acquisition

Intervals

Time intervalt:100ms

Voltage interval:20mV

Current interval: 12mA

Frequency

10Hz

Charge

Modes of Operation

CCC, CVC, CC & CVC, CPC

End Conditions

Voltage, Current, Test  Time, Capacity,-△V

Discharge

Modes of Operation

CCD, CPD, CRD

End Conditions

Voltage, Current, Test Time, Capacity

Pulse

Charge

CCC

Discharge

CCD

Minimum Pulse Width

500ms

Automated Switch

Automated switch from charge to discharge for each pulse

End  Condition

Voltage, Test Time

DCIR

Supported

Cycle

Cycles

65535

Steps

254

Nested Function

Max three levels of loops

Protective Function

● Power-off data protection

●User-defined safety (upper and lower) tolerance of current, voltage and delay time

Reverse-connecting protection

Channel Features

Independent pairs of closed loop for constant current source and constant voltage source

Channels

Independent control

Detection and Sampling

4-wire Connecting

Noise Density

<85dB

Communication Means

RS232

Exports Formats

EXCEL, TXT, Graph

Communication Interface

Serial Port

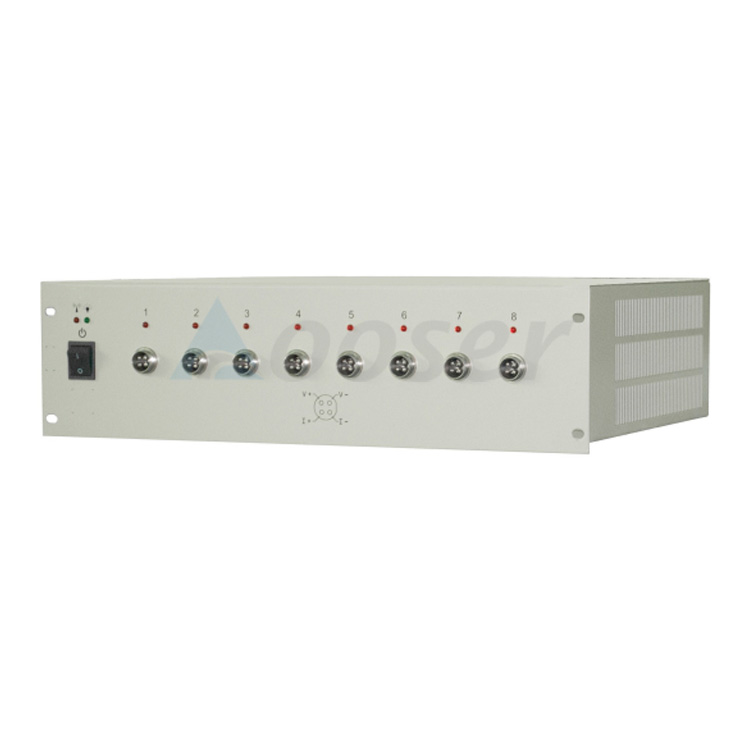

Number of Channels Per Cabinet

8

Operating  Environment

Description

Product Specification

Operating Temperature

0℃~40℃

Storage Temperature

-10℃~50℃

Operating Humidity

≤70% RH

Storage Humidity

≤80% RH

Description

Product Specification

Battery Holder

Universal Holder

Dimensions（W*D*H）(mm)

3U19”，480*580*130
