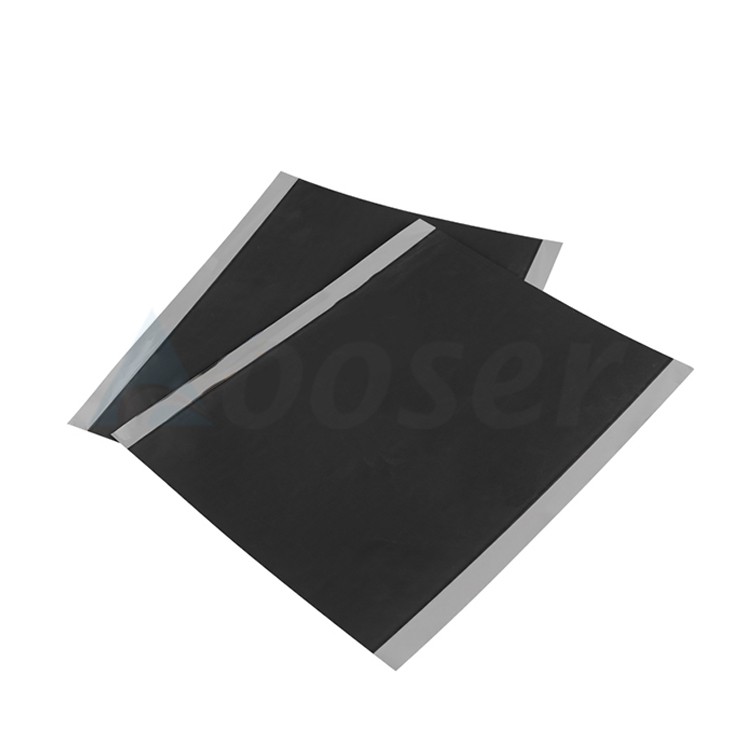

Hard Carbon Coated Aluminum Foil for Sodium Battery Cathode Materials

Product name: Hard Carbon Coated Al Foil

Total Area: 241 mm L x 200 mm W x 110 um T

Coating Area: 241 mm L x 175 mm W

Hard Carbon Coated Aluminum Foil for Sodium Battery Cathode Materials

This electrode sheet is based on aluminum foil coated with hard carbon ,used as a cathode electrode of sodium ion battery material.

Specification:

Product name	Na-ion Battery Electrode Sheet
Total Area	241 mm L x 200 mm W x 110 um T
Coating Area	241 mm L x 175 mm W
Type	Single side coating
Coating thickness	80-110 um
Current collector	16 um thickness Aluminum foil
Coating density	6.3+0.2mg / cm^2
Aluminum substrate density	4.22 mg / cm^2
Active Material Proportion	92%
Specific Capacity	280+30mAh/g

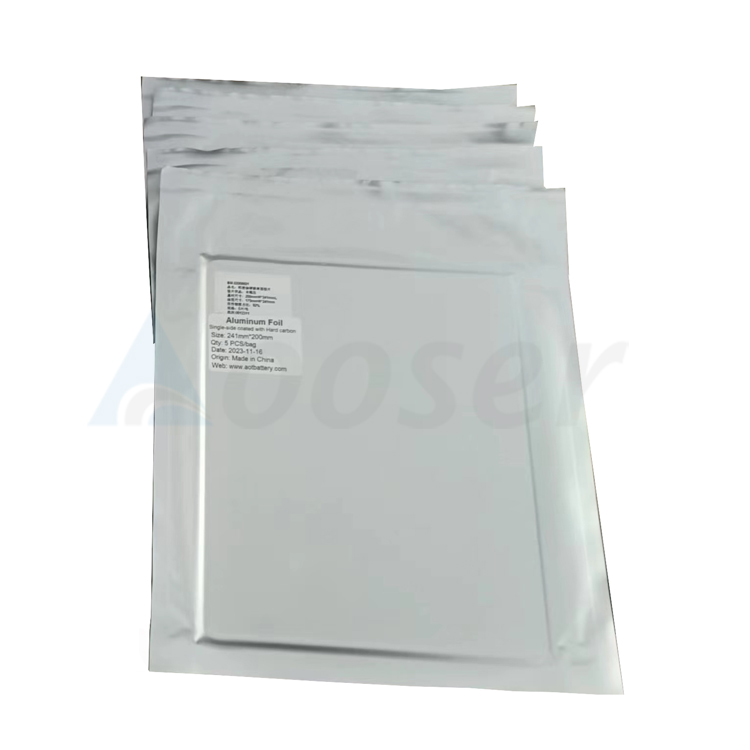

Qty	5 sheets / bag

Hard Carbon Coated Aluminum Foil
