Hot Rolling Press with Asynchronous Speed for Dry Electrode and Solid State Electrolyte Fabrication

Model:AS-MSK-BPC-DF200

Product Origin:China

Product Description:AS-MSK-BPC-DF200 three-roll continuous roller press, 15 tons of independent pressure control, 200 ℃ accurate temperature control, ± 2.5 μm roll seam accuracy, suitable for lithium dry electrode and solid electrolyte sheet preparation, three-roll independent speed control system, dry electrode high-density roll pressing special equipment.

EMAIL

Product Description

AS-MSK-BPC-DF200 is a three-roller continuous rolling press with various speeds to prepare a lithium-ion battery's dry electrode and solid-state electrolyte sheet. Three pairs of rolls can be independently controlled under a pressure of 8T Max.


Parameter

Product Model

AS-MSK-BPC-DF200

Power

AC220±10%, single phase, 50/60Hz
5KW

Rollers

Roller materials: Hardening Cr12MoV
Roller size: Ø150 mm x 220 mm
Hardness: HRC 58 - 62
Roller Gap: 0 - 2.5 mm
Gap accuracy: +/- 2.5 um

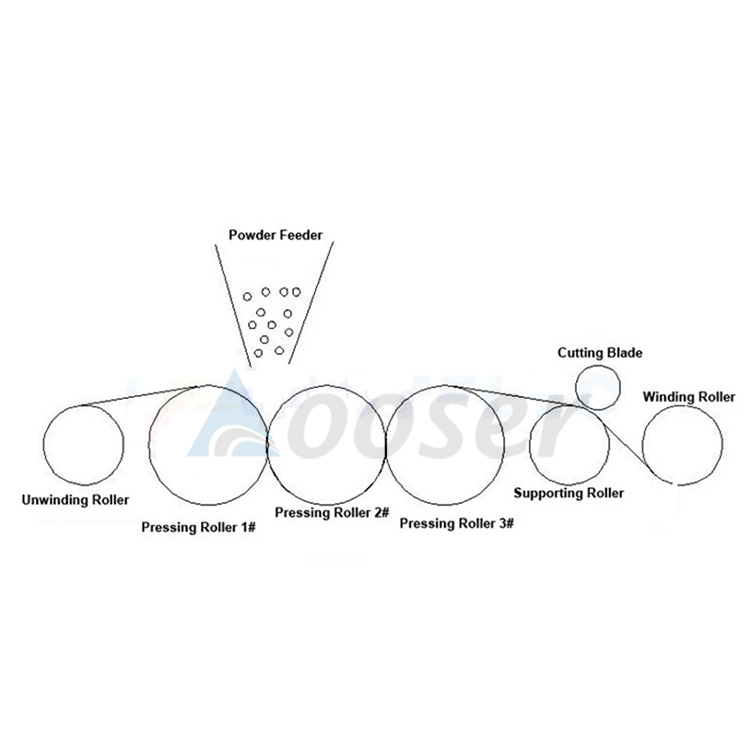

Working Mechanism

The content here is not fully displayed in the original picture. If there is relevant information, it can be supplemented here)

Roller Temperature

200°C Max., each roller temperature can be adjusted independently.

Maximum Electrode Width

200mm Max.

Rolling Pressure

15T Max., each roller pressure can be adjusted independently. Applied force resolution: ±0.30Kg.

Rolling Speed

0.3 - 2 m/min, each roller speed can be adjusted independently.

Recommended Working Environment

25 ± 3°C, no vibration or electromagnetic interference

Overall Dimensions:

1200mm L x 680mm W x 1400mm H

Net weight:

600 kg

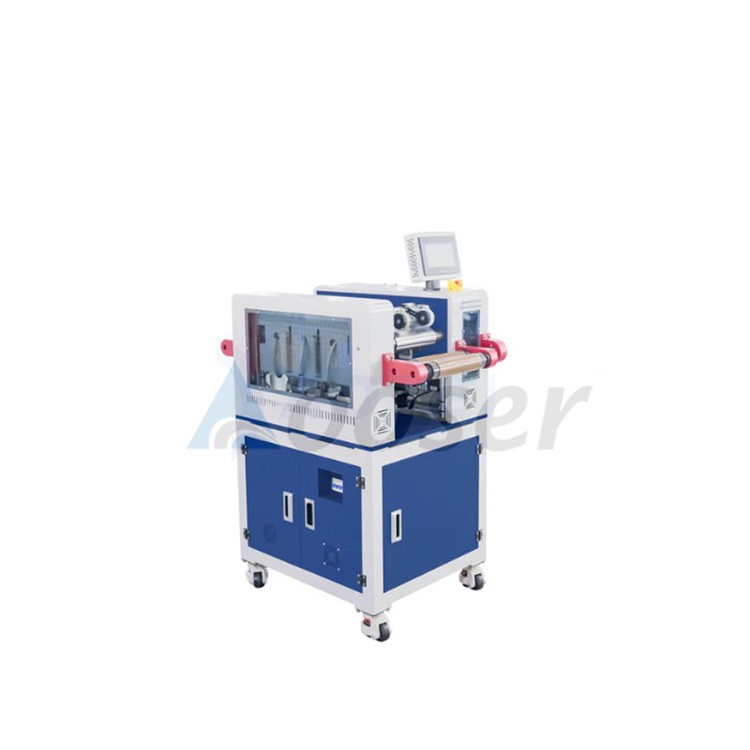

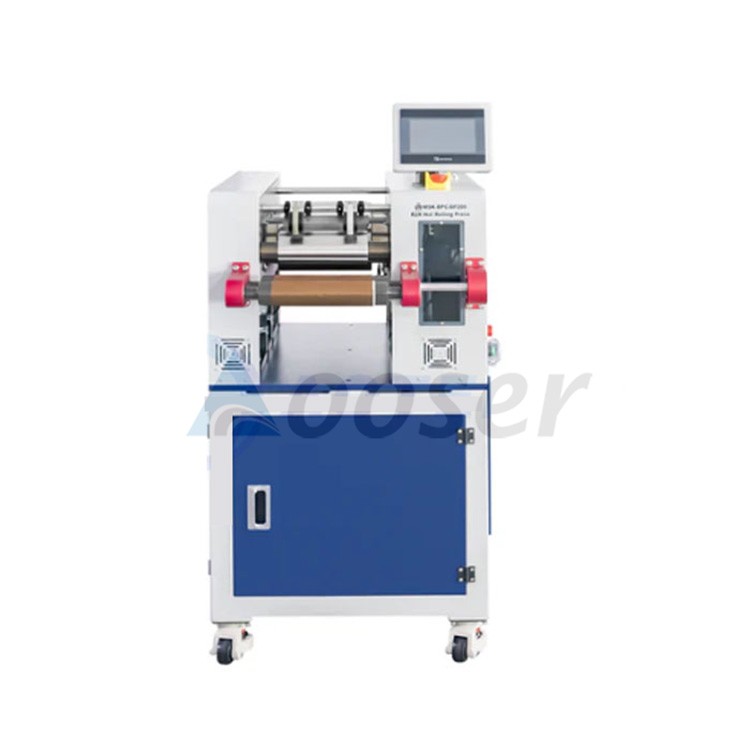

Hot Rolling Press

Hot Rolling Press
