  • Variable Pressure Short Circuit Test System for Pouch Battery Safety Performance Testing

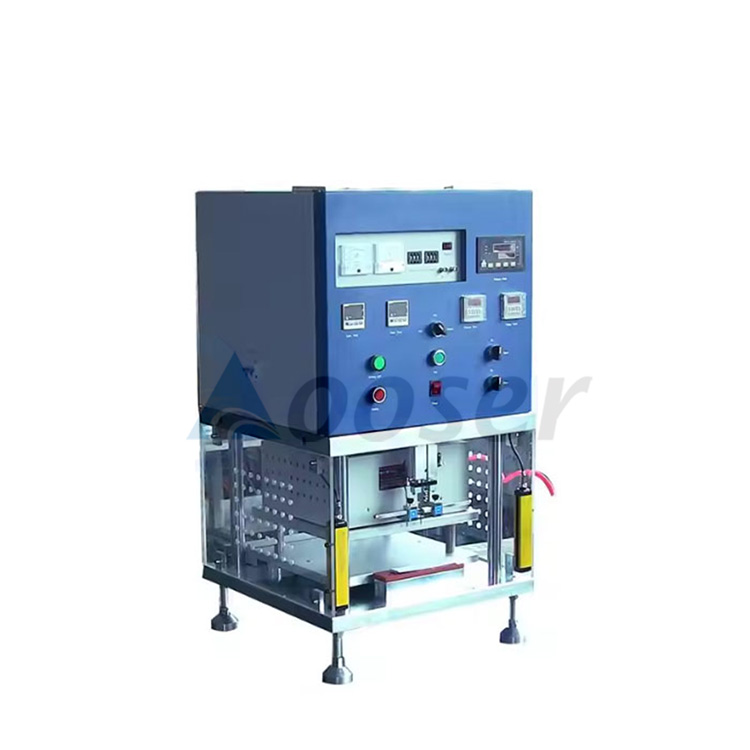

Variable Pressure Short Circuit Test System for Pouch Battery Safety Performance Testing

Variable Pressure Short Circuit Test System for Pouch Battery Safety Performance Testing

Model:AS-MSK-TE910

Product Origin:China

Product Description:AS-MSK-TE910 Variable Pressure Short Circuit Test System, special equipment for soft pack battery safety performance testing, 0-900kg pressure regulation, 130℃ temperature control, DC 500V insulation resistance test, 50μA leakage current precision, support automatic alarm and dual mode operation.

EMAIL

Product Description

MSK-TE910 Short Circuit Test System allows for testing pouch cell or its battery pack with adjustable temperature and pressure. Such a system has two test methods which are auto-mode and manual-mode. What's more, this machine tests insulation resistance precisely to recognize the micro circuit status of the battery in order to test the safety issue of the battery.


Parameter

Product Model

AS-MSK-TE910

Features

Adjustable temperature control

Adjustable pressure control

Working Voltage

AC220V±10% 50/60Hz

Working Pressure

0~900Kg ±3Kg

Working Distance

0-80mm

Working Temperature

Upper and Lower Platen:130ºC±5ºC Max.

Pouch Battery Size

300 x 300 x 70mm Max.

Short Circuit

Auto alarm

Testing Input Voltage

DC 0~500V adjustable

Max. Measurable Leakage Current

50 uA

Resistivity Measurement Range

Max. 199MΩ

Testing Period

0~99 Seconds adjustable (2~3 seconds is suggested)

Product Dimensions

500mm x 500mm x 1025mm (L x W x H)

Weight

220kg

Variable Pressure Short Circuit Test System
