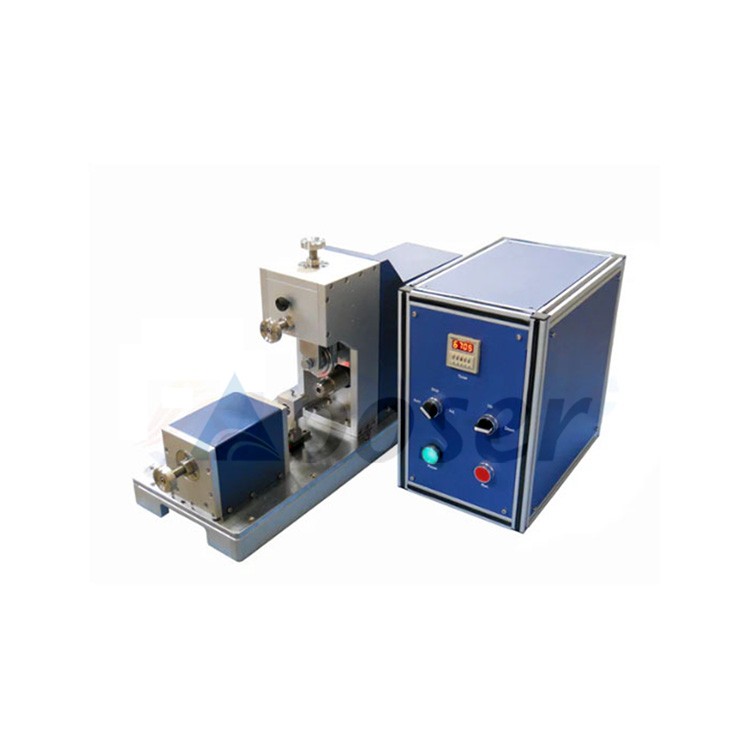

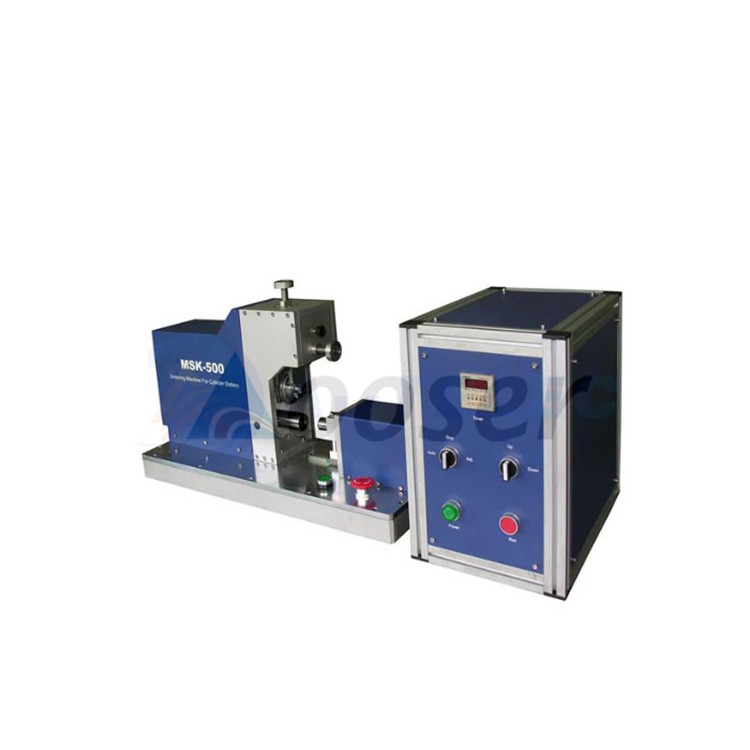

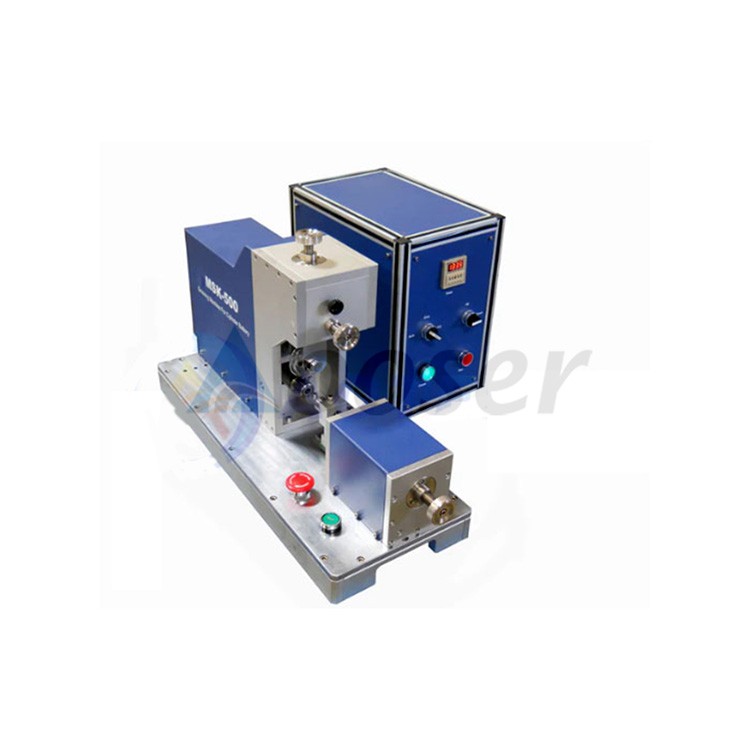

Semi-Automatic Grooving Machine for Cylindrical Battery Case Precision Processing

Semi-Automatic Grooving Machine for Cylindrical Battery Case Precision Processing

Model:AS-MSK-500

Product Origin:China

Product Description:AS-MSK-500 Series is semi-auto grooving machine. It is used for grooving various cylindrical cases including CR123,18650,21700,26650, 32650 and AA.

Product Description

AS-MSK-500 semi-automatic grooving machine is designed for precision processing of cylindrical battery shells, supporting CR123, 18650, 21700, 26650 and other mainstream models, the slotting depth of the machine is 1.2-2.0mm, the width of 1.1-1.5mm, the accuracy can be up to ± 0.1mm, the equipment mainly adopts a pneumatic drive system, which can be adapted to the air source of more than 0.5MPa, the blade durability of more than 1 million times, the production efficiency of 400 times an hour. Air source, blade durability of more than 1 million times, production efficiency of 400 times / hour. The size of the whole machine is 600×230×350mm, weight 68kg, desktop design can be compatible with the laboratory and small-scale production line, to meet the demand for efficient grooving and long-term stable processing of cylindrical battery shell.

Parameter

Product Model	AS-MSK-500
Working Voltage	110V/220V AC, 50/60Hz Single Phase
Max. Power Consumption	140W
Air Pressure	>0.5 MPa is required Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Compatibility	CR123 / 18650 / 26650 / 32650 / AA (Please select the cell type in the option bar)
Grooving Dimensions	Depth: 1.2 - 2.0 mm Width: 1.1 - 1.5 mm
Grooving Accuracy	+/- 0.1 mm
Grooving Blade Durability	>1 million times
Productivity	400 grooving per hour
Product Dimensions	600mm(L) x 230mm(W) x 350mm(H) (24" x 9" x 14")
Net Weight	68 kg (150 lbs)

Semi-Automatic Grooving Machine
