Wide Width Precision Coater for Large-Size Films and Functional Coating

Wide Width Precision Coater for Large-Size Films and Functional Coating

Model:AS-MSK-AFA-W500

Product Origin:China

Product Description:AS-MSK-AFA-W500 is a Large Automatic Film Coater designed for producing films up to 500 mm Width x 1000 mm length. One pair of digital micrometers is included for adjusting film thickness up to 5 mm. It has a unique driving system to produce a smooth coating on all types of materials.

Product Description

AS-MSK-AFA-W500 Wide Width Precision Coater is designed for the production of large-size films and functional coatings. Equipped with a 500mm wide coating head and a precision marble platform (flatness ±2μm), the machine supports traverse speeds of 500-5000mm/min and coating speeds of 2-30mm/s, with a thickness accuracy of ±5μm or 10%. The equipment comes standard with magnetic fixture and residual slurry collection tray, suitable for 550×1100mm substrate fixing, expandable to 650mm wide and 2000mm long Slot-die coating head (optional). Integrated AC220V low-power system and mobile lifting platform, optional 100 ℃ heating hood to realize the integration of coating and drying, to meet the needs of photovoltaic backsheets, flexible electronics and composite materials, laboratory research and development and pilot production.

Parameter

Product Model	AS-MSK-AFA-W500
Power	AC220V 60Hz 50W
Traverse Speed	500 - 5000 mm/minute Accuracy: 10mm/sec
Coating Length	10 to 999 mm (adjustable in continuous mode, ±1 mm deviation, recommend ≤ 920 mm)
Coating Speed	2 to 30 mm/s (deviation ≤ 1 mm/s)

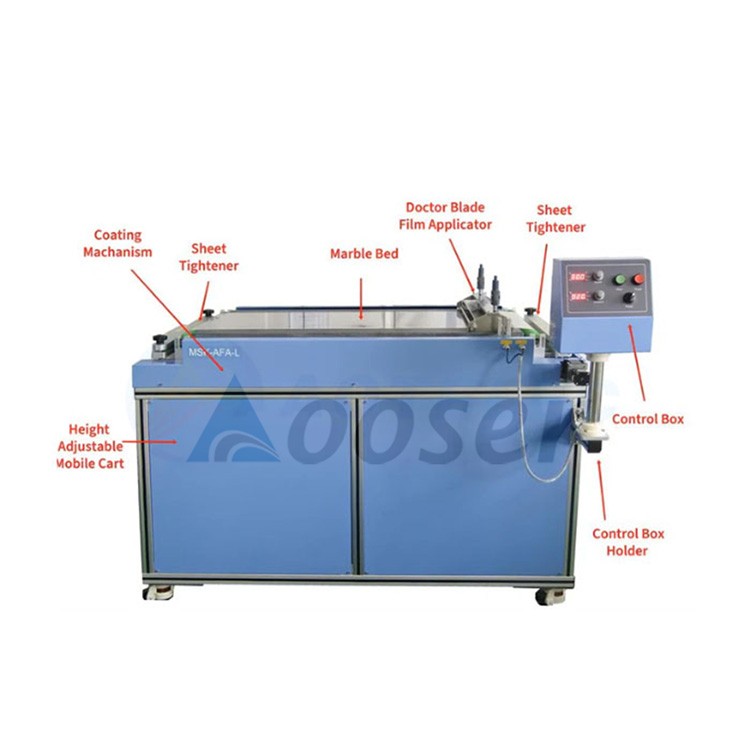

Platform	The platform is made of precision marble Surface flatness is < +/- 2 microns Area: 550 mm width x 1100 mm Length One tightened fixture built-in right side for fixing the substrate Magnetic clampings are installed on two sides of the stage. One tray is included in the left end to collect The residual slurry The platform is installed on the mobile cart with the wheel height adjustable.

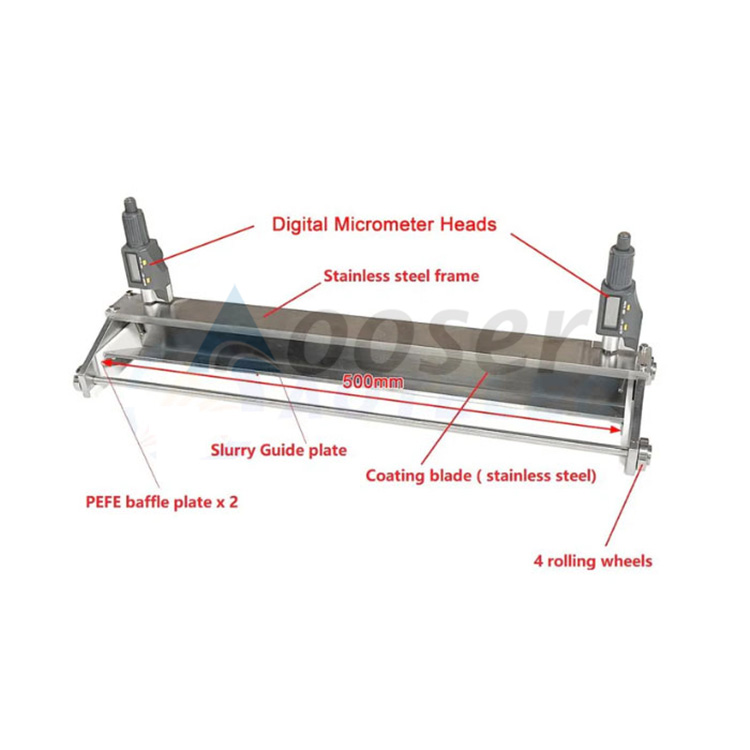

Film Applicator	One doctor-blade Film Applicator with 4 precision rolling wheels for easy moving PEFE baffle plats with slurry guide plates is put inside the frame ( see picture left for details) Standard Width 500 mm Coating thickness accuracy: +/- 5 microns or 10% of film thickness
Optional for slot-die coating	500 mm width Slot die coating head is available as the picture left at an extra cost. This coater can be upgraded up to 650 mm width x 2000 mm length slot-die coating. Please contact us for details
Heating cover	Optional top-side heating cover is available up to 100oC for drying

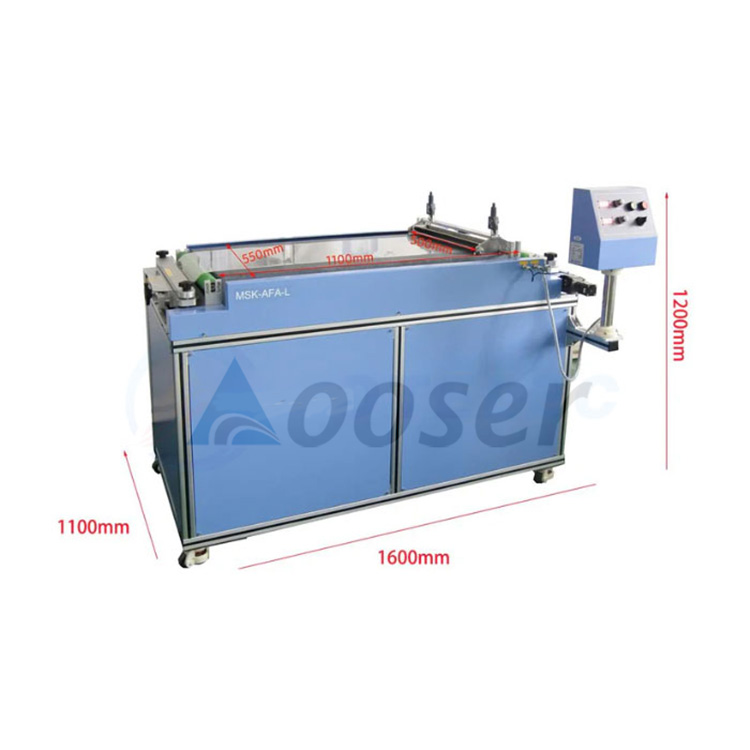

Product Dimensions	1600L×1000W×1200Hmm
Weight	280KG
