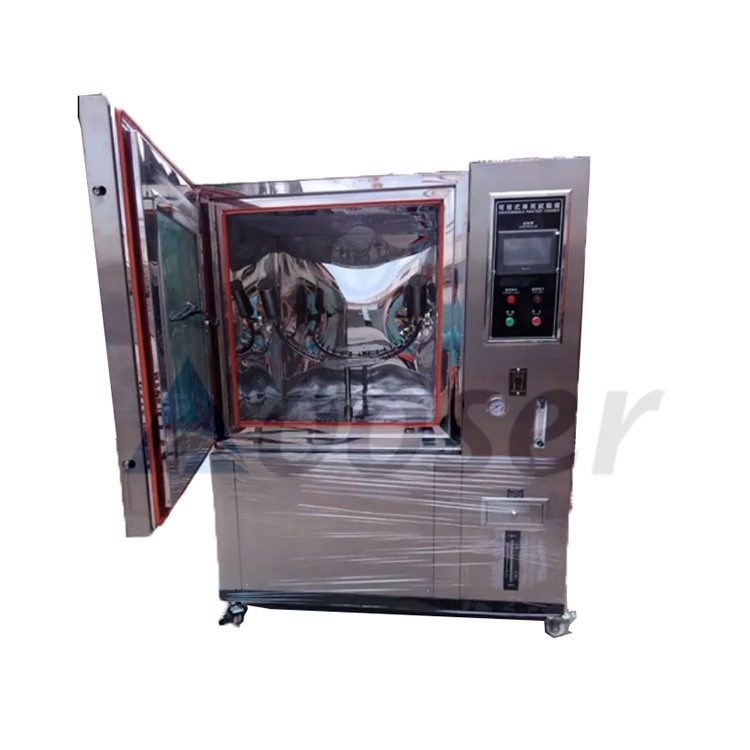

Rain Testing Chamber for Battery Lab Equipment

Rain Testing Chamber for Battery Lab Equipment

Model:AS-RT-IP34

Product Origin:China

Product description: The AS-RT-IP34 is suitable for testing the rain, dust, and sand immersion of various industrial electronic products such as automotive parts and electronic appliances. Automotive parts include testing the fully sealed stability of systems such as car lights, door locks, electrical systems, instruments, dust covers, and electronic household appliances. The tested object is installed or placed in the center position of a semi-circular curved tube, and the bottom of the splashed sample is at a horizontal position with the swing axis. During the test, the sample rotates around its center line.

EMAIL

Product Description

The AS-RT-IP34 rain test chamber is designed specifically for IPX3/IPX4 waterproof and dustproof testing of automotive components and electronic and electrical products. The dimensions of the chamber are 800 × 800 × 800mm, equipped with SUS304 stainless steel nozzles (aperture 0.4mm, spacing 50mm), supporting 120 ° -180 ° spray angle adjustment and 0.7-5rpm sample table rotation. The servo motor drives the swing tube to achieve precise swing from ± 45 ° to ± 180 °, with adjustable water pressure of 80-100kPa and precise control of flow rate of 1-7L/min. It is suitable for testing sealing components such as car lights, door locks, and instruments. The PPR pipeline system integrates the automatic drainage function, and can simulate rainstorm, sand and dust and other multi scene erosion tests with shallow water pan evaporation heating and explosion-proof observation window (with wiper). The device is equipped with a built-in three-phase voltage protection and temperature monitoring module, suitable for laboratory environments without strong vibration and low dust, providing a reliability verification solution that complies with IEC standards for new energy vehicle electronics and outdoor equipment.


Parameter

Item Name

Rain Testing Chamber

Model

AS-RT-IP34

Source voltage

AC 220V AC 50Hz

Inner size

800mm x 800mm x 800mm

Nozzle material

SUS304 stainless steel

Spray hole diameter

0.4mm

Spray hole spacing

50mm

Spray pipe diameter

16mm

Spray ring radius

R375mm

Adjustable nozzle angle

120 degrees (IPX3), 180 degrees (IPX4).

Water pressure bar

Adjustable water flow rate according to regulations

Test product distance

100mm to 600mm

The rotation speed of the stage

0.7-5 revolutions per minute can be adjusted

Flow rate

1-7L/min

Airflow velocity

1.0m/s (adjustable water flow velocity)

Pressure gauge

1 piece, water pressure in rain is about 80-100KPa

Test time

0-999min adjustable control

Swing angle amplitude

± 45 °, ± 60 °, ± 90 °, ± 180 ° (adjustable)

After the experiment is completed, the accumulated water in the water pipe can be automatically drained.

The swing tube is driven by a servo motor, with high precision and accurate time and swing amplitude.

Water supply pipeline: PPR pipes are used for equipment water supply and arranged according to the box distribution, controlled by the equipment control system cabinet.

Heating method: stainless steel heating tube is used, and the surface of the shallow water plate evaporates;

The spray cycle inside the box is adjustable, and the box door is equipped with an observation window to observe the status of the samples inside the box. Window wiper, explosion-proof window.
