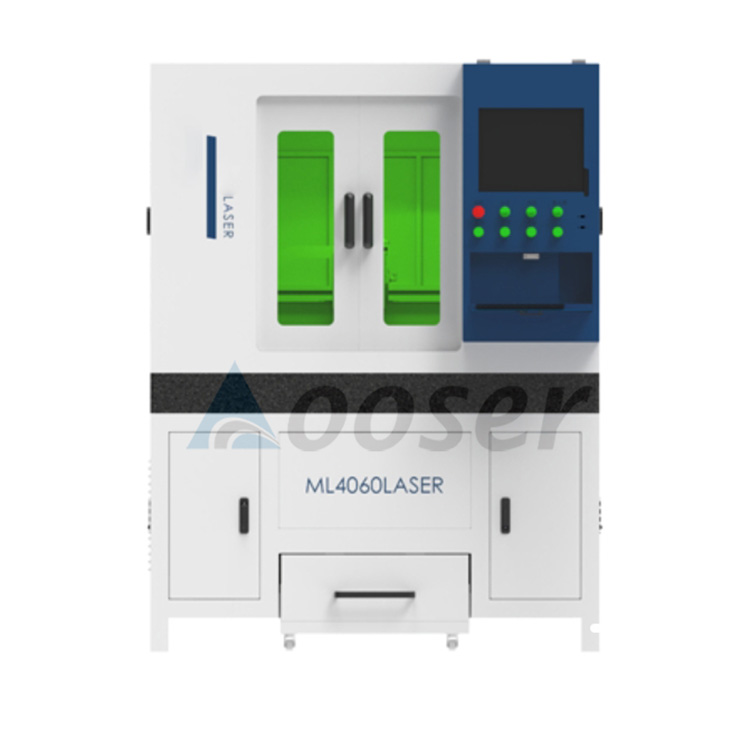

Laser Cutting Machine for Battery Lab Equipment

Model:AS-ML-4060

Product Origin:China

Product description: The 4060 series precision cutting machine is a small format, low-cost, high-precision, practical and economical product. Suitable for cutting various metal strips, battery busbars, hardware, metal jewelry, and titanium alloy glasses industries. The marble linear motor platform ensures long-term stable operation, with a single/dual drive structure design that lowers the entry barrier for users and balances economic practicality.

Product Description

The AOT-ML-4060 precision laser cutter is designed for thin metal strips and precision parts. It has an adjustable 1500W - 6000W laser source (1064nm wavelength), achieving ±0.05mm cutting accuracy and ±0.002mm repeatable positioning accuracy. With a marble linear motor platform and intelligent automatic height - adjustment system, it can cut materials like nickel/copper strips (0.1 - 0.8mm), battery tabs, and titanium - alloy eyeglass frames without burrs. The 400×600mm processing area and water - cooling thermostat support 24 - hour continuous operation. The optional CCD vision - positioning system can identify micro - hole structures as small as 0.01mm. Weighing 1600kg, its dual - drive structure simplifies operation. With a 15 - 25 - day delivery time, it meets the low - cost, high - precision processing needs of industries like hardware, jewelry, and new - energy battery components.

Item	Technical Parameter
Model	AOT-ML-4060
AC source	220V (380V/50Hz/60A)
Powder	≤ 5500W (according to laser power)
Laser power	150W - 6000W optional
Cutting Area	400mm x 600mm
Laser Wavelength	1064 nm
Cutting precision	±0.05mm (based on the material and thickness)
Repeated positioning accuracy	≤ ±0.002mm
Cooling method	Water cooling
Trace method	Intelligent automatic height adjustment system
Material of bed	Marble
Drive mode	Liner motor
CCD Vision	Optional
Dimension	1600x1600x1900mm
Weight	1600 Kg
