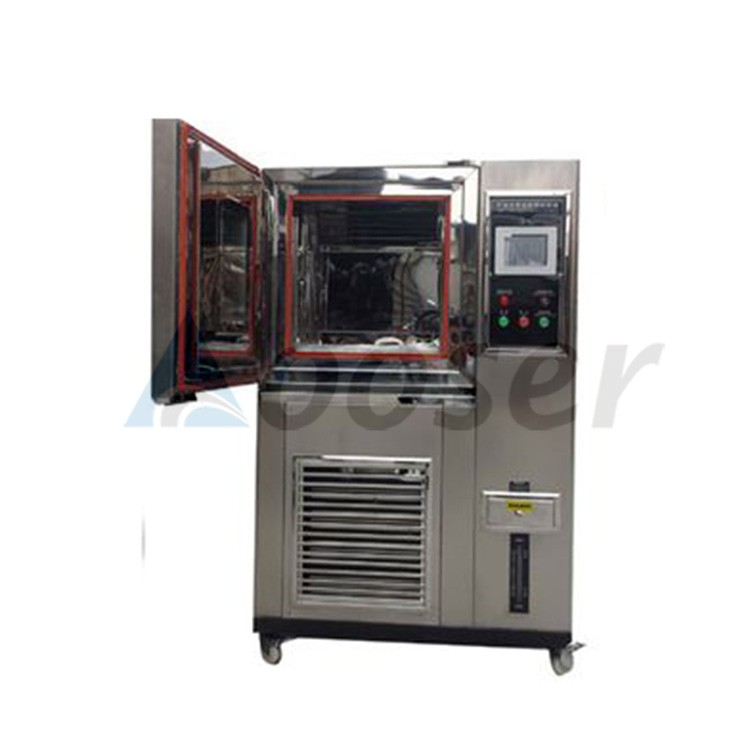

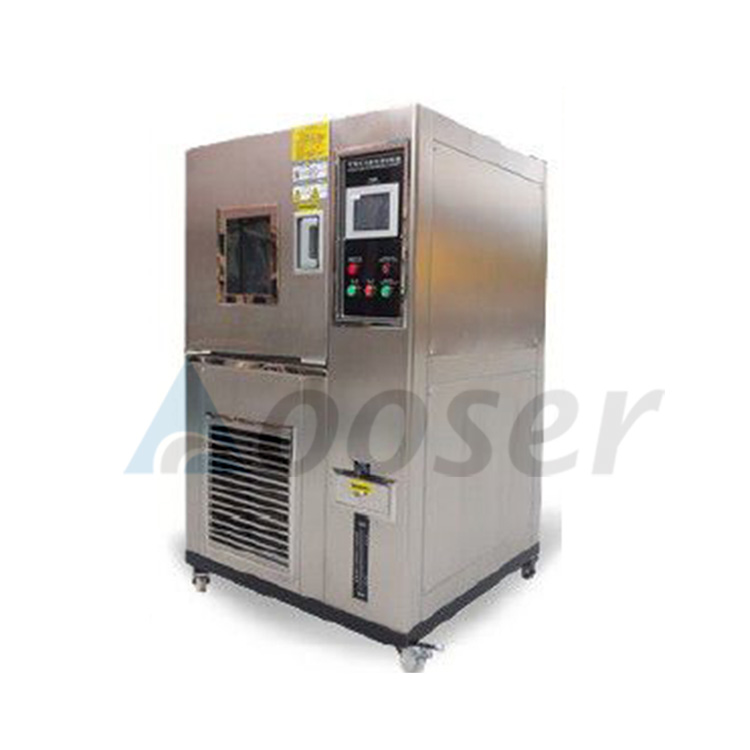

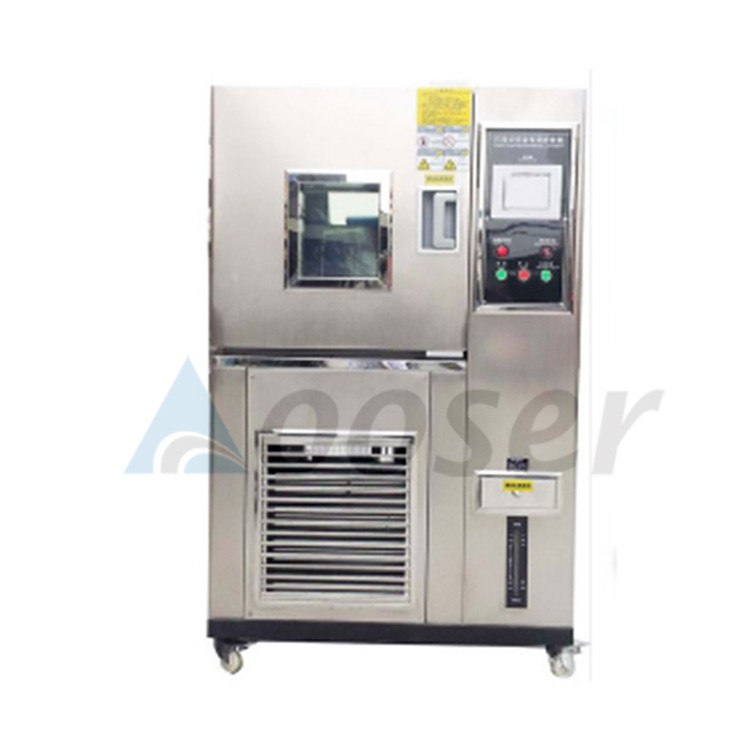

UV Aging and Rain Test Chamber for Evaluating the Weather Resistance Performance of Materials

Model:AS-UVIP-2W

Product Origin:China

Product description: AS-UVIP-2W ultraviolet aging test chamber, UVA-340 lamp simulation sunlight ultraviolet, temperature control accuracy ± 0.5 ℃, automatic spray and condensation cycle, 304 stainless steel box, 1600 hours lamp life, material weathering test special equipment.

EMAIL

Product Description


The UV Aging and Rain Test Chamber  uses a fluorescent UV lamp that best simulates the UV spectrum in sunlight, and combines temperature control, humidity supply, and other devices to simulate factors such as high temperature, high humidity, condensation, and dark rain cycles caused by sunlight (UV) that can cause color change, brightness, intensity decrease, cracking, peeling, powdering, oxidation, and other damage to materials. At the same time, the synergistic effect between UV light and moisture weakens or fails the material's single light resistance or single moisture resistance, making it widely used for evaluating the material's weather resistance performance. The equipment provides the best sunlight UV simulation, has low maintenance costs, is easy to use, adopts automatic control operation, high automation of the test cycle, good light stability, and high reproducibility of test results.

Structure and Material

1. Test box space: width 500 x depth 500 x height 600mm

2. Dimensions: Width 1050 * Depth 970 * Height 1460mm

3. Unit material: Internal and external 304 stainless steel

4. Sample rack: Aluminum alloy frame type base frame visual panel

5. Controller: Color touch screen programmable controller

6. Radiation tube: UVA-340

7. Power supply residual current circuit breaker control circuit overload short circuit alarm, over temperature alarm, water shortage protection

Parameters

Item Name

UV Aging and Rain Test Chamber

Model

AOT-UVIP-2W

Source voltage

AC 110V-220V AC 50Hz/60Hz

Temperature range

RT+10℃~70℃

Humidity range

≥95%RH

Temperature uniformity

±1

Temperature fluctuation

±0.5℃

Irradiance

Adjustable within 2W/m2

Functions

Adjustable light, condensation, and spray test cycles

Light tube

L=600/40W6 units (UVA/UVB with a lifespan of over 1600h)

Control panel

Colorful touch screen

Temp control method

PID self-tuning SSR control

Ultraviolet wavelength

UVA range is 315-400nm; UVB range is 280-315nm

Test time

0~999H (adjustable)

Radiation blackboard temperature

40 ℃~70 ℃

Standard Configurations

The unit has automatic spray function

Inner dimension

500mm W x 500mmD x 600mmH

Structure description

1. The box is made of CNC equipment, with advanced technology, smooth lines, and beautiful appearance

2. The material of the box is 1.2mm thick 304SUS mirror stainless steel

3. The air duct inside the box adopts a single circulation system, with an imported axial flow fan, which improves the air flow brightness and heating capacity, and significantly improves the temperature uniformity inside the test box

4. Lamp lifespan: over 1600h

5. Water source and consumption: approximately 8 liters/day of tap water or distilled water

6. The heating method is an inner tank sink type heating, with fast heating and uniform temperature distribution

7. The lid of the box is a double-sided flip cover, which can be easily and freely closed

8. Automatic replenishment of water level in the inner tank to prevent damage caused by empty burning of the heating tube

9. The sample holder is made of stainless steel or aluminum alloy

10. The bottom of the unit is fixed with high-quality PU movable wheels

11. The sprinkler system is equipped with automatic nozzles and adjustable water pressure inside

Safety protection device

1. Grounding protection

2. Power overload short-circuit circuit breaker

3. Control circuit overload and short-circuit fuse

4. Water shortage protection

5. Overtemperature protection

Heating system

1. Adopting U-shaped titanium alloy high-speed heating electric heating tube

2. Temperature control and lighting are completely independent systems

3. The temperature control output power is calculated by a microcomputer to achieve high-precision and high-efficiency electricity efficiency

4. The heating system has anti overheating function:

5. The blackboard temperature is controlled by a color touch screen programmable controller, and the output power is calculated by a microcomputer with PID self-tuning. The monitoring uses a standard PT100 blackboard temperature sensor.

6. The temperature of the sink is controlled by a color touch screen program and a Korean temperature controller. The sink is located at the bottom of the box and is equipped with an electric water heater. During the testing process, there is a dark condensation process that requires the box to generate saturated water vapor at a relatively high temperature. When the water vapor encounters a relatively cold surface of the sample, it will condense on the surface of the sample.

Spray system

1. Spray uniformity adjustment. Utilize the manual control function of the controller. Observe the spray status while the door is open

2. Spray status monitoring: The machine is equipped with a spray device. The sprinkler system simulates temperature fluctuations and rainwater erosion during rainfall There are several nozzles in total. Spray evenly When to spray. The duration of spraying is freely set by the customer

UV Aging and Rain Test Chamber
