Laboratory Automatic Digital Spin Coater and Vacuum Spin Coater for Glue Spin Coating

Model:AS-VTC-100A

Product Origin:China

Product Description:AS-VTC-100A compact spin coater, 4-inch wafer dedicated, 500-8000rpm two-stage programming, corrosion-resistant PP vacuum suction cups, compatible with irregular substrate sol-gel coating, laboratory-grade high-precision film thickness control, plug-and-play compact design.

EMAIL

Product Description

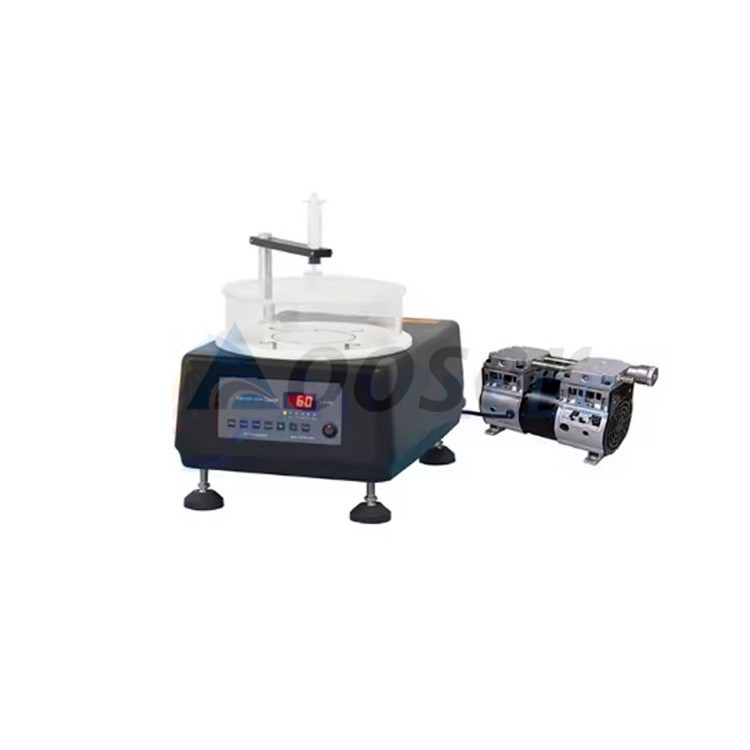

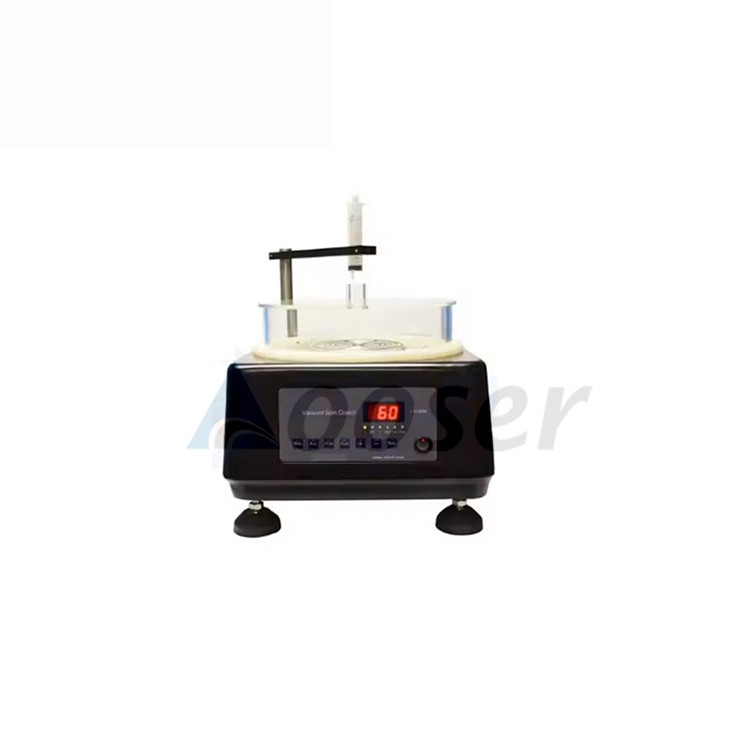

AS-VTC-100A is a compact spin coater with vacuum chucks designed for easy and quick coating via sol-gel for wafers up to 4". The spinning speed is variable from 500-8000 rpm with two programmable segments. The package comes included with complete accessories for immediate use.


Parameter

Product Model

AS-VTC-100A

Structure

An aluminum casting case to keep spinning stably

The liquid disk is made of Polypropylene (PP) to resist most of the corrosive solutions

The drainage outlet and vacuum pump connector are on the back panel

One filter is included in the standard package. It is used to connect the coater to prevent wastewater from flowing into the pump

One oil-less vacuum pump is included in the standard package, Please click here for specification details.

Chamber & Vacuum Chuck

Chamber Diameter: 145 mm

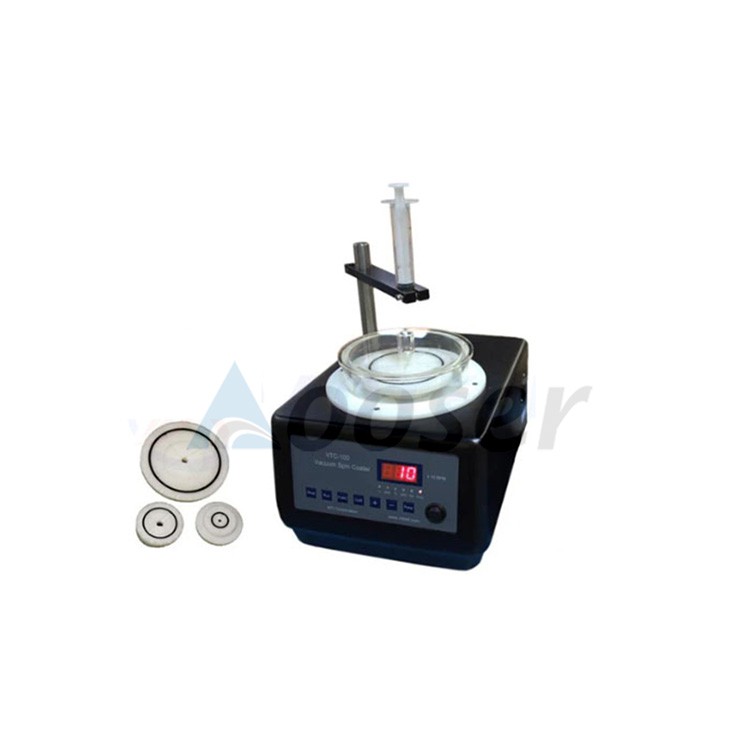

3 sets of PP anti-corrosive vacuum chucks with chuck o-ring come in different sizes (1'', 2'', and 4'')

1 piece of adhesive tape (6'' W x 24'' L) is included for coating irregularly shaped substrates (e.g. Place the irregular substrate on the adhesive tape, then the vacuum chuck will hold the tape by suction)

Mini suction cups are available for the small wafer with less than 1" Dia. or substrate with regular ( 5x5, or 10x10mm) or irregular shapes. Please click here to order. at extra cost. ( see picture below right )

Vacuum Pump (Not included)

From 09/07/2022, 120L/min Oilless Vacuum Pump is not included.

Vacuum grade rubber pipe is included for immediate use.

Spin Speed & Time

Digital control panel with TWO programmable segments for different spin times and speeds

Spinning speed: 500 - 8000 RPM

Spinning Time: 1 - 60s

Liquid Injecting

20mL syringe is used to contain the coating material

The syringe holder height can be adjusted and rotated freely along the support rod

Input Voltage

Spin Coater: 24 VDC with 100 - 240 VAC power adapter, 150W

Vacuum Pump: 110VAC or 220VAC please select the voltage in the options bar (10A fuse)

Motor Power

24V DC motor with 150W Max.

Product Dimension

330.2mm(L) x 254mm(W) x 215.9mm(H)

Weight

15 kg


Automatic Digital Spin Coater
