Model: AS-UW-25
Origin: China
Power :1500W
Warranty: 1 year
Description: Ultrasonic welding machine is with semi-auto frequency tracking function, you don't need to setting frequency always, simple operation.
Description:

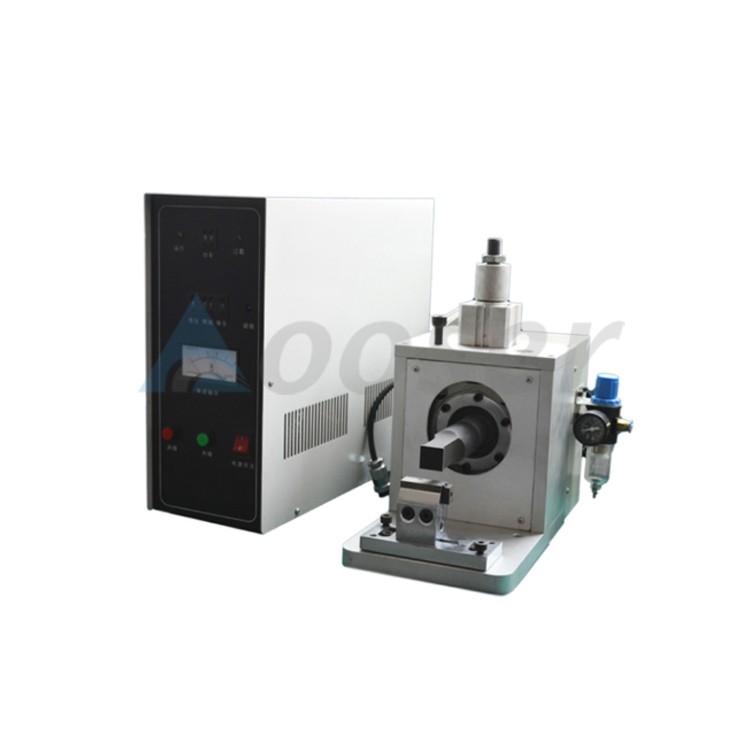

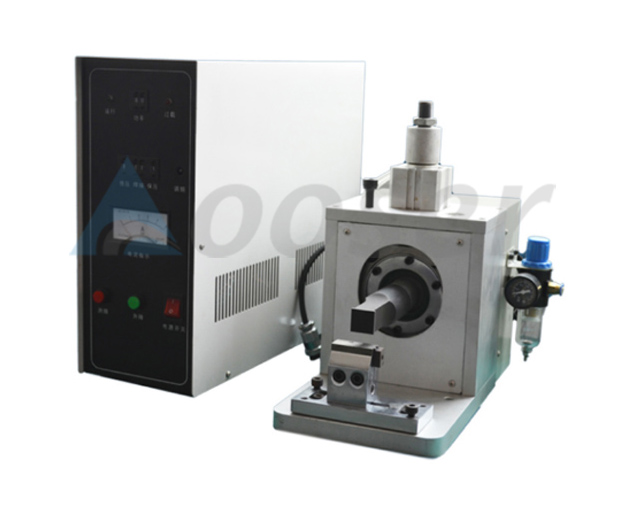

AS-UW-25 Ultrasonic Spot Welding Machine is an ultrasonic metal welder designed for welding Li ion battery cathode electrode sheets aluminum foil and Al tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line.
Specification:
|
Model |
Ultrasonic Spot WelderAOT-VS-25 |
|
Source voltage |
AC220V, 50HZ, can be customized |
|
Power |
1500W |
|
Warranty |
One Year limited warranty with lifetime support |
|
Type |
Ultrasonic spot welding machine |
|
Frequency |
25KHZ |
|
Welding time |
0.05-9.99s |
|
Air supply |
0.2-0.8MPa |
|
Welding effect |
Single layer of Aluminum Foil and aluminum strip welding , aluminum foil and aluminum belt melt, welding firmly |
|
Welding ability |
1 Materials : Battery cathode electrode. (single layer aluminum foil and single piece aluminum strip) 2 Aluminum foil thickness : 10-20um 3 Aluminum strip thickness : 0.08-0.12mm 4 Welding mode : according to your requirements 5 Welding area : can be customized |
|
Dimension (L*W*H) |
Power box : 400*170*300mm Welding machine : 300*200*270mm |
