  • Vacuum Compact Tube Furnace with the Temperature up to 1800C
Vacuum Compact Tube Furnace with the Temperature up to 1800C

Vacuum Compact Tube Furnace with the Temperature up to 1800C

Model: AS-TF-1800C

Max. working temperature: 1800 Degree

Constant working temperature: 1750 Degree

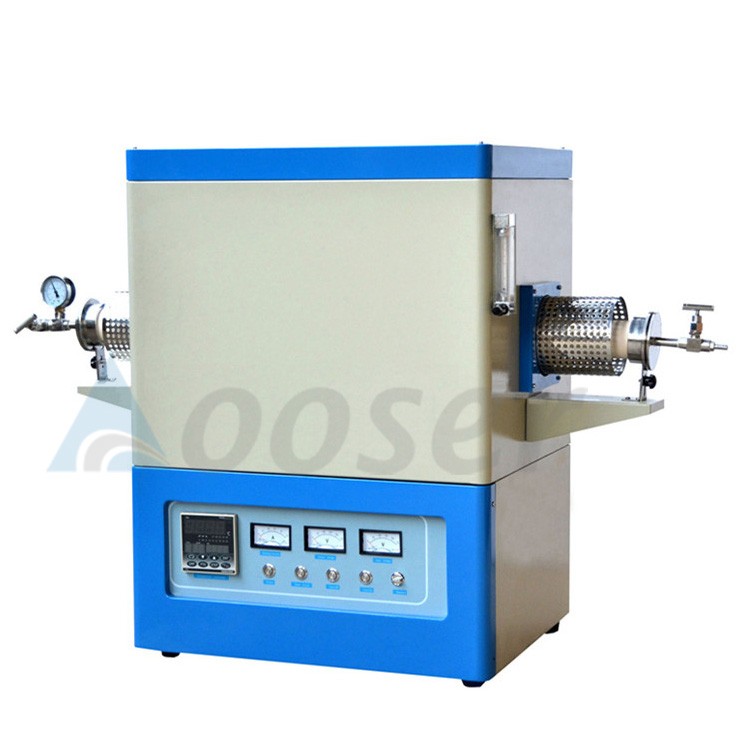

1800C Vacuum Compact Tube Furnace

The AS-VF-1800C tube furnace feature is made of Mitsubishi (Japan) high quality 1900 grade alumina fiber insulation and the famous Kanthal (Sweden) 1900 grade molybdenum silicide heating elements.The double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation of the furnace body is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adapter, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results. All our furnaces are CE compliant.

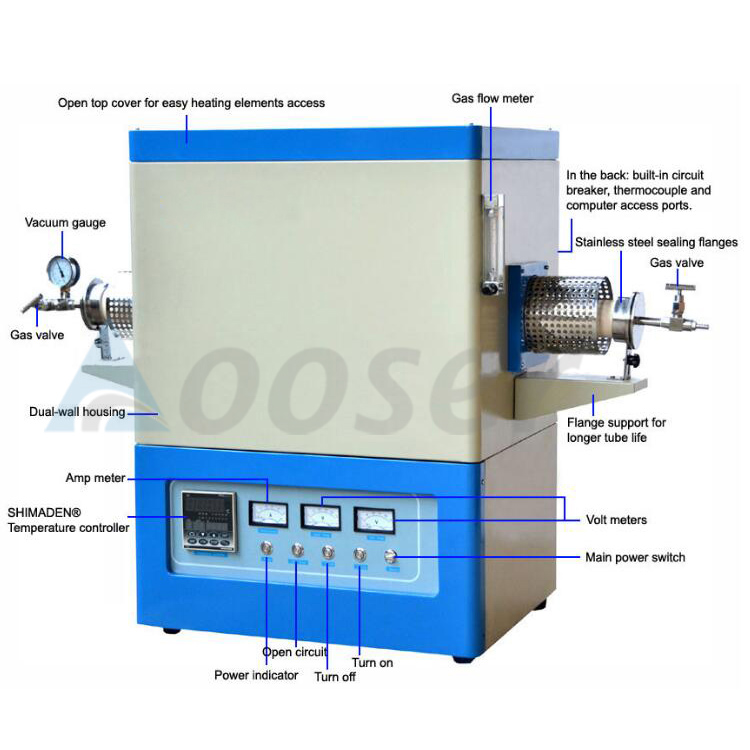

1.Compact, portable and lightweight design.

2.Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

3.Dual flanges support ensures better sealing and longer tube life.

4.Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

5.Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

6.Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

7.Built-in computer interface.

8 .Long life type B thermocouple.


1.Overheating protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

2.Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.


Electrical requirements

110-240VAC, 50/60 Hz, single phase

Tube material

High purity (99%) Al2O3 alumina

Minimum working temperature

300°C (572°F)

Max. working temperature

1800°C (3272°F) for less than 5 hours

Constant working temperature

1750°C (3182°F)

Rated vacuum pressure

0.001 Pa / 0.0075 millitorr / 0.00001 mbar

Rated positive pressure

0.02 MPa / 150 torr / 3 psi

Refractory lining

Mitsubishi (Japan) high quality 1900 grade fiber alumina

Heating element type

Kanthal (Sweden) 1900 grade Molybdenum Silicide (MoSi2)

Thermocouple type


Temperature controller

Shimaden fp93 (Japan) with 4 programs and
40 segments (i.e. 4 x 10 segments or 2 x 20 segments).

Max heating & cooling rate

5°C/min above 1200°C and 10°C/min below 1200°C (2192°F)

Heating/constant zone length

11" / 4"

Temperature controller precision

+/- 1°C

Vacuum sealing flange kit

Stainless steel vacuum sealing flanges with one
vacuum gauge, two valves and four thermal ceramic blocks.

CE compliance


80mm OD furnace detail specs:

Tube size

80mmOD x 1m L

Installed heating element


Maximum output

5.5 KW

Furnace dimensions (LxWxH)

25 x 19 x 27"

Shipping dimensions (LxWxH)

47 x 35 x 39"

Shipping weight (Lb)

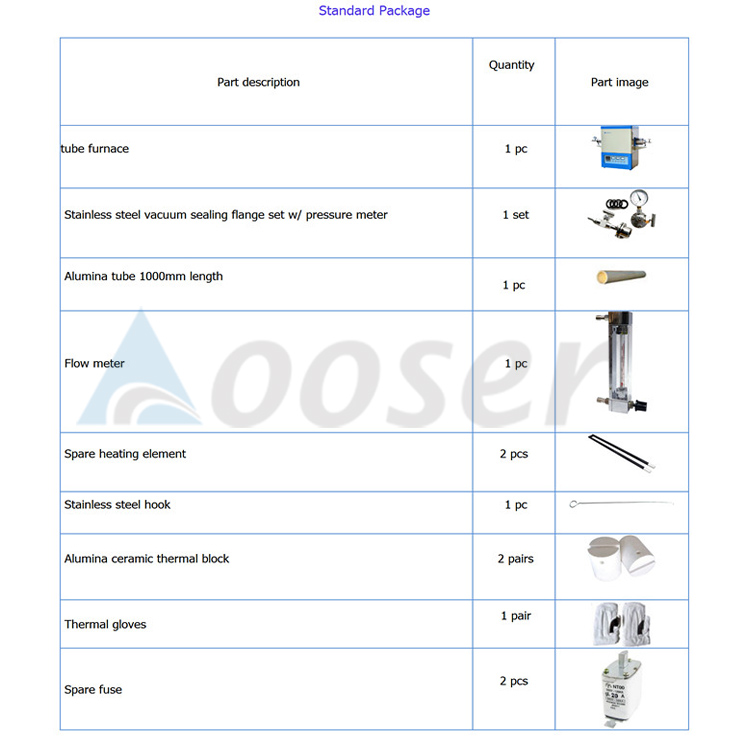

 1800C Tube furnace standard package

 1800 Tube furnace
