Bench-Top Semi-Automatic Screen Printing Film Coater with Vacuum Chuck

Bench-Top Semi-Automatic Screen Printing Film Coater with Vacuum Chuck

Model:AS-EQ-SPC-3050

Product Origin:China

Product Description:AS-EQ-SPC-3050 precision screen printer, pneumatic constant pressure squeegee system, 280x350mm effective printing area, vacuum suction cup compatible with 80mm substrate, special equipment for flexible battery electrode and OLED patterning coating, support digital counting and dual operation mode.

Product Description

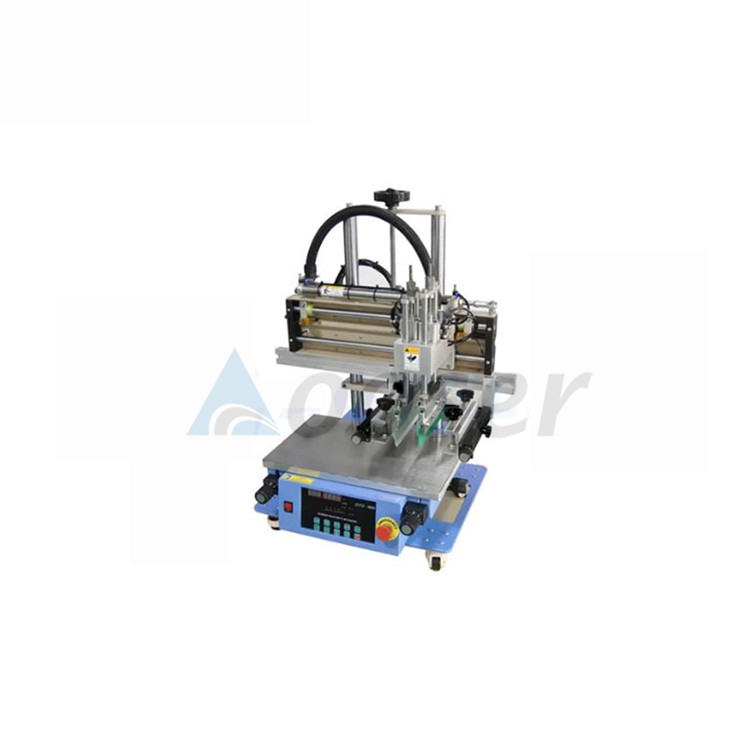

AS-EQ-SPC-3050 is a bench-top precision screen printing machine driven by compressed gas with a coating area of 300 mm x 500 mm. It is a cost-effective tool for making various film coating with patterns and can be used for making flexible rechargeable battery electrodes, OLED, or thermoelectric devices.

Parameter

Product Model	AS-EQ-SPC-3050
Features	Two types of operation mode: foot pedal and automatic Digital display to count printing number Vacuum chuck for holding the printing sheet faster and easier The printing knife is driven b compressed gas with constant pressure to ensure repeatable quality printing Printing length, width, and blade angle are adjustable for quality printing
Working Voltage	208 - 240V Single Phase, 50/60Hz For 110V, a 100W Transformer can be purchased separately

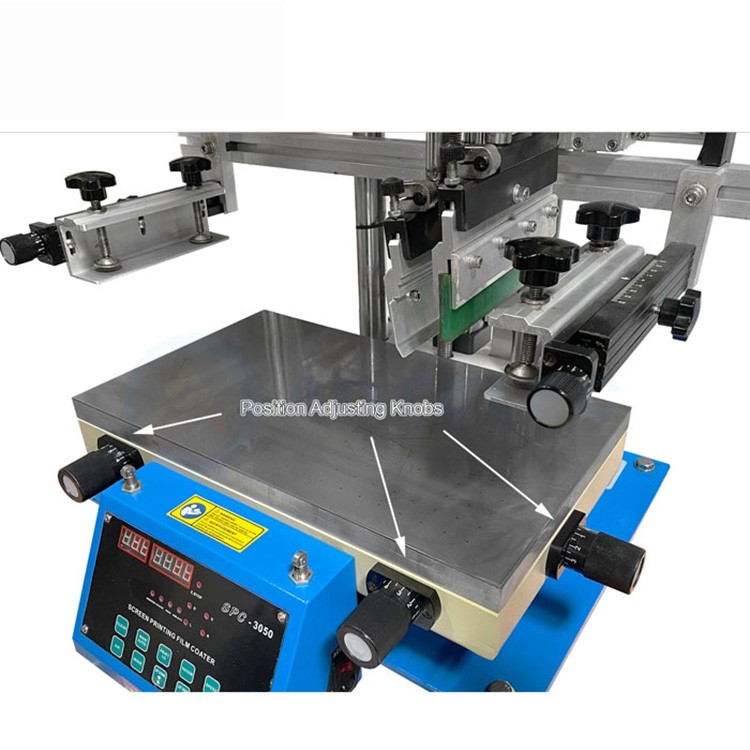

Substrate Holder	A substrate is held by the vacuum chuck with an area of 300 x 500 mm The vacuum pump is built into the bottom of the machine Effective printing area: 280 x 350 mm Max. Substrate thickness: 0 - 80 mm adjustable The position of the vacuum chuck can be fine adjusted with the knobs. Position adjusting range: X-axis: 10mm to the left and 10mm to the right, total of 20mm Y-axis: 8mm to the front and 8mm to the back, total of 16mm

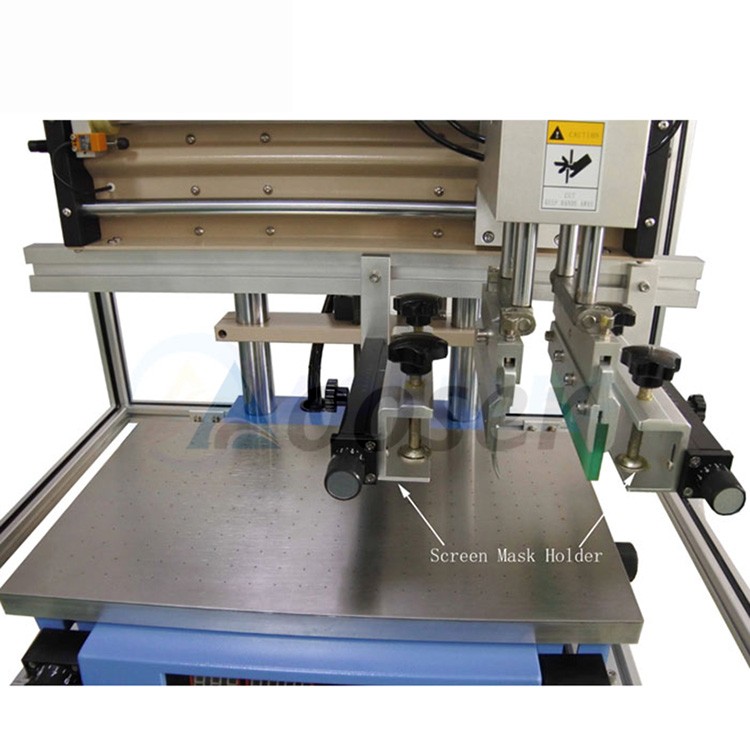

Screen Mask Holder	Holds Screen Mask within the below range: Length: 300 - 600mm Width: 200 - 350mm The Y-axis position is adjustable via a lead screw. Adjustable range: 30mm inward and 30mm outward, a total of 60mm.

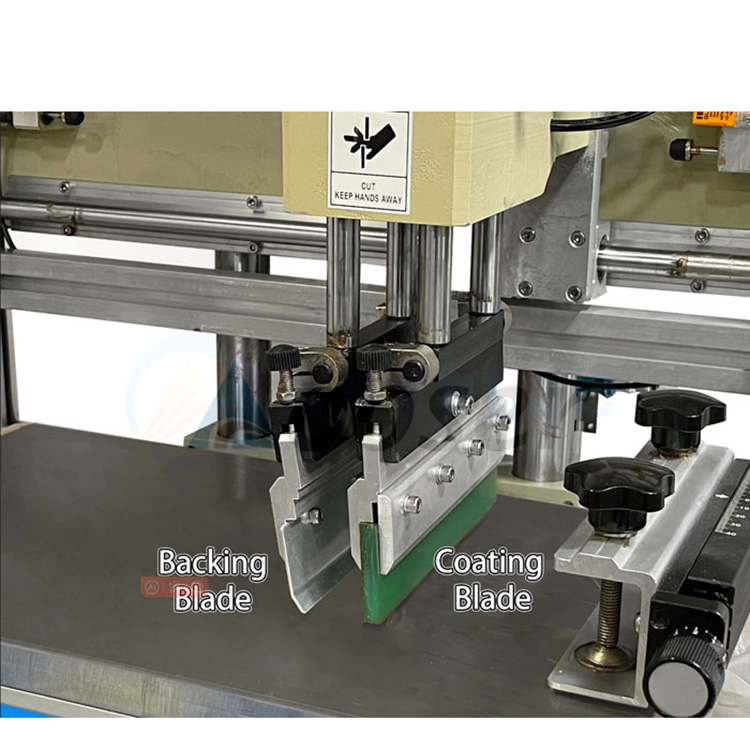

Coating Blade	Two Squeegee Holders are included with a coating width of 170mm and 250mm. Two Squeegee with a width of 170mm and 250mm are also included for immediate use. The backing blade is used for returning the printing material to achieve automatic continuous printing.

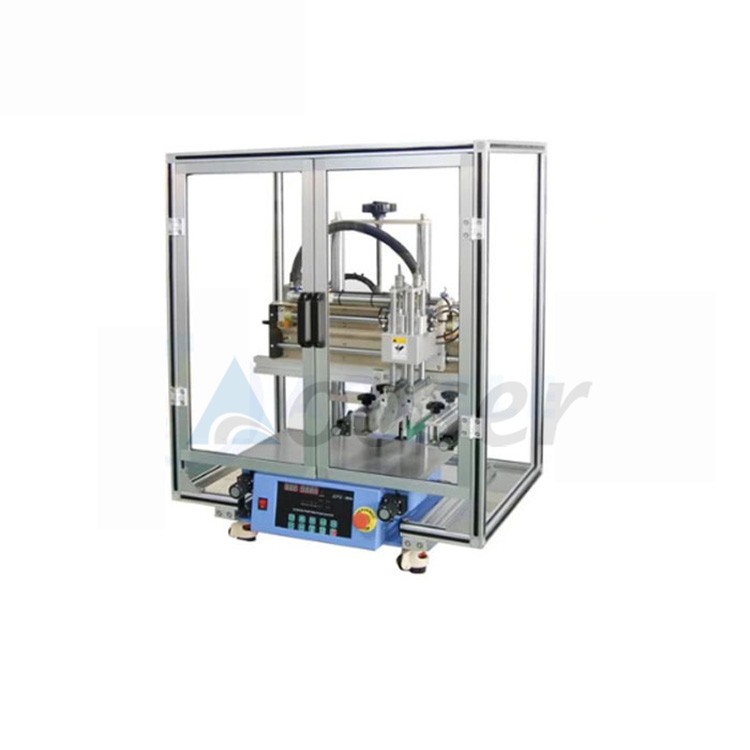

Dimension	With Protective Shield: 840L × 600W × 1070H (mm) Without Protective Shield: 750L × 500W × 900H (mm)
Net Weight	90 kg
