Cold Rolling Press machine for Battery Lab Equipment

Cold Rolling Press machine for Battery Lab Equipment

Product Name:Cold Rolling Press machine

Model:AOT-MSK-2150-H5

Product Origin:China

Product description:Pressure-Control Cold Rolling Press machine is an ideal rolling press with adjustable pressure for battery electrode calendaring and improving electrode density.

Product Description

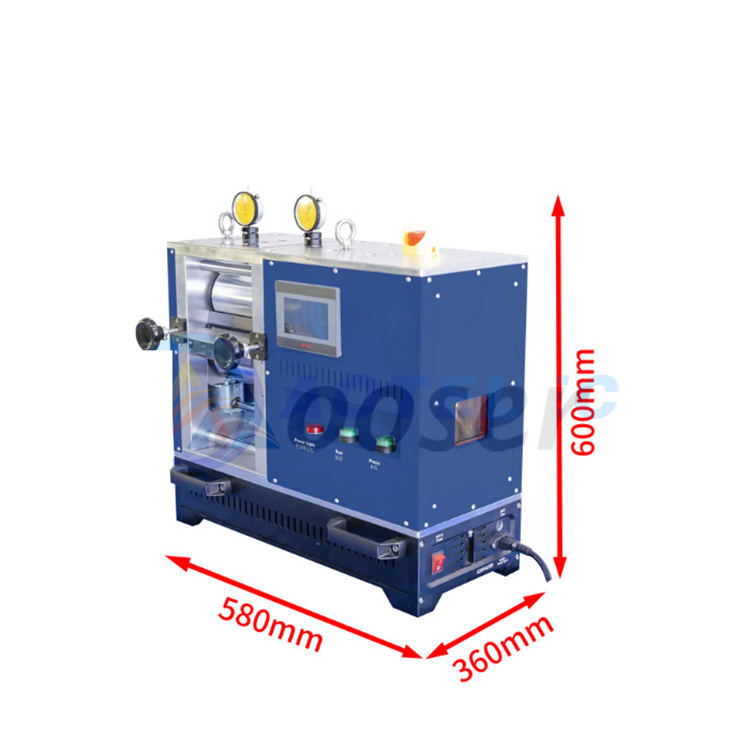

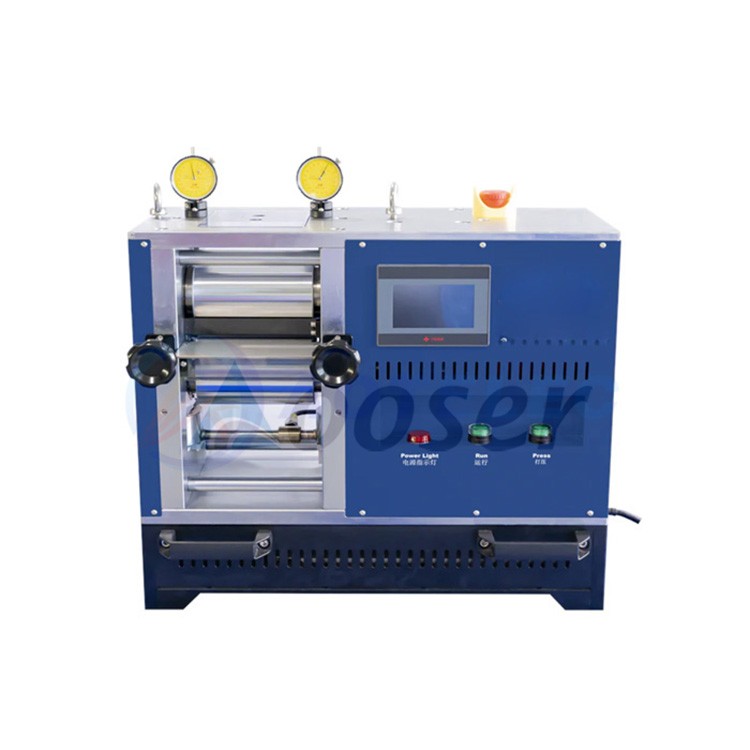

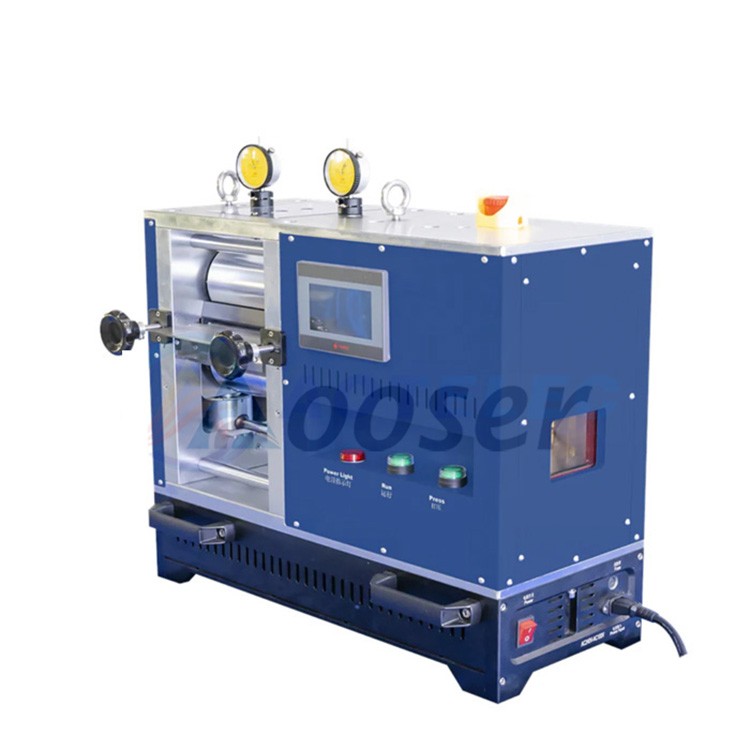

The AS-MSK-2150-H5 cold rolling mill is a lab - scale machine for precision battery electrode rolling. It has a 5 - ton adjustable pressure system and 0.1 - 2.5m/min stepless speed regulate. Using hardened chromium - plated steel rolls (HRC58 - 60, Φ100×150mm), it controls thickness with ±1.5μm precision. The dual digital micrometers allow 0 - 2.5mm gap adjustment, suitable for continuous rolling of 140mm - wide electrode foils, enhancing electrode density uniformity. A 750W frequency - conversion motor with single - phase 220V power meets flexible production needs from labs to pilot lines. It includes a high - precision thickness - measuring module (CR2032 - powered, 0.01mm resolution) and optionally offers a roll - to - roll system for continuous production. Certified with CE/ROHS/CCC and a 1 - year warranty, it's a great choice for lithium - battery R&D and solid - state battery electrode optimization.

Product model	AS-MSK-2150-H5
Features	1.Loading force up to 5T adjustable by touchscreen control 2.Rolling speed adjustable in the range of 0.1-2.5 m/min 3.Roller size: 150mm width x 100 mm Dia, made of hardened steel (RC: 58 - 60) with Cr electroplated coating 4.Dual micrometer for accurate thickness adjustment in the range 0 - 2.5 mm
Working Voltage	AC110-220V,single phase,50/60Hz, 1000W
Rolling Accuracy	± 1.5 μm
Rolling Motor	750W reduced AC motor with frequency speed controller
Surface Hardness of Rollers	1.HRC 58 - 60 2.Never roll materials with hardness > 50 HRC 3.Sample width max 140 mm 4.Note: The benchtop rolling press is not suitable for calendering thick metals. For applications with such needs, please consult with MTI engineers
Digital Micrometer	1.Range: 0 - 10mm 2.Resolution: 0.01mm (or 0.001in) 3.Unit interchangeable (mm / in) 4.Zeroing 5.Power supply: CR2032 3V Li-ion battery 6.Operating temperature: 0 ~ 40°C

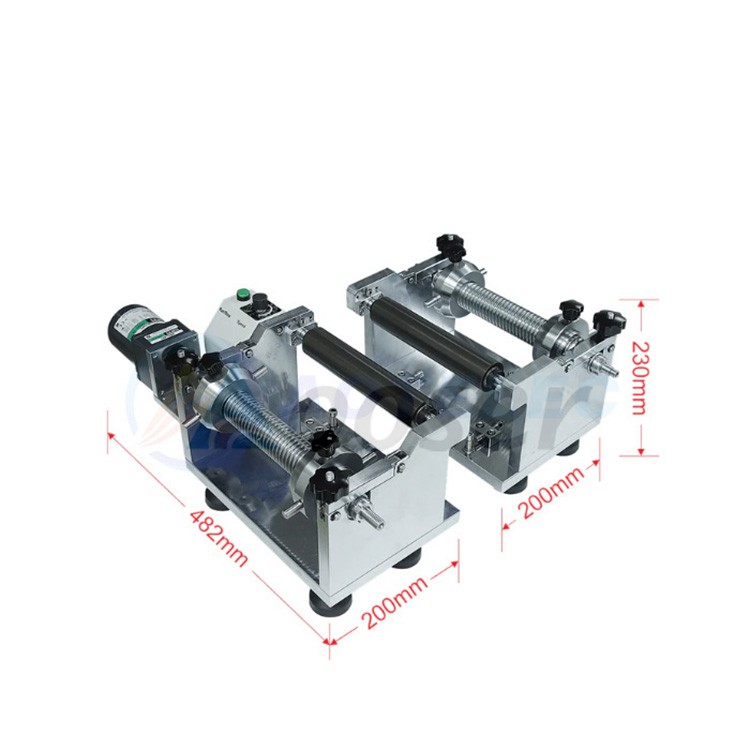

Roll to Roll System	1.Roll to Roll function is available by combining a roll-to-roll 2.208 - 240 VAC, 50/60Hz, Single Phase 3.220V AC Power plug is not included.
