100T Max Pressure Controlled Rolling Press for electrode sheet rolling press

Model:AS-MSK-DPC-B320

Product Origin:China

Product Description: AS-MSK-DPC-B320 high-precision roll press, 100 tons of pressure ± 0.0025mm thickness control, 350mm wide electrode 6m/min roll pressure, HRC65 roll surface Ra <0.4, integrated cleaning and dust removal function, special equipment for continuous production of power battery electrode.

Product Description

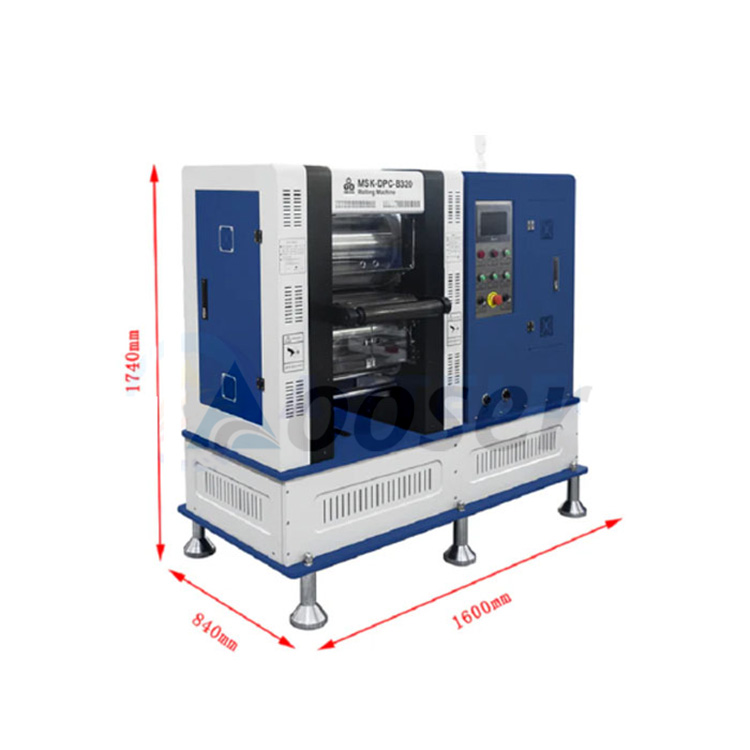

AS-MSK-DPC-B320 is an automatic roll-to-roll calendering press system with precision digital pressure control for battery electrode production.
It has 370 mm width and 320 diameter high strength alloy rollers and can produce electrodes up to 350 mm width at 6 m/min max speed and the rolling force of 100 metric tons.

Product Model	AS-MSK-DPC-B320
Working Voltage	AC 220V or 380V 50/60 Hz Three Phase Max. Power Consumption: 6 KW
Rollers (one pair)	Dimensions: 320mm Diameter x 370mm Width Material: Hardening Tool Steel 9Cr3Mo with HRC 65 - 70 Hardening material layer thickness: 10 mm Effective Rolling Width: ≤ 350 mm Max. Diameter of delivering and winding: 320 mm Max. Force: 100 T
Press gap	0 - 2 mm adjustable Tolerance: 0.001 mm
Rolling Speed	0.3 - 6 Meter / Minute adjustable by Touch Screen Control Panel
Press Flatness	Thickness Accuracy: ± 0.0025mm Surface Roughness: < Ra 0.4
Pressure Control	Pressure load: 1 - 100 Tons adjustable by Touch Screen Control Panel Real - time pressure display with data saved function
Accessories Included	Rolling to Roller cleaning function is built - in Edge cutting device included Dust Removing device installed Roller installation and unload cart included

Rolling Press
