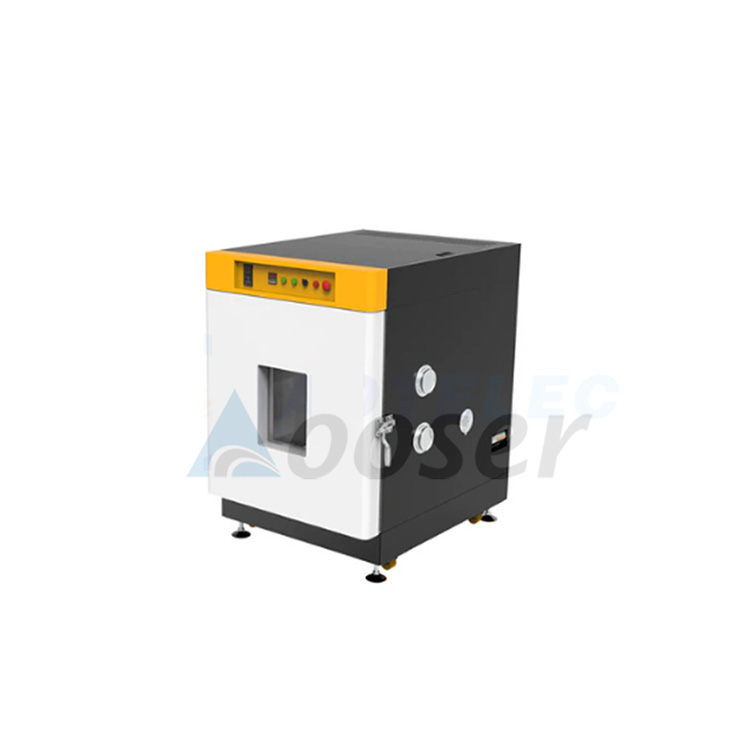

Large Capacity High Temperature Chamber for Laboratory Environment Simulation

Model:AS-MGW-1000

Product Origin:China

Product Description: AS-MGW-1000 high-temperature test chamber, 1000L large-capacity battery environmental testing, ±1℃ temperature control accuracy, 150℃ high temperature compatible with in-situ electrochemical testing, double-layer airflow optimization bracket, support for soft pack and button cell extreme temperature range performance verification, provide multi-capacity customized solutions.

Product Description

AS-MGW-1000 high temperature chamber is designed for lab scale environment test on coin cell and pouch cells. It can heat up to 150℃. The cells are organized over two shelves that maximizes airflow and constant temperature conditions. The predrilled cable ports enable the in situ electrochemical performance measurements during the environmental test. It is compatible with battery tester for in situ battery performance test.

Other optional chamber capacity is 100L, 150L, 225L, 408L and 800L. Please contact AOT Supplies for a quote if you need other chamber capacity.

Features:

Large Capacity: 1000L
Temperature Fluctuation: ≤1℃
Temperature Range: 15℃~150℃
Temperature Deviation: ±2.0℃

Specifications:

Neware Model	MGW-1000
Power	AC 380 ± 10 % three phase five wires(L1+L2+L3+N+E)
Power Consumption	8kW
Capacity	1000L
Shelf Layer	2
Outer Dimensions	1250x1700x1650mm
Inner Dimensions	1000x1000x1000mm
Cable Port	4 (2 on each side)
Weight	400kg
Temperature Range	(Room temperature +15℃)～150℃
Temperature Fluctuation	≤1℃
Temperature Deviation	±2.0℃
Heating Time	15℃→150℃ ≤40 min
Warranty	Limited 1 year warranty. Lifetime technical support.

Company Profile

Xiamen AS battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AS Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
